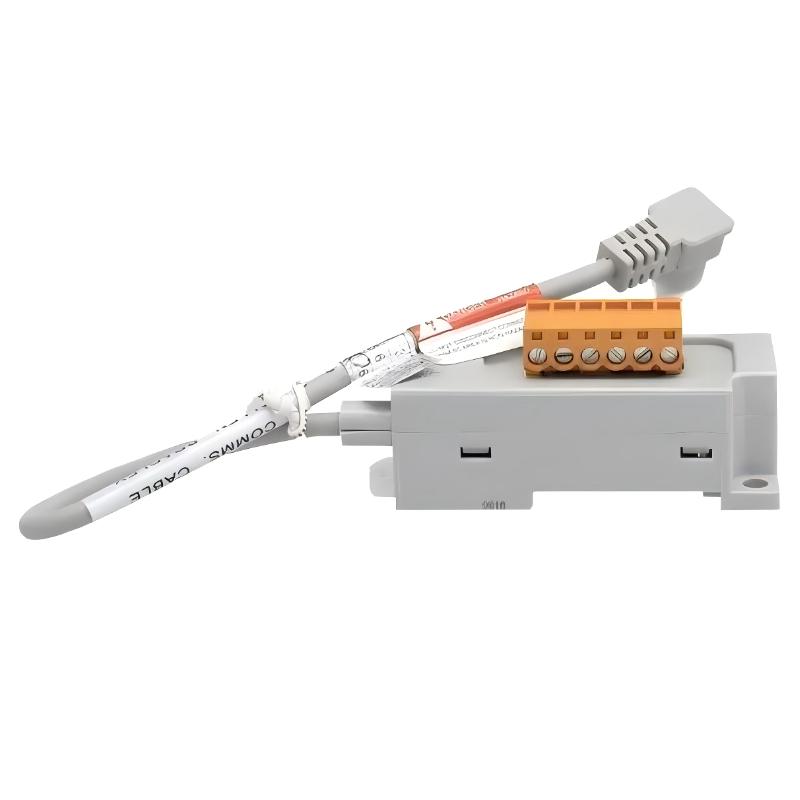

Allen Bradley 1763-NC01 DH-485 Communication Cable
Allen Bradley 1763-NC01 DH-485 Communication Cable
0.0
Points
Brand:Allen Bradley PLC Item No.:1763-NC01 Product Origin:USA Product Dimensions:Cable Length: 0.3 meter Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1763-NC01 DH-485 Communication Cable provides a reliable, industrial-grade connection for MicroLogix PLCs and DH-485 networks. Its compact design, robust construction, and plug-and-play capability make it essential for programming, diagnostics, and communication in industrial automation systems.
Technical Specifications
Parameter
Specification
Cable Length
0.3 meter
Shipping Weight
3 kg / 6.614 lb
Communication Protocol
DH-485
Compatible Devices
MicroLogix PLCs, Allen Bradley Controllers
Applications
Programming, Diagnostics, Industrial Communication
Construction
Shielded, industrial-grade cable
Mounting/Use
Direct connection to PLC and DH-485 network
Function
Communication Cable
Applications
The Allen Bradley 1763-NC01 DH-485 Communication Cable is designed to connect MicroLogix and other Allen Bradley PLCs to DH-485 networks. It enables reliable data exchange between controllers, programming devices, and other networked devices.
Ideal for programming, diagnostics, and small-scale industrial network communications where a secure, short-distance connection is required.
Advantages
Reliable Data Transfer: Ensures stable communication between controllers and DH-485 networks.
Compact and Easy to Handle: 0.3 meter cable length; 3 kg / 6.614 lb shipping weight, ideal for close-proximity connections.
Plug-and-Play Design: Simple connection to Allen Bradley MicroLogix PLCs without configuration.
Durable Construction: Industrial-grade cable ensures consistent performance and longevity.
Supports Diagnostics and Programming: Enables programming, monitoring, and troubleshooting on connected devices.
Technical FAQs
What devices is the 1763-NC01 compatible with?
Designed for MicroLogix PLCs and other Allen Bradley controllers using DH-485 communication.
What type of communication does it support?
DH-485 industrial serial communication protocol.
Can it be used for programming PLCs?
Yes, supports programming, diagnostics, and monitoring via RSLogix software.
What is the maximum recommended cable length?
Typically short distances are preferred for reliable DH-485 communication; use repeaters for longer networks.
Is the cable shielded?
Yes, industrial-grade shielding reduces electrical interference.
Does it require drivers to operate?
No additional drivers are required; standard RSLogix software supports the cable.
Can multiple cables be daisy-chained?
DH-485 supports multi-drop networks, so multiple devices can be connected in series.
Is it suitable for industrial environments?
Yes, designed to withstand electrical noise and moderate mechanical stress.
Does it support firmware updates?
Yes, allows programming and firmware updates for compatible devices.
Is the cable hot-swappable?
Yes, the cable can be connected or disconnected while the system is powered, following proper DH-485 procedures.
