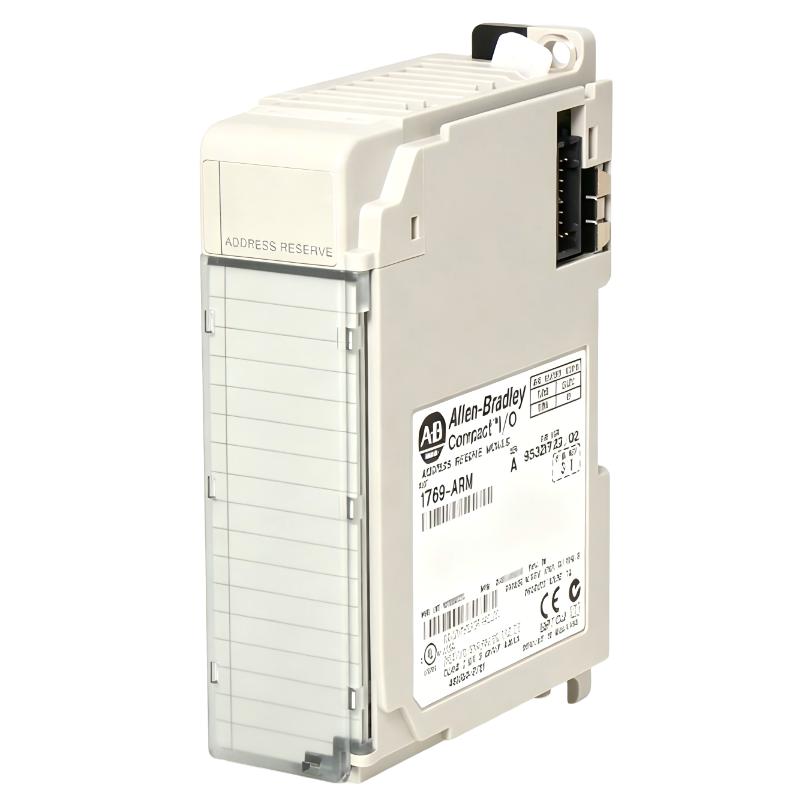

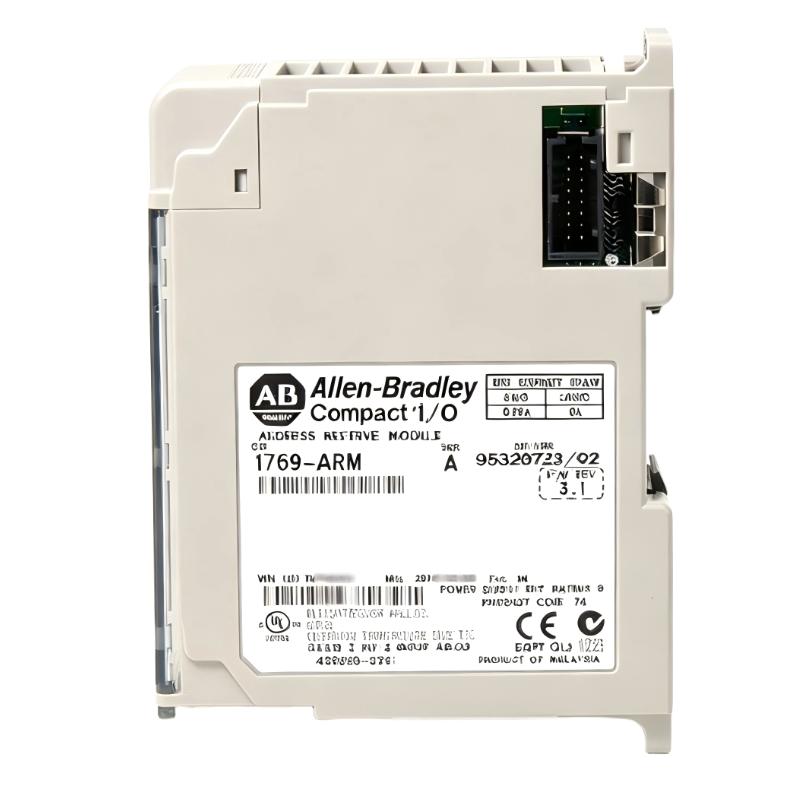

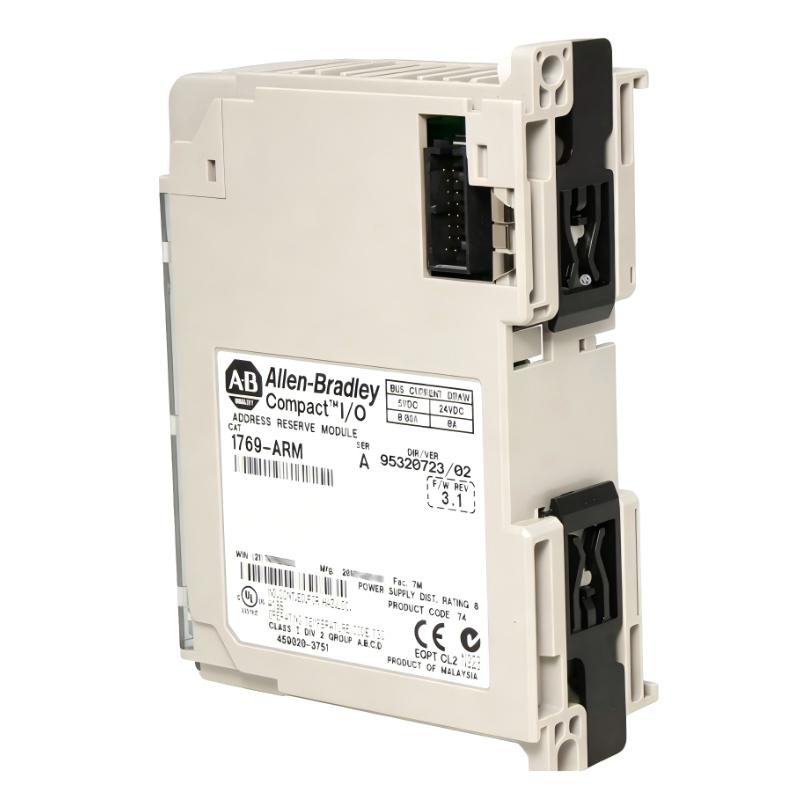

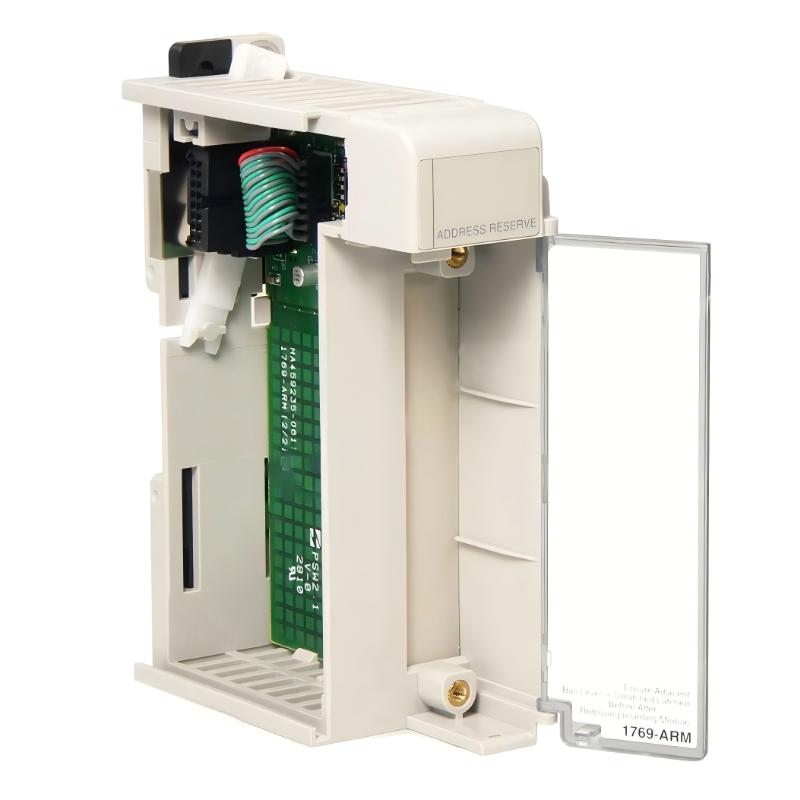

Allen Bradley 1769-ARM CompactLogix Address Preservation Module
Allen Bradley 1769-ARM CompactLogix Address Preservation Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-ARM Product Origin:USA Product Dimensions:118 x 35 x 87 mm Product Weight:0.28 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-ARM CompactLogix Address Preservation Module provides reliable retention of I/O addresses and module configuration during power interruptions. Its compact design, industrial-grade reliability, and seamless integration ensure fast recovery and uninterrupted operation in automated systems.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
118 × 35 × 87 mm
Weight
0.28 kg / 0.617 lb
Controller Compatibility
CompactLogix Series
Function
Address Preservation Module
Applications
Machine Control, Process Automation, CompactLogix Systems
Mounting Options
Backplane Mounting
Memory Type
Non-Volatile Memory
Downtime Prevention
Retains I/O addresses during power loss
Applications
The Allen Bradley 1769-ARM is a CompactLogix Address Preservation Module designed to maintain I/O addresses during power interruptions or module replacements. It ensures system continuity and reduces downtime by preserving critical configuration data.
Ideal for CompactLogix systems in manufacturing automation, process control, and machine monitoring where rapid recovery and consistent operation are essential.
Advantages
Non-Volatile Memory Preservation: Retains I/O addresses and configuration during power loss.
Compact and Lightweight: 118 × 35 × 87 mm; 0.28 kg / 0.617 lb, conserving panel space.
Seamless Integration: Compatible with CompactLogix controllers for efficient system recovery.
Industrial Reliability: Designed to withstand vibration, electrical noise, and environmental variations.
Minimized Downtime: Ensures rapid system recovery after module replacement or power interruption.
Technical FAQs
What is the primary function of the 1769-ARM?
Preserves CompactLogix I/O addresses and module configuration during power interruptions.
Is it compatible with all CompactLogix controllers?
Fully compatible with standard CompactLogix series controllers.
Does it require batteries for memory retention?
No batteries are required; it uses non-volatile memory.
Can it handle multiple I/O modules?
Yes, it preserves configuration for multiple I/O modules within the CompactLogix system.
Is it suitable for high-vibration industrial environments?
Yes, designed for typical industrial conditions, including vibration and electrical noise.
How is it mounted in the system?
Directly mounts onto the CompactLogix backplane.
Does it support hot-swapping?
Yes, it supports safe replacement in accordance with CompactLogix procedures.
How quickly can the system recover addresses after power loss?
Recovery is instantaneous upon power restoration or module replacement.
Can multiple ARM modules be used in the same system?
Yes, multiple ARM modules can protect different I/O branches.
Does it require software configuration?
Minimal configuration is needed; the module is recognized automatically by the controller.
