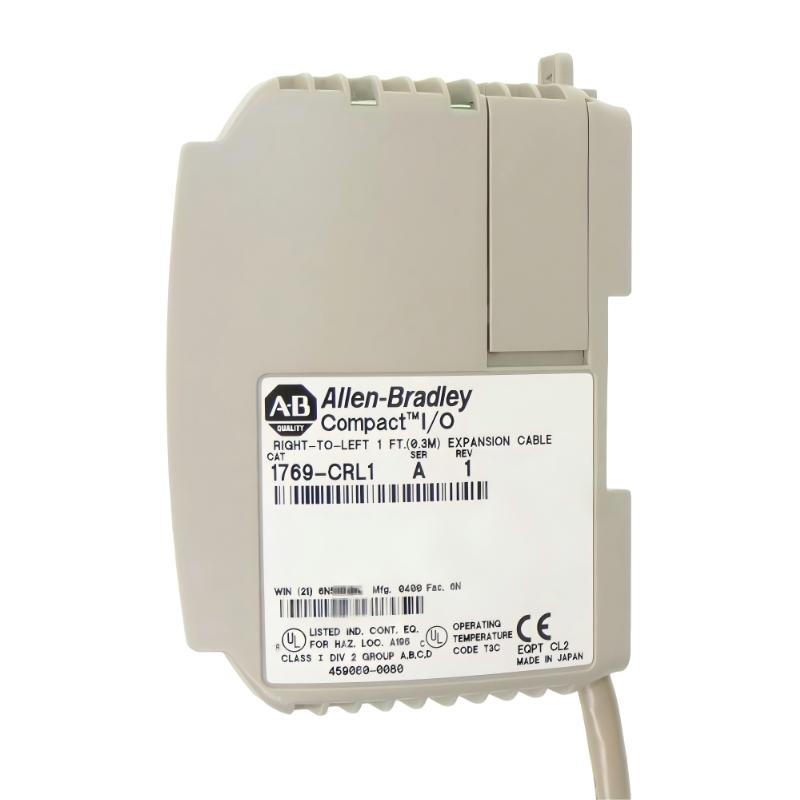

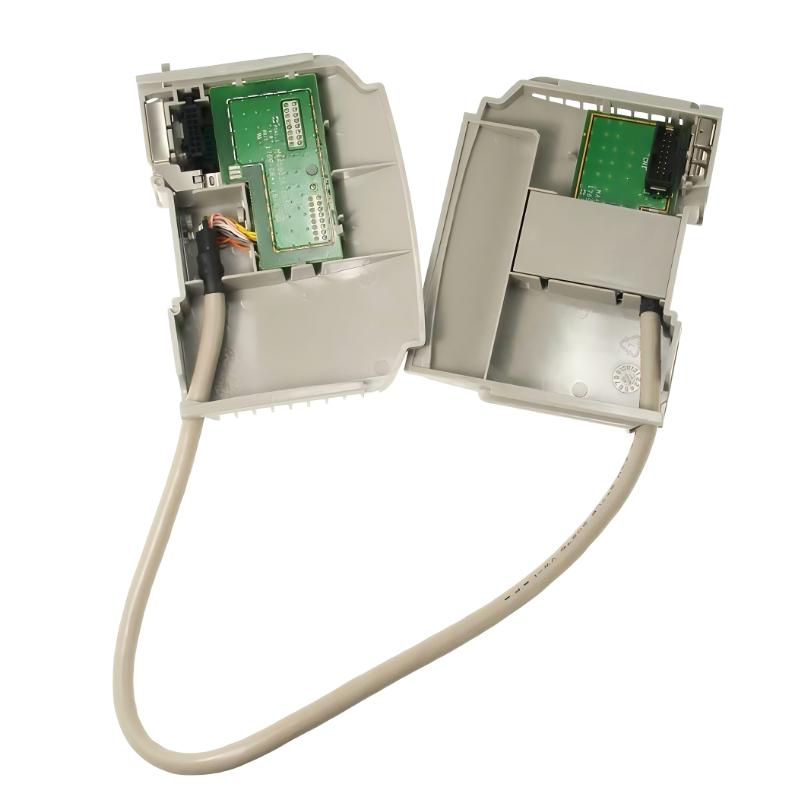

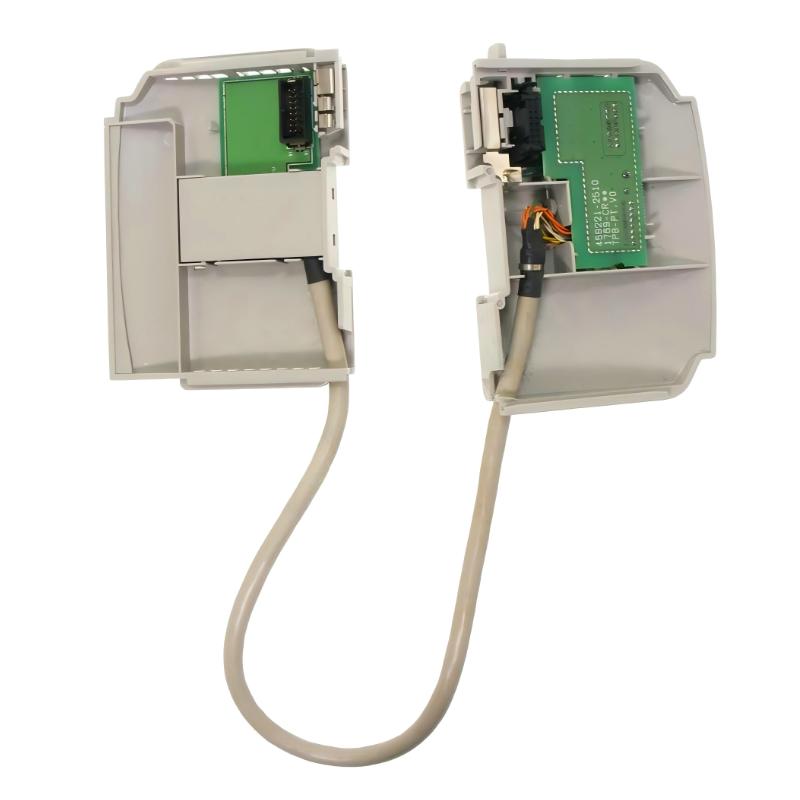

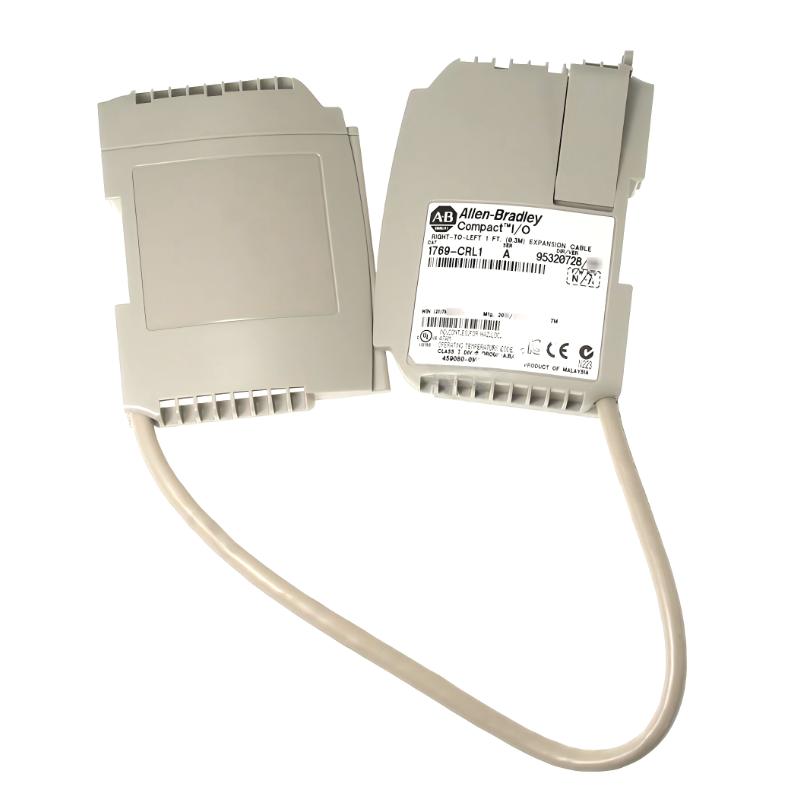

Allen Bradley 1769-CRL1 CompactLogix Compact I/O Right-to-left Bus Extension Cable
Allen Bradley 1769-CRL1 CompactLogix Compact I/O Right-to-left Bus Extension Cable
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-CRL1 Product Origin:USA Product Dimensions:Cable Length: 1 feet Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-CRL1 Compact I/O Right-to-Left Bus Extension Cable provides a reliable, industrial-grade solution for expanding CompactLogix systems. Its compact size, plug-and-play design, and robust construction make it essential for efficient I/O module configuration in automated environments.
Technical Specifications
Parameter
Specification
Cable Length
1 foot (0.3048 meters)
Weight
0.3 kg / 0.661 lb
Function
Right-to-Left Bus Extension Cable
Compatible Modules
CompactLogix Compact I/O Modules
Applications
Modular Automation, Machine Control, Process Systems
Construction
Industrial-grade, shielded cable
Installation Orientation
Right-to-Left bus expansion
Hot-Swap Support
Yes
Applications
The Allen Bradley 1769-CRL1 Right-to-Left Bus Extension Cable is designed to expand CompactLogix Compact I/O modules in a right-to-left configuration. It enables seamless connectivity between I/O modules for flexible system layouts and efficient panel integration.
Ideal for manufacturing automation, modular machine control, and process systems where precise I/O placement and reliable communication between modules are critical.
Advantages
Flexible System Expansion: Enables right-to-left I/O module extension for adaptable system design.
Compact and Lightweight: 1-foot cable; 0.3 kg / 0.661 lb, minimizing panel space requirements.
Reliable Industrial Connectivity: Maintains stable communication between connected CompactLogix I/O modules.
Plug-and-Play Design: No special configuration required; modules are automatically recognized.
Durable Construction: Industrial-grade cable built to withstand electrical noise, vibration, and repeated use.
Technical FAQs
What is the main purpose of the 1769-CRL1 cable?
Provides right-to-left bus extension for CompactLogix Compact I/O modules.
What is the cable length?
1 foot (0.3048 meters).
Is it compatible with all CompactLogix I/O modules?
Compatible with standard Compact I/O modules that support right-to-left bus extension.
Can multiple cables be used together?
Yes, multiple cables can extend additional modules along the bus.
Does it require software configuration?
No software configuration is needed; modules auto-recognize when connected.
Is the cable shielded?
Yes, industrial shielding ensures stable signal integrity.
Can it be used in harsh industrial environments?
Yes, designed for vibration, electrical noise, and moderate temperature variations.
Is the connection hot-swappable?
Yes, modules can be added or removed according to CompactLogix hot-swap procedures.
Does it support high-speed I/O communication?
Yes, designed to maintain reliable communication across Compact I/O modules.
What is the recommended installation orientation?
Use the right-to-left orientation as specified for proper bus extension.
