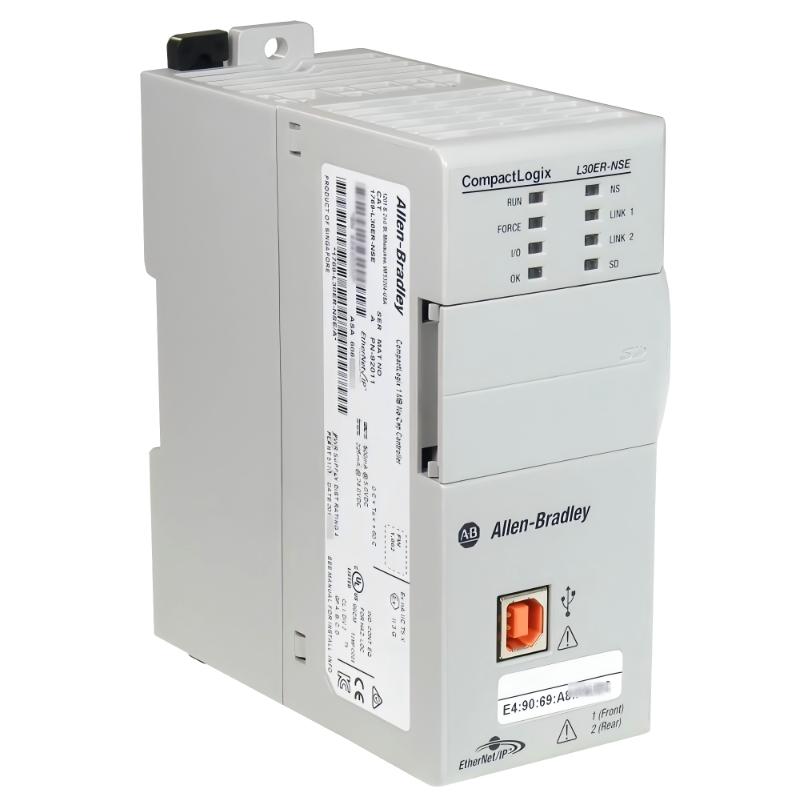

Allen Bradley 1769-L30ER-NSE CompactLogix 5370 L3 Ethernet Controller
Allen Bradley 1769-L30ER-NSE CompactLogix 5370 L3 Ethernet Controller
0.0
Points
Brand:Allen Bradley PLC Item No.:1769-L30ER-NSE Product Origin:USA Product Dimensions:132 x 55 x 105 mm Product Weight:0.31 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1769-L30ER-NSE CompactLogix 5370 L3 Ethernet Controller delivers a balance of compact size, industrial reliability, and high-performance control. Its integrated Ethernet capability, seamless software integration, and support for modular I/O make it perfect for modern automation applications requiring scalable, networked control.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
132 × 55 × 105 mm
Weight
0.31 kg / 0.683 lb
Controller Type
CompactLogix 5370 L3 Ethernet Controller
I/O Module Support
Up to 16 Compact I/O Modules
Programming Software
Studio 5000 Logix Designer
Communication
EtherNet/IP
Mounting Options
Panel Mount or DIN-Rail
Industrial Rating
Electrical noise and vibration resistant
Diagnostics
LEDs and software-based diagnostics
Applications
The Allen Bradley 1769-L30ER-NSE CompactLogix 5370 L3 Ethernet Controller is designed for small- to medium-scale industrial automation systems. It provides high-speed control, real-time Ethernet communication, and robust data handling for machinery, process automation, and networked control systems.
Ideal for standalone machines, compact automation cells, and modular systems requiring fast, reliable Ethernet connectivity and advanced PLC capabilities.
Advantages
High-Speed Ethernet Connectivity: Integrated Ethernet port enables fast communication for real-time control and remote monitoring.
Compact and Lightweight: 132 × 55 × 105 mm; 0.31 kg / 0.683 lb, ideal for tight enclosures and compact panels.
Advanced Control Performance: L3 controller supports logic, motion, and communication tasks efficiently.
Seamless Integration: Works with CompactLogix 5370 series modules for scalable and flexible automation solutions.
Industrial-Grade Reliability: Built for electrical noise immunity, vibration resistance, and harsh factory conditions.
Technical FAQs
What is the primary function of the 1769-L30ER-NSE?
Provides high-performance PLC control with integrated Ethernet for CompactLogix systems.
How many I/O modules can it support?
Supports up to 16 Compact I/O modules per local chassis, depending on configuration.
Does it support remote Ethernet communication?
Yes, integrated EtherNet/IP port enables communication with remote devices and HMIs.
Is it compatible with Logix Designer software?
Yes, fully supported in Studio 5000 Logix Designer for programming and configuration.
Can it handle motion control applications?
Yes, capable of managing logic and motion control tasks efficiently.
Does it provide diagnostic feedback?
Yes, includes status LEDs and software diagnostics for troubleshooting and monitoring.
Is it suitable for industrial environments?
Yes, designed to handle electrical noise, vibration, and temperature variations.
Can it be mounted in tight control panels?
Yes, compact dimensions make it ideal for small enclosures.
Does it support firmware upgrades?
Yes, firmware can be updated via Studio 5000 software.
Is hot-swapping of modules supported?
Supports safe replacement of CompactLogix I/O modules following proper procedures.
