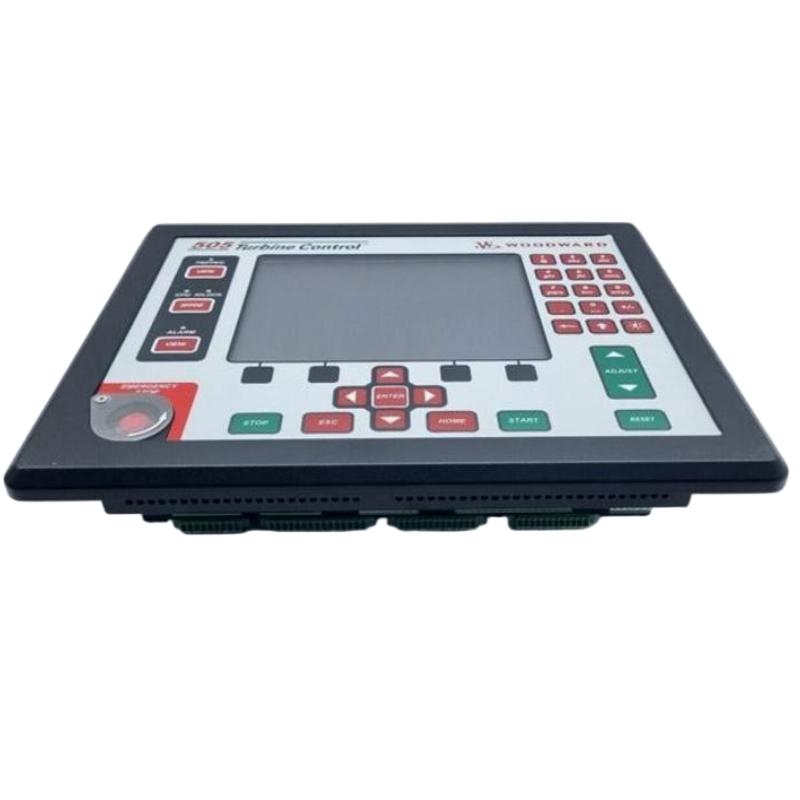

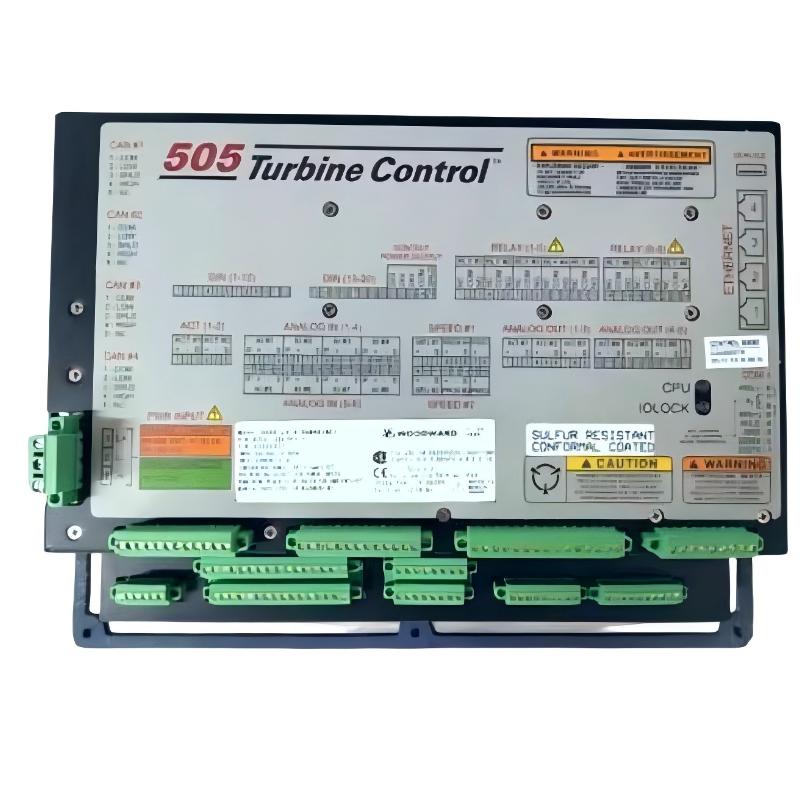

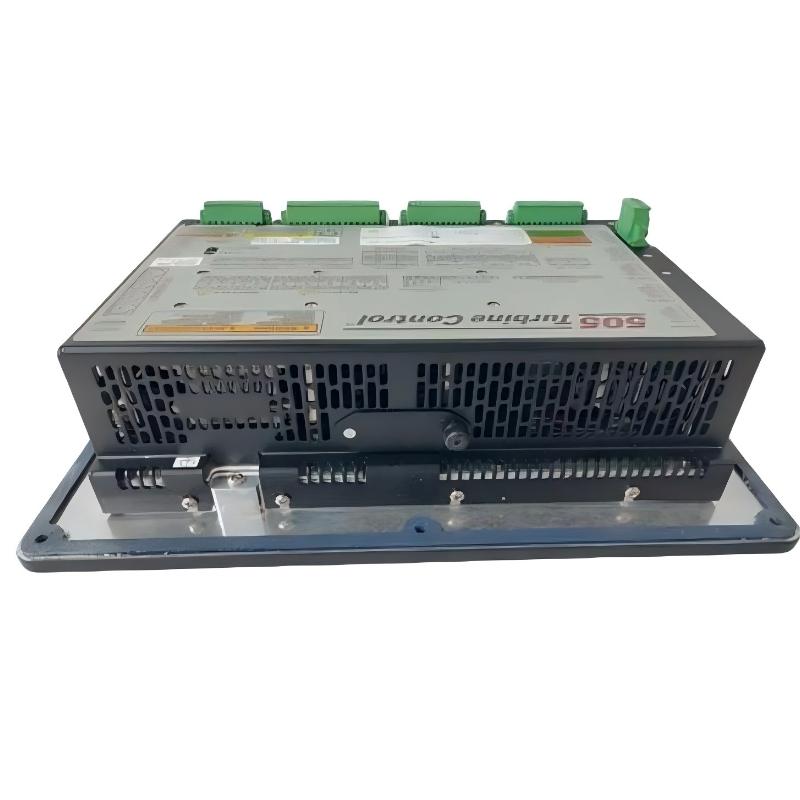

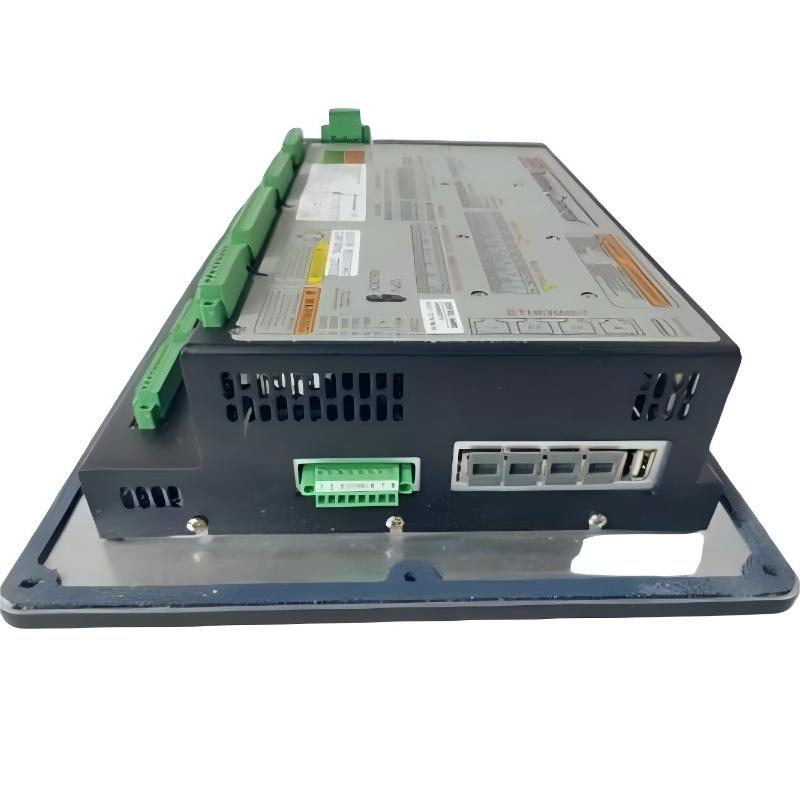

Name: Woodward 8200-1300 Digital Steam Turbine Controller
Brand: Woodward
SKU: 9424
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 8200-1300 Digital Steam Turbine Controller delivers precise, reliable, and flexible control for modern steam turbine applications. Engineered for industrial and utility environments, it integrates advanced digital control logic, user-friendly HMI, and robust communication interfaces. By enabling real-time monitoring, protection, and automated load management, the controller maximizes turbine efficiency while minimizing operational risk.

Technical Specifications

Specification	Details
Module Type	Digital Steam Turbine Controller
Control Capability	Speed, load, temperature, and pressure regulation
Communication	EtherNet/IP, Modbus TCP/RTU, Profibus, Woodward Remote I/O
I/O Support	Digital and analog I/O for sensors and actuators
Diagnostic Features	Event logging, alarm reporting, fault codes
Redundancy Support	Dual power inputs and redundant I/O capability
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Mounting	Panel or cabinet installation
Dimensions (H × W × D)	280 × 327 × 127 mm (11 × 12.9 × 5 in)
Weight	6.3 kg (13.9 lbs)

Applications

The Woodward 8200-1300 Digital Steam Turbine Controller is designed for precise and reliable control of steam turbines in power generation and industrial applications. Its advanced digital architecture ensures safe, stable, and efficient turbine operation. Typical applications include:

Steam turbine control in thermal power plants.
Industrial cogeneration systems requiring load-following control.
Process-driven steam turbines in refineries and chemical plants.
Integration with supervisory control and data acquisition (SCADA) systems.
Combined-cycle power systems with multi-unit coordination.

The controller can interface with a wide range of sensors, actuators, and I/O modules to provide comprehensive monitoring, protection, and automated control functions.

Advantages

High Precision Control: Optimized algorithms for speed, load, and temperature regulation.
Robust Digital Architecture: Reduces response time while enhancing system reliability.
Extensive Diagnostics: Built-in logging, alarms, and event tracking simplify troubleshooting.
Flexible Integration: Compatible with multiple communication protocols, I/O modules, and remote monitoring systems.
User-Friendly Interface: Intuitive HMI and configurable display parameters for operators.

Technical FAQs

Can it operate multiple turbines in parallel?
Yes, the controller supports coordinated control of multiple turbines with load-sharing logic.
Which communication protocols are supported?
EtherNet/IP, Modbus TCP/RTU, Profibus, and proprietary Woodward I/O networks.
Does it provide overload and safety protection?
Yes, includes over-speed, over-temperature, and load-limiting protective logic.
Is it suitable for retrofitting older turbine models?
Yes, configurable I/O mapping allows integration with legacy sensors and actuators.
Can parameters be tuned remotely?
Yes, through secure network access and HMI tools.
What is the response time for turbine speed changes?
Closed-loop control response is typically under 50 milliseconds.
Does it log operational data?
Yes, the controller maintains a timestamped event and performance log accessible via HMI or SCADA.
How does it handle power interruptions?
Equipped with a non-volatile memory to retain critical parameters and system state.
Is it compatible with redundant power configurations?
Yes, dual power inputs can be configured for uninterrupted operation.
What maintenance features are included?
Self-diagnostics, status LEDs, and fault codes simplify preventive and corrective maintenance.
