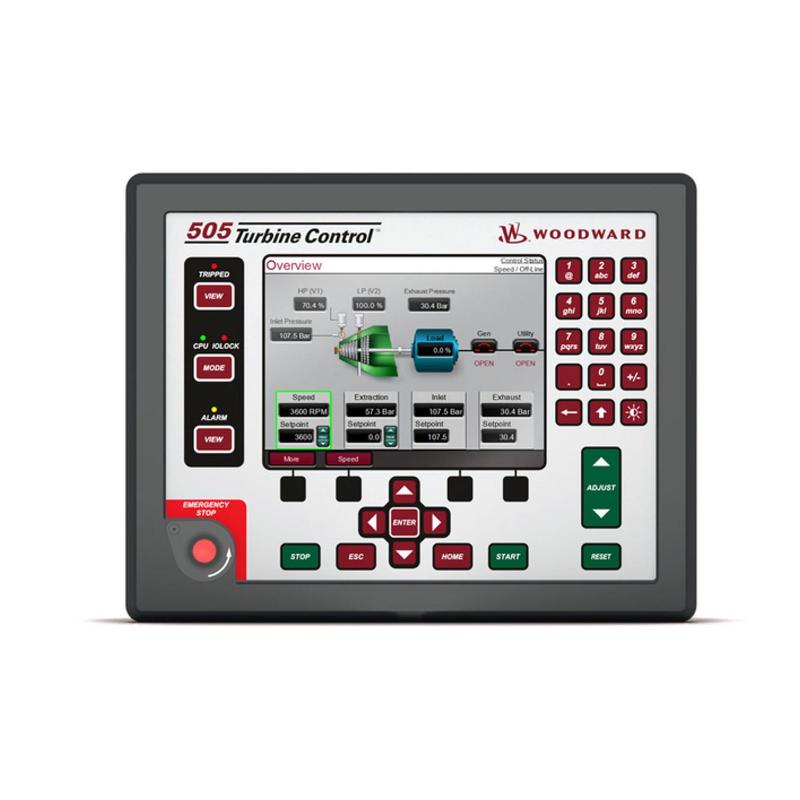

Woodward 8200-1311 505XT Series High-Pressure (HV-STD) Turbine Controller

Applications

The Woodward 8200-1311 505XT Series High-Pressure (HV-STD) Turbine Controller is engineered for precise control of high-pressure steam turbines in demanding industrial and power generation environments. Its digital control logic ensures operational safety, efficiency, and load-following accuracy. Typical applications include:

• High-pressure steam turbine control in fossil-fueled and combined-cycle power plants.
• Industrial cogeneration systems requiring precise load and speed regulation.
• Critical process industries where high-pressure steam is used for production or heating.
• Turbine retrofits and modernization projects to enhance efficiency and safety.
• Remote and distributed turbine monitoring where compact, robust controllers are required.

Its modular architecture allows seamless integration with Woodward’s I/O modules and supervisory control systems, ensuring reliable turbine performance even in complex multi-unit operations.

Advantages

• High-Precision Control: Advanced digital algorithms provide accurate speed, load, and pressure regulation.
• Robust Design: Engineered to handle high-pressure and high-temperature turbine applications with extended operational life.
• Extensive Diagnostics: Built-in alarm logging, event tracking, and fault detection streamline troubleshooting.
• Flexible Integration: Supports a wide range of communication protocols and modular I/O expansion.
• Compact Form Factor: Smaller footprint allows installation in control panels with space constraints.

Technical FAQs

1. What types of turbines is this controller compatible with?
   Designed for high-pressure steam turbines but can be configured for various industrial turbine models.
2. Which communication protocols does it support?
   EtherNet/IP, Modbus TCP/RTU, and proprietary Woodward I/O networks.
3. Does it provide protective functions?
   Yes, it includes over-speed, over-temperature, load-limit, and emergency shutdown protections.
4. Can it be integrated with SCADA systems?
   Yes, full integration is supported for remote monitoring and data acquisition.
5. What is the maximum I/O capacity?
   Supports up to 16 digital and 8 analog I/O points natively, expandable with additional modules.
6. Is the controller suitable for retrofits?
   Yes, configurable I/O mapping allows integration with legacy sensors and actuators.
7. Does it include local visualization?
   Optional display modules or integration with remote HMI allows operators to monitor turbine parameters locally.
8. How does it handle power interruptions?
   Non-volatile memory retains critical operational parameters, ensuring safe restart after outages.
9. What environmental conditions can it tolerate?
   Designed for industrial environments, with vibration, shock, and temperature tolerances suitable for turbine control rooms.
10. What maintenance support features are included?
    Built-in diagnostics, event logs, LED status indicators, and remote monitoring capabilities simplify preventive and corrective maintenance.
