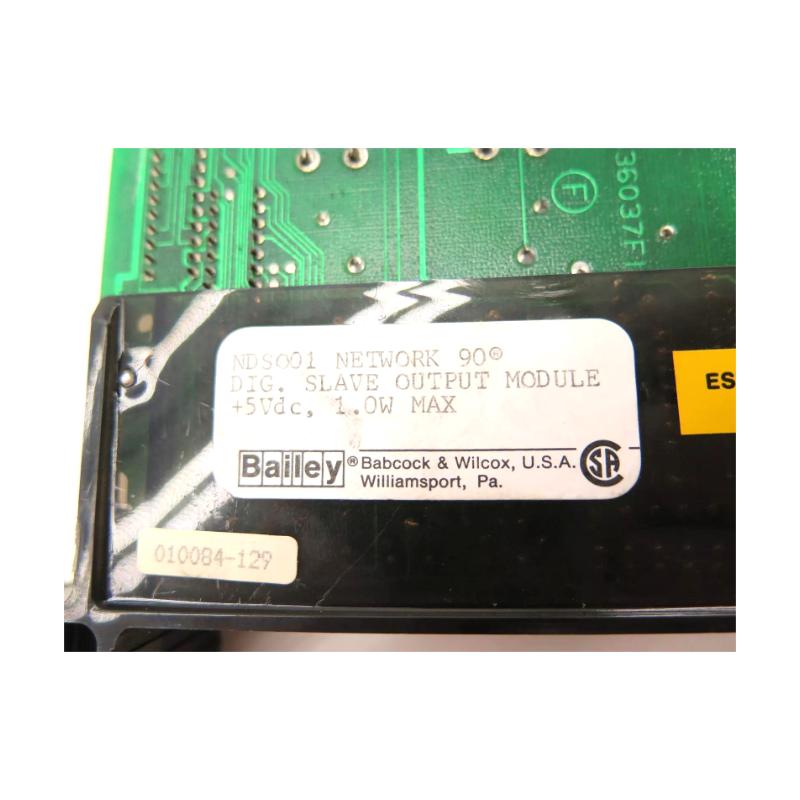

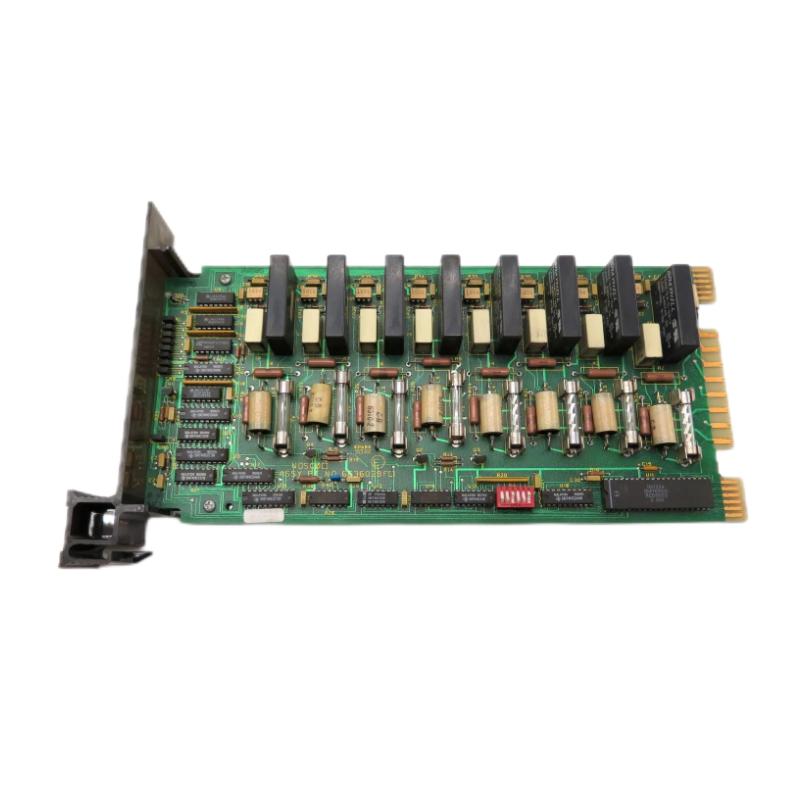

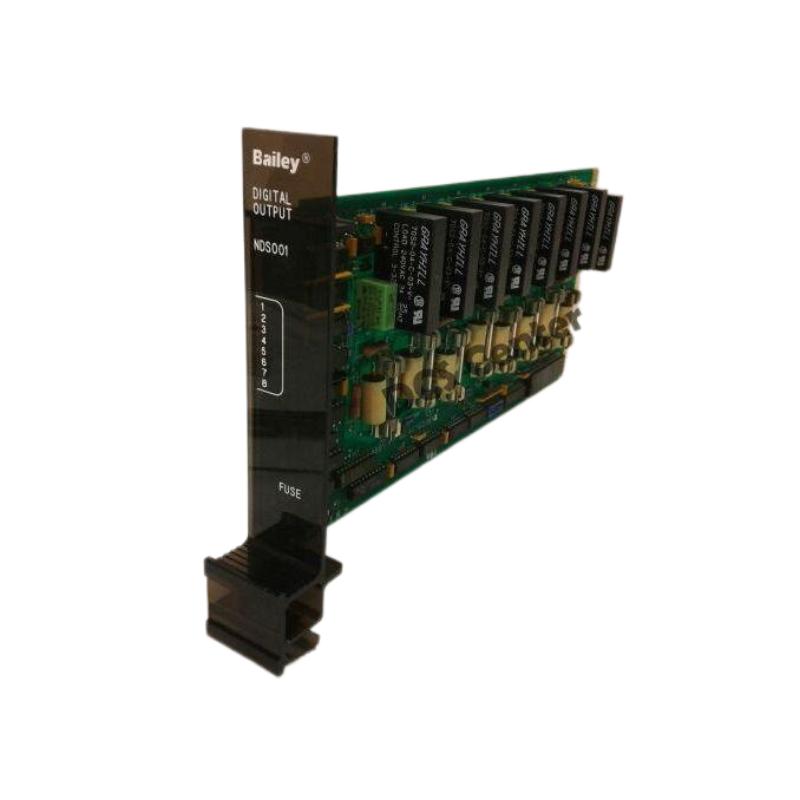

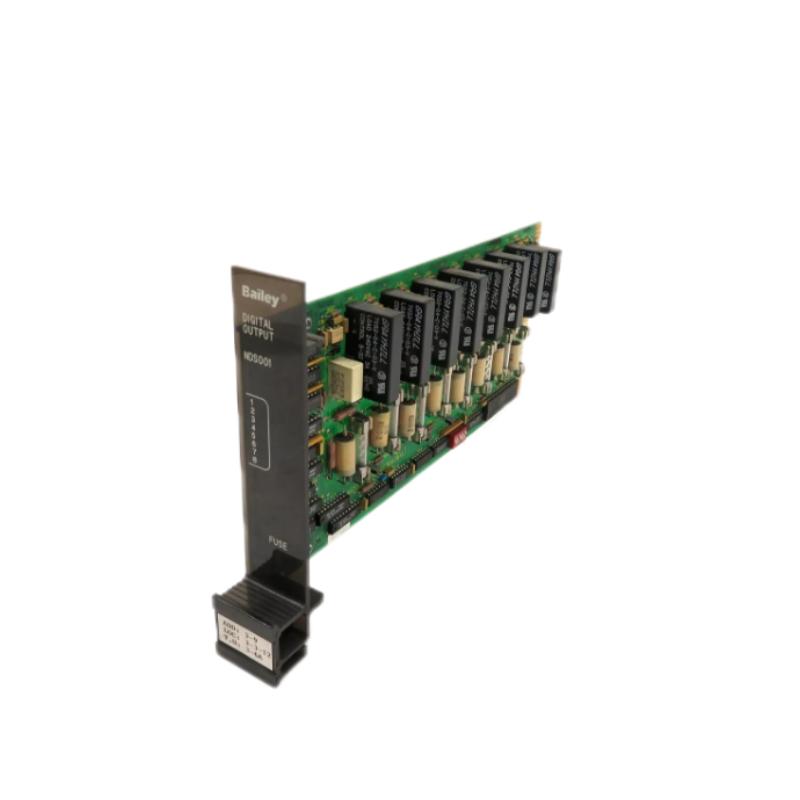

The ABB Bailey NDSO01 Digital Output Module is a dependable and field-tested output interface designed for ABB Bailey INFI 90 Distributed Control Systems. It translates control logic signals into precise field-level digital actions, ensuring smooth execution of commands across industrial automation environments.
Built for long-term industrial reliability, the NDSO01 is widely used in legacy DCS installations where system stability, deterministic output behavior, and minimal downtime are critical. Its rugged design and consistent switching performance make it a trusted component in continuous process industries.
Rather than focusing on complexity, the NDSO01 emphasizes operational certainty—delivering clean, stable output signals even under electrically noisy and high-load industrial conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Digital Output Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Output Channels | 32 digital outputs |
| Output Type | Relay / transistor output (system dependent configuration) |
| Output Voltage | Typically 24V DC |
| Isolation | Channel-to-channel optical isolation |
| Switching Speed | Fast-response industrial switching |
| Mounting Type | Rack / chassis installation |
| Operating Temperature | 0°C to 60°C |
| Humidity | 5%–95% non-condensing |
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 130 mm × 60 mm × 200 mm |
| Weight | 0.35–0.7 kg |
The compact unified form factor allows efficient installation in high-density control cabinets while maintaining thermal stability and easy maintenance access.
Recommended Related Models
To complete a reliable ABB Bailey INFI 90 system, the following modules are commonly paired with the NDSO01:
- ABB Bailey NDSM04 Digital Input Module
- ABB Bailey IMDSO04 Advanced Output Module
- ABB Bailey IMASI23 Analog Input Module
- ABB Bailey IMMFP11 Multi-Function Processor Module
- ABB Bailey INICT03A Network Interface Module
These components collectively support full-cycle industrial automation from input acquisition to output execution and system communication.
Popular ABB Bailey Models
- NDSM03 Digital Input Module
- NDSO02 Enhanced Output Module
- IMDSO04 High-Density Output Module
- IMMFP12 Process Controller Module
- INNIS01 Communication Interface Module
These modules remain widely deployed in legacy industrial systems across global infrastructure sectors.
