Brand:Woodward Item No.:8280-501 Product Origin:USA Product Dimensions:50 x 150 x 120 mm Product Weight:1.81 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

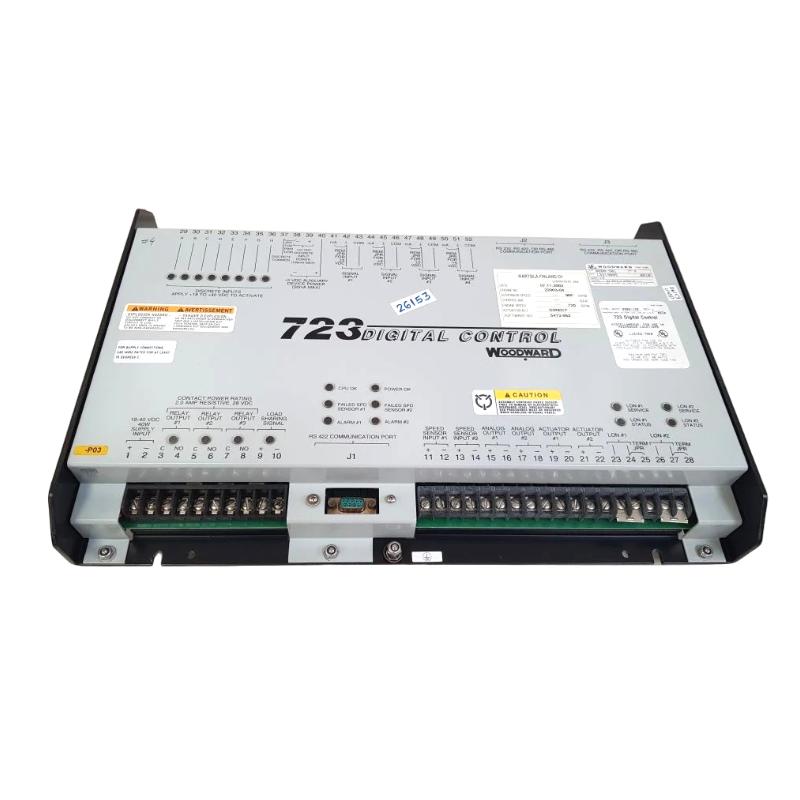

The Woodward 8280-501 Digital Control Module is a high-performance solution for modern turbine and industrial automation systems. Its modular design, real-time digital feedback, and programmable control capabilities allow engineers to implement complex operational strategies while maintaining high reliability and ease of integration. Compact and robust, it is ideal for both new installations and retrofits, providing precise control, system diagnostics, and flexible logic in industrial environments.
Technical Specifications
Specification
Details
Module Type
Digital Control Module
Control Capability
Programmable digital control for turbines, engines, and industrial processes
Input/Output
Configurable digital and analog I/O
Feedback
Real-time operational monitoring and logging
Programming
Woodward configurable logic software
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Mounting
Panel or cabinet installation
Dimensions (H × W × D)
50 × 150 × 120 mm (2 × 5.9 × 4.7 in)
Weight
1.81 kg (3.99 lbs)
Applications
The Woodward 8280-501 Digital Control Module is designed to provide precise, programmable control for turbine, engine, and industrial automation systems. Its versatility and compact form make it suitable for:
Digital control of steam and gas turbines in industrial and power generation applications.
Integration with auxiliary and main turbine systems for load-following and optimization.
Modular distributed control systems requiring flexible I/O mapping.
Industrial processes that demand accurate feedback, real-time monitoring, and automated logic.
Retrofitting or upgrading legacy systems with modern digital control capabilities.
The 8280-501 allows engineers to implement complex control strategies in a compact, reliable package.
Advantages
Compact & Modular: Small form factor allows flexible installation in panels or cabinets.
Programmable Control: Supports configurable logic for multiple operational modes.
Real-Time Feedback: Provides high-speed digital monitoring and event logging.
Reliable Industrial Design: Resistant to vibration, shock, and temperature extremes.
Simplified System Integration: Works seamlessly with Woodward sensors, actuators, and supervisory controllers.
Technical FAQs
Which systems can it control?
Steam and gas turbines, engines, and industrial process equipment.
What type of inputs/outputs does it support?
Supports digital and analog signals, configurable via software.
Can it handle real-time monitoring and diagnostics?
Yes, onboard logging tracks faults, events, and operational parameters.
Is it suitable for modular control architectures?
Yes, designed for integration with distributed I/O and supervisory systems.
What programming options are available?
Configurable logic using Woodward’s control software for custom operational profiles.
Does it support redundancy?
Yes, multiple modules can be configured for redundant operation in critical systems.
What environmental conditions can it tolerate?
Designed for industrial vibration, shock, and temperatures from 0°C to 55°C (32°F to 131°F).
Can it be integrated with SCADA or HMI systems?
Yes, fully compatible with supervisory control and monitoring interfaces.
Is firmware or software upgradable?
Yes, updates can be applied via digital interface to maintain functionality and improve performance.
Does it provide safety or protective features?
Yes, configurable safety interlocks, alarms, and fail-safe logic can be programmed.
