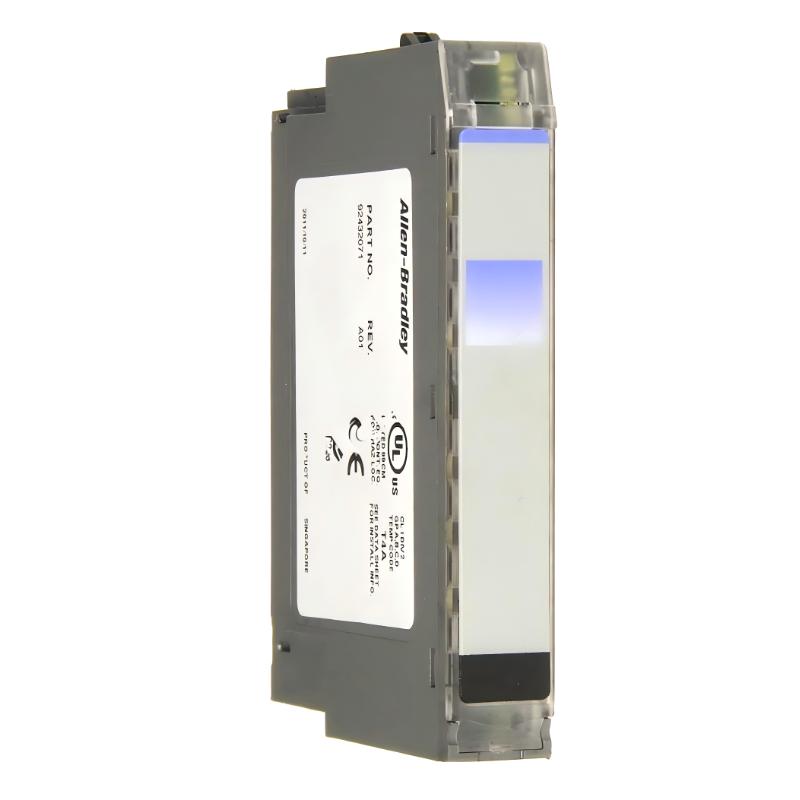

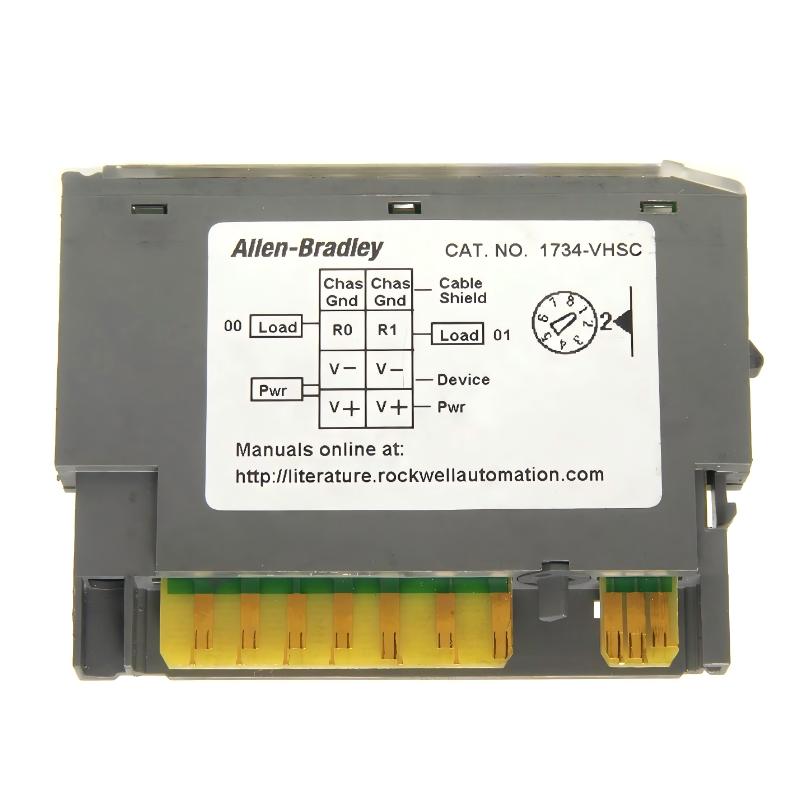

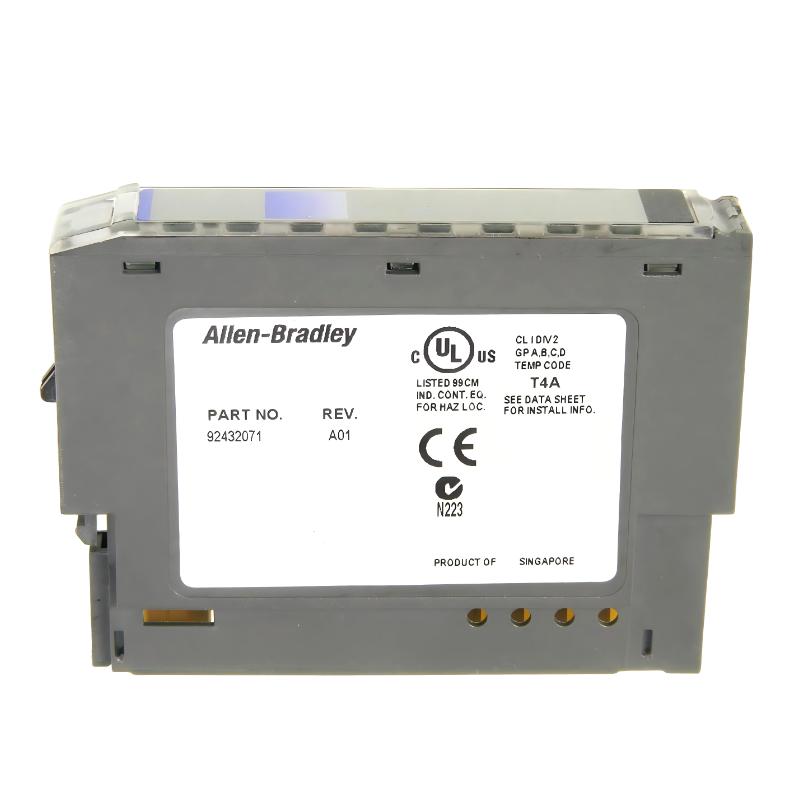

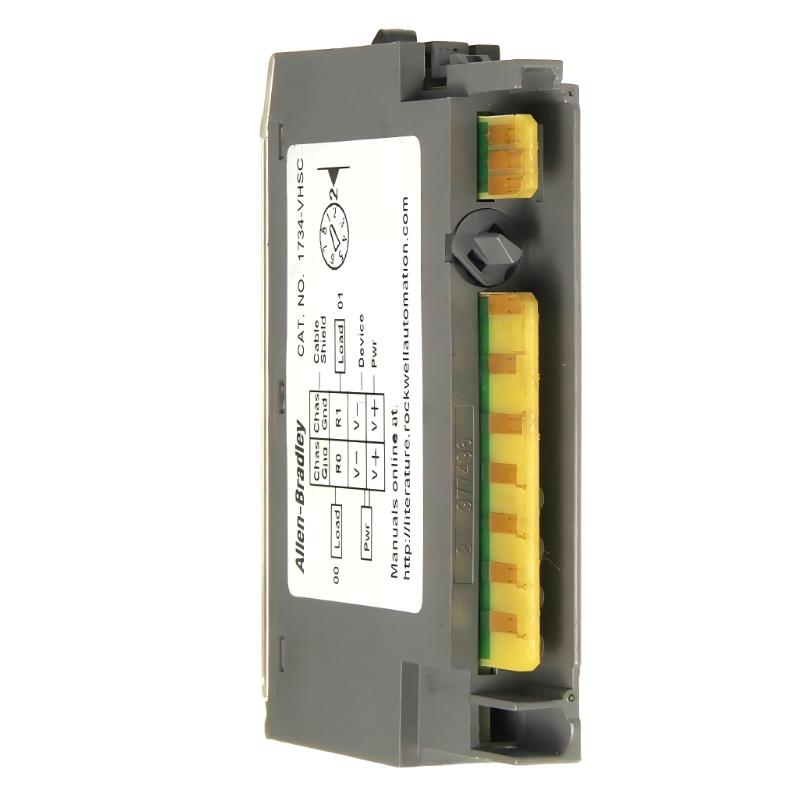

Allen Bradley 1734-VHSC Point I/O High-Speed Counter Module
Allen Bradley 1734-VHSC Point I/O High-Speed Counter Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734-VHSC Product Origin:USA Product Dimensions:75.5 x 12 x 56 mm Product Weight:0.03 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734-VHSC POINT I/O High-Speed Counter Module is a compact industrial module designed for precise high-speed pulse counting and encoder signal processing. It enables accurate measurement of speed, position, and event frequency in automation systems.
Technical Specifications
Parameter
Specification
Product Model
1734-VHSC
Function
High-Speed Counter Module
Dimensions
75.5 × 12 × 56 mm
Weight
0.03 kg
Input Type
High-speed pulse / encoder input
System Compatibility
POINT I/O / Allen-Bradley PLC
Installation
DIN rail mounting
Operating Environment
Industrial-grade conditions
Recommended Related Models
Model
Product Name
1734-IB8
Digital Input Module
1734-OB8
Digital Output Module
1734-IV8
8-point Input Module
1734-AENTR
Ethernet/IP Adapter
Popular Related Models
Model
Product Name
1734-OE4C
Analog Output Module
1734-OW2
Relay Output Module
1734-SSI
Encoder Input Module
1738-AENTR
ArmorPOINT Adapter
Applications
• High-speed pulse counting in industrial automation systems
• Encoder signal processing for position and speed feedback
• Conveyor tracking and material handling measurement systems
• Packaging machinery and bottling line synchronization control
• Motor speed monitoring and rotary equipment feedback loops
• Discrete manufacturing systems requiring fast event counting
Key Advantages
• Very high-speed signal processing for precise pulse counting
• Supports encoder-based position and speed measurement applications
• Compact POINT I/O form factor for distributed control systems
• Seamless integration with Allen-Bradley PLC and Ethernet/IP networks
• Reliable performance in high-frequency industrial environments
• Modular design enables flexible system expansion
Technical FAQs
Q1: What is the main function of this module?
A: It counts high-speed digital pulses and processes encoder signals.
Q2: What systems is it used with?
A: Allen-Bradley POINT I/O systems and Logix PLC platforms.
Q3: Is it used for encoder signals?
A: Yes, it is commonly used for speed and position feedback.
Q4: Can it handle high-frequency inputs?
A: Yes, it is designed for high-speed pulse counting applications.
Q5: Where is it commonly used?
A: Conveyor systems, packaging machines, and motion control systems.
Q6: Is it suitable for PLC systems?
A: Yes, it integrates directly into POINT I/O architectures.
Q7: Can it be used in Ethernet/IP networks?
A: Yes, via POINT I/O communication adapters.
Q8: Is it compact?
A: Yes, it has a very small DIN-rail module footprint.
Q9: Does it require frequent maintenance?
A: No, it is designed for long-term industrial operation.
Q10: Is installation complicated?
A: No, it installs easily on POINT I/O mounting bases.
