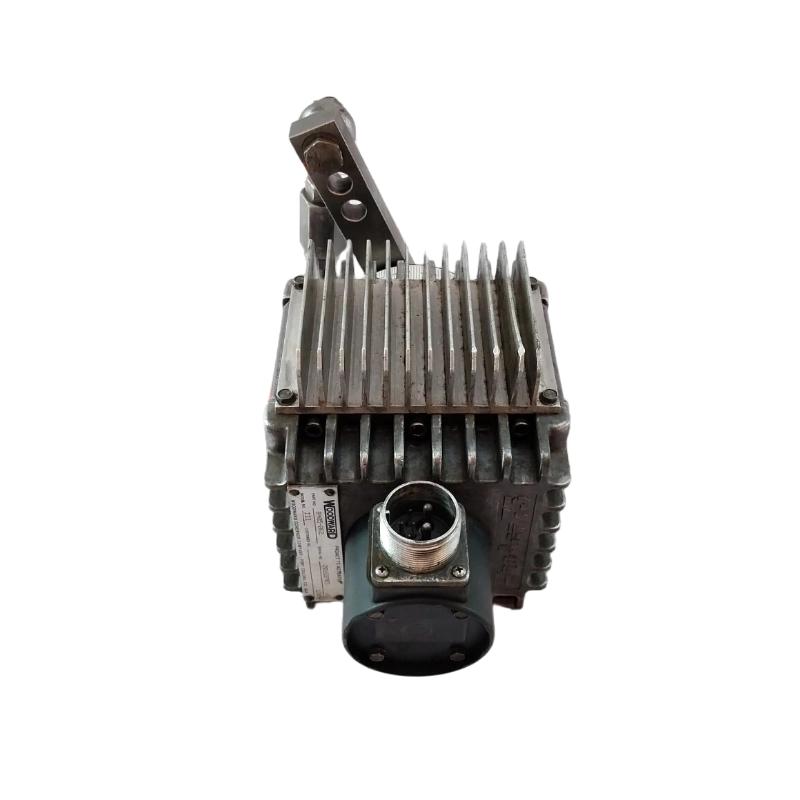

Woodward 8405-223 Electric Actuators And Drives

Applications

The Woodward 8405-223 Electric Actuators and Drives are designed for precision actuation and drive control in turbines, engines, and industrial machinery. Typical applications include:

• Electrically-driven valve and governor actuation in steam, gas, and hydraulic turbines.
• Industrial engines requiring precise position and speed control of mechanical components.
• Integration with Woodward digital or servo controllers for automated process and load regulation.
• Compact systems where limited space requires small-form-factor actuators and drives.
• Retrofitting older control systems with modern, high-precision electric actuation.

These actuators enable precise, repeatable motion while ensuring reliable performance in challenging industrial environments.

Advantages

• Compact & Lightweight: 1.5 kg unit with 200 × 25 × 120 mm dimensions allows flexible mounting in confined spaces.
• Precision Electric Actuation: Provides accurate positioning and motion control for valves and mechanical linkages.
• High Reliability: Industrial-grade construction ensures durability under vibration, shock, and temperature variations.
• Integration-Ready: Seamless compatibility with Woodward controllers, sensors, and supervisory systems.
• Maintenance-Friendly: Modular design and simplified connections reduce installation and servicing time.

Technical FAQs

1. Which components can it actuate?
   Valves, governors, dampers, and other mechanical linkages in turbines and engines.
2. What type of input signals does it accept?
   Digital or analog control signals from Woodward controllers or automation systems.
3. What is the actuation range?
   Configurable depending on mechanical linkage, typically up to ±90°.
4. How fast is the response time?
   Under 150 milliseconds, ensuring rapid adjustment for control loops.
5. Is it suitable for high-vibration environments?
   Yes, designed for industrial vibration, shock, and mechanical stress conditions.
6. Can it operate in elevated temperatures?
   Continuous operation up to 60°C (140°F).
7. Does it support fail-safe operation?
   Yes, configurable fail-open, fail-closed, or hold-last-position modes.
8. Is installation straightforward?
   Yes, standard mounting options and modular wiring simplify setup.
9. Can it integrate with supervisory control systems?
   Yes, position and status feedback are compatible with SCADA, HMI, and distributed control systems.
10. Does it provide diagnostics or monitoring?
    When paired with controllers, it supports fault detection, position monitoring, and event logging.
