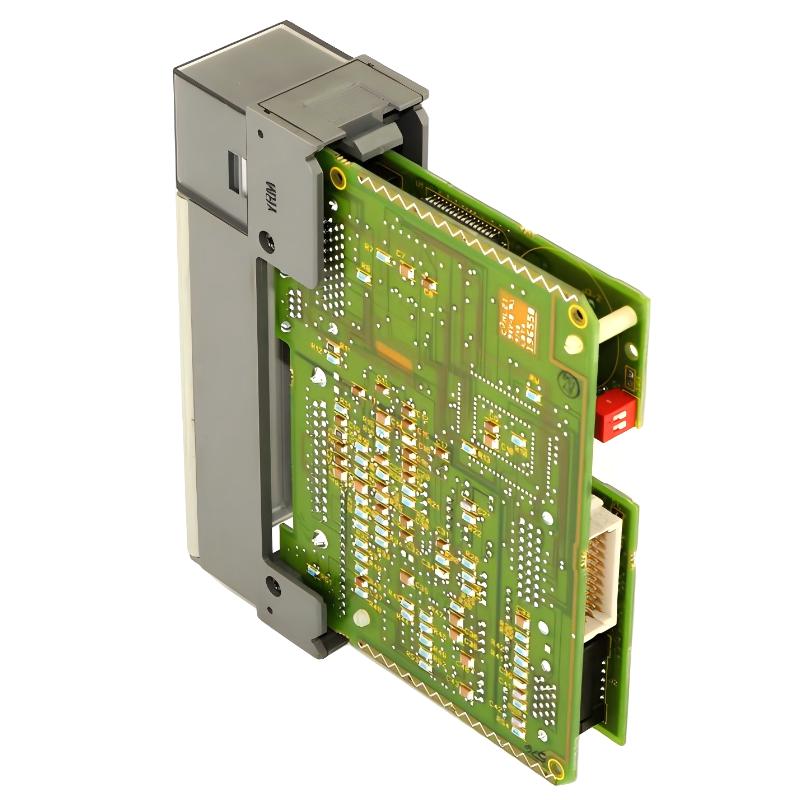

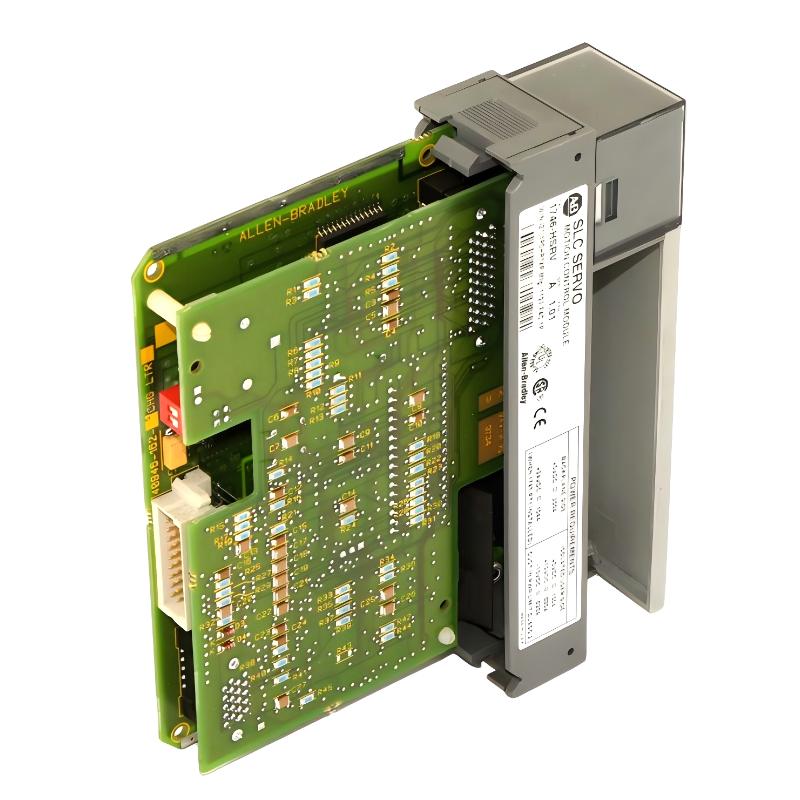

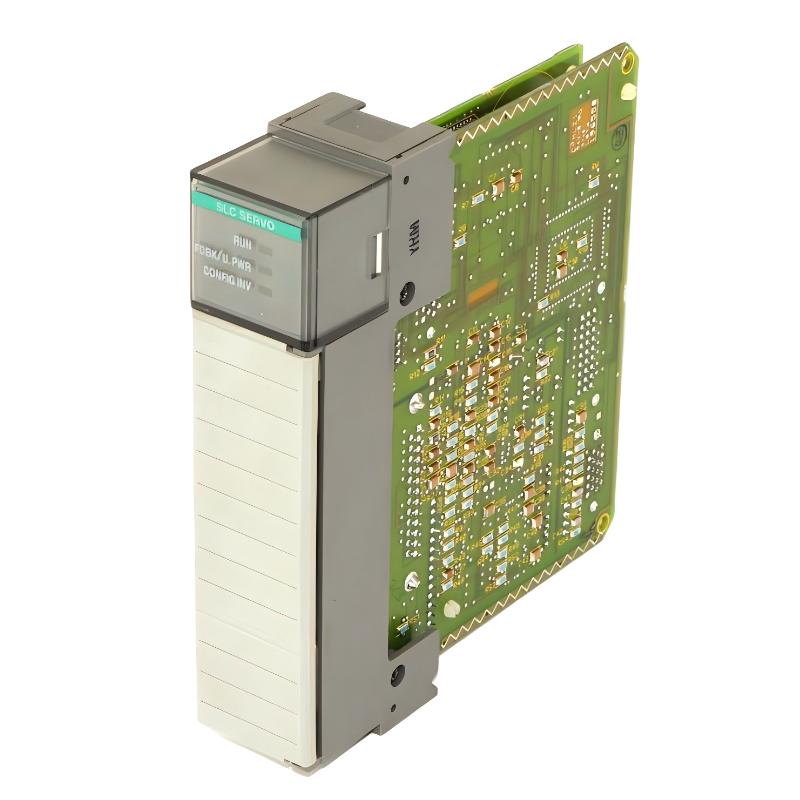

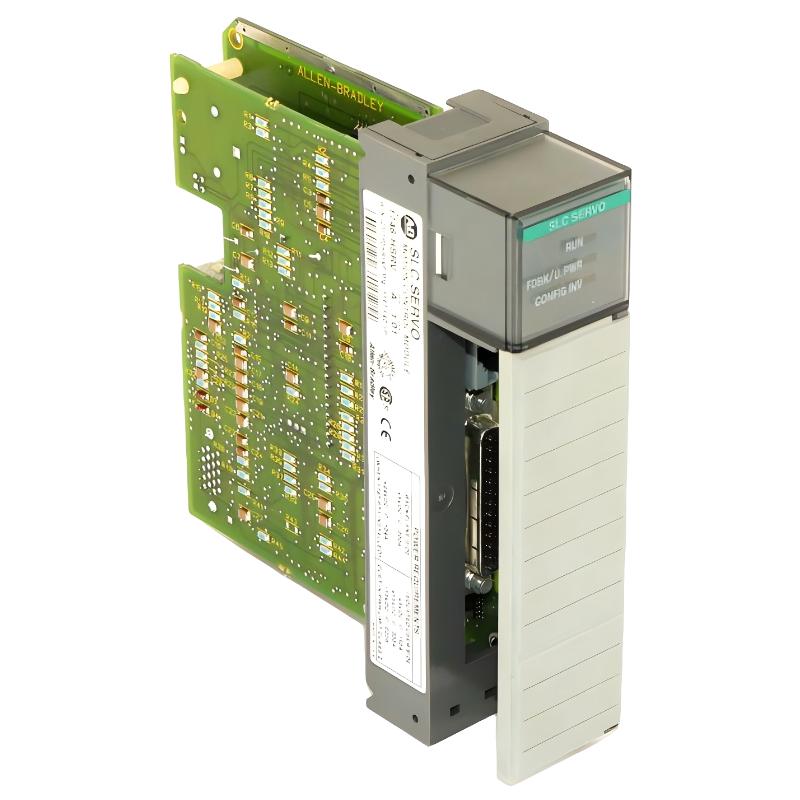

Allen Bradley 1746-HSRV SLC 500 Servo Control Module
Allen Bradley 1746-HSRV SLC 500 Servo Control Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-HSRV Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.222 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1746-HSRV SLC 500 Servo Control Module is a specialized motion control module designed to provide precise servo motor control within SLC 500 PLC systems. It enables accurate positioning, speed regulation, and coordinated motion control for industrial automation applications.
Technical Specifications
Parameter
Specification
Product Model
1746-HSRV
System Series
SLC 500
Function
Servo Control Module
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.222 kg
Application Type
Motion / servo control
System Compatibility
Allen-Bradley SLC 500
Installation
PLC rack mounting
Operating Environment
Industrial-grade conditions
Recommended Related Models
Model
Product Name
1746-NI8
Analog Input Module
1746-OB16
Digital Output Module
1746-OW16
Relay Output Module
1747-L552
SLC 500 Processor
Popular Related Models
Model
Product Name
1746-FIO4V
Fast Analog I/O Module
1746-IB16
Digital Input Module
1746-A7
7-slot Rack
1747-CP3
Communication Cable
Applications
• Servo motor control in Allen-Bradley SLC 500 automation systems
• Positioning and motion control in industrial machinery
• Packaging machines requiring precise speed and position regulation
• Material handling systems such as conveyors and indexing tables
• Assembly automation systems with coordinated motion control
• Legacy factory automation systems using SLC 500 architecture
Key Advantages
• Dedicated servo control capability for precise motion applications
• Seamless integration with SLC 500 PLC systems
• Supports accurate position, speed, and torque control functions
• Improves machine repeatability and production accuracy
• Compact module design suitable for control cabinet integration
• Reliable industrial-grade performance for continuous operation
Technical FAQs
Q1: What is the main function of this module?
A: It provides servo motor control within SLC 500 PLC systems.
Q2: What systems is it used with?
A: Allen-Bradley SLC 500 PLC platform.
Q3: What type of control does it provide?
A: Motion control including position, speed, and servo regulation.
Q4: Is it used for modern PLC systems?
A: No, it is mainly for legacy SLC 500 architectures.
Q5: What applications use this module?
A: Packaging, material handling, and automated assembly systems.
Q6: Can it control multiple axes?
A: It depends on system configuration and connected servo drives.
Q7: Is it suitable for continuous operation?
A: Yes, it is designed for industrial 24/7 environments.
Q8: Does it require frequent maintenance?
A: No, it is built for long-term reliability.
Q9: Is installation complex?
A: No, it installs directly into SLC 500 racks.
Q10: What industries commonly use it?
A: Manufacturing, packaging, automotive, and automation industries.
