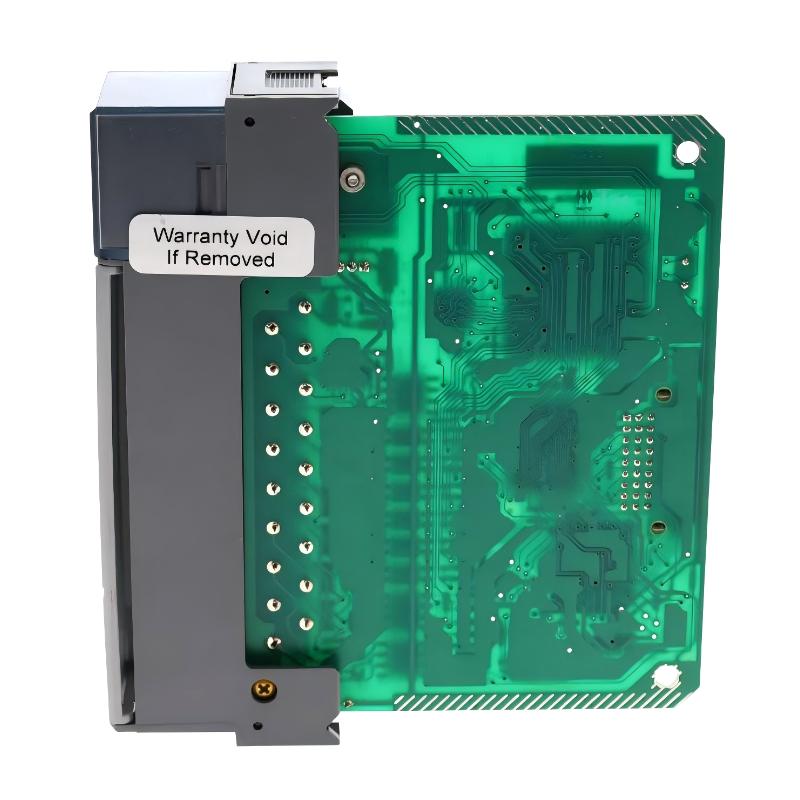

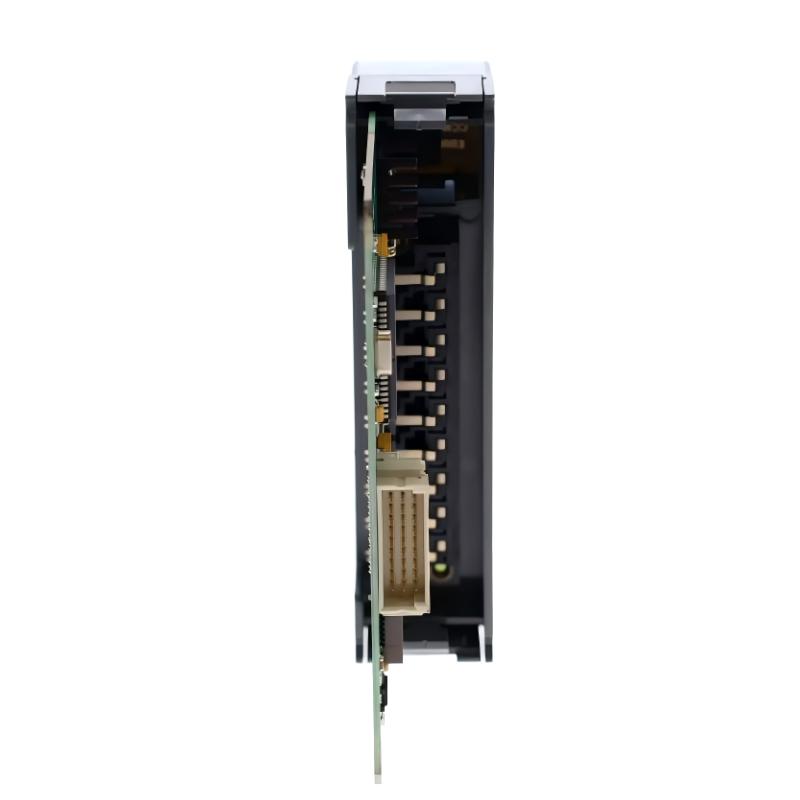

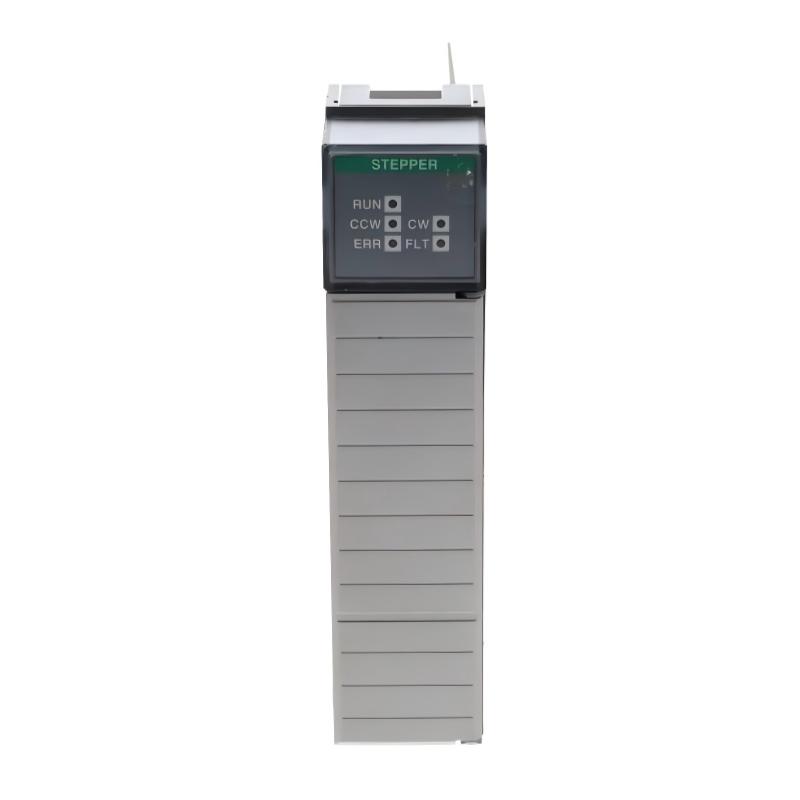

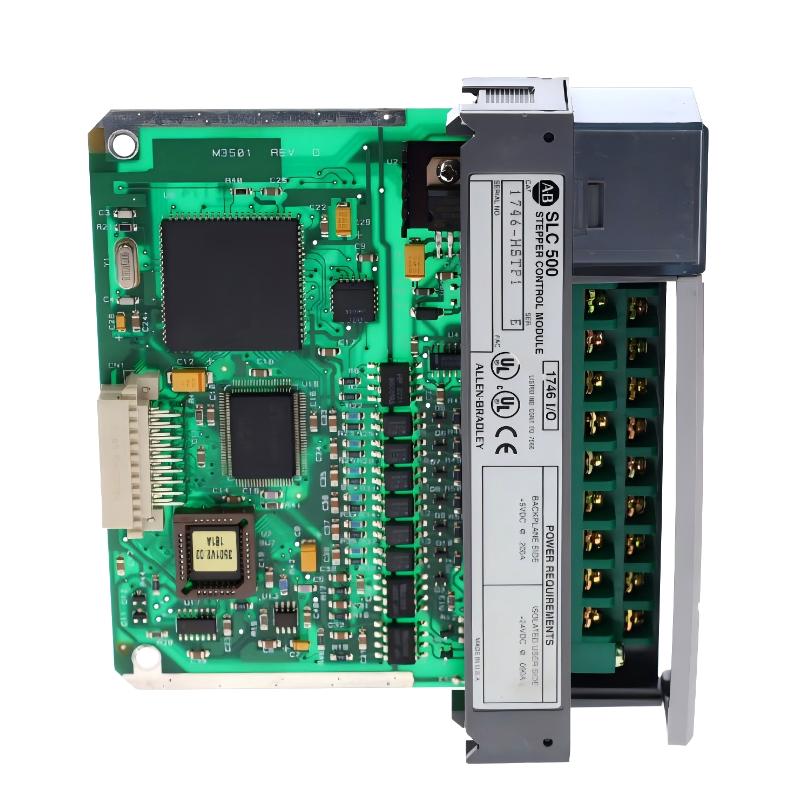

Allen Bradley 1746-HSTP1 SLC 500 Stepper Motor Control Module
Allen Bradley 1746-HSTP1 SLC 500 Stepper Motor Control Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-HSTP1 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.227 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1746-HSTP1 SLC 500 Stepper Motor Control Module is an industrial motion control module designed to provide precise stepper motor control within SLC 500 PLC systems. It enables accurate positioning and controlled incremental movement for automation applications requiring high repeatability.
Technical Specifications
Parameter
Specification
Product Model
1746-HSTP1
System Series
SLC 500
Function
Stepper Motor Control Module
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.227 kg
Application Type
Stepper motion control
System Compatibility
Allen-Bradley SLC 500
Installation
PLC rack mounting
Operating Environment
Industrial-grade conditions
Recommended Related Models
Model
Product Name
1746-HSRV
Servo Control Module
1746-NI8
Analog Input Module
1746-OB16
Digital Output Module
1747-L552
SLC 500 Processor
Popular Related Models
Model
Product Name
1746-FIO4V
Fast Analog I/O Module
1746-IB16
Digital Input Module
1746-OW16
Relay Output Module
1746-A7
7-slot Rack
Applications
• Stepper motor positioning control in SLC 500 PLC systems
• Industrial indexing tables and rotary positioning systems
• Packaging machinery requiring precise step-by-step motion control
• Material handling systems with controlled incremental movement
• Automated assembly lines for repeatable positioning tasks
• Legacy factory automation systems using SLC 500 architecture
Key Advantages
• Dedicated stepper motor control for precise positioning tasks
• Supports accurate incremental motion and repeatable positioning
• Seamless integration with Allen-Bradley SLC 500 PLC systems
• Improves machine accuracy and synchronization in automation processes
• Compact module design suitable for control cabinet installation
• Reliable industrial-grade performance for continuous operation
Technical FAQs
Q1: What is the main function of this module?
A: It controls stepper motors for precise positioning in automation systems.
Q2: What systems is it used with?
A: Allen-Bradley SLC 500 PLC systems.
Q3: What type of motion does it control?
A: Incremental stepper motor motion for positioning applications.
Q4: Is it suitable for modern PLC systems?
A: No, it is mainly used in legacy SLC 500 systems.
Q5: What applications commonly use it?
A: Packaging machines, indexing systems, and assembly automation.
Q6: Does it support high-speed motion?
A: It is optimized for controlled positioning rather than high-speed servo motion.
Q7: Can it be used continuously?
A: Yes, it is designed for industrial 24/7 operation.
Q8: Does it require frequent maintenance?
A: No, it is designed for long-term reliability.
Q9: Is installation complex?
A: No, it installs directly into SLC 500 racks.
Q10: What industries commonly use it?
A: Manufacturing, packaging, automotive, and automation industries.
