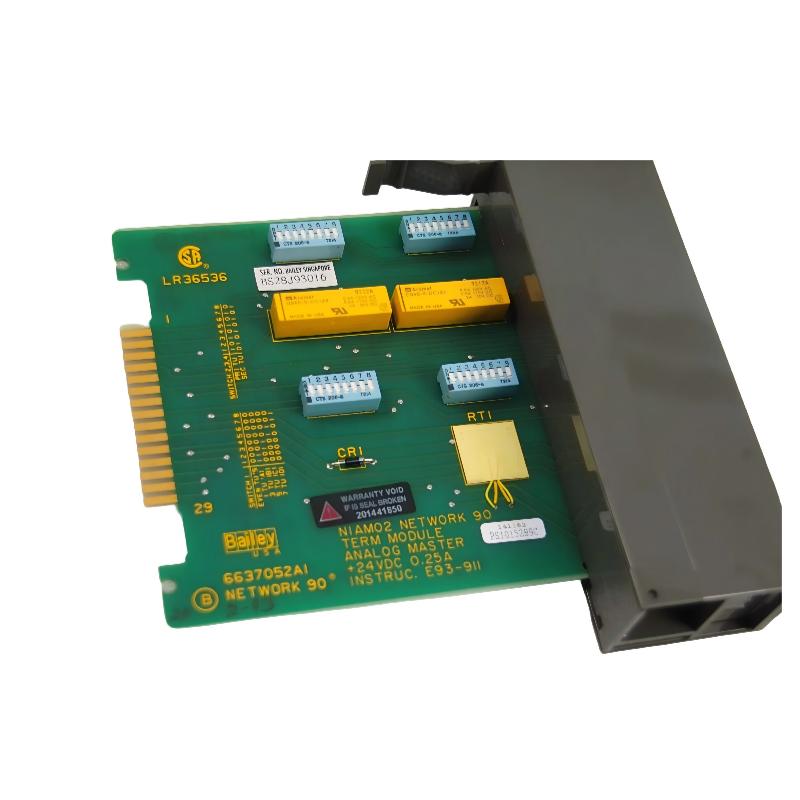

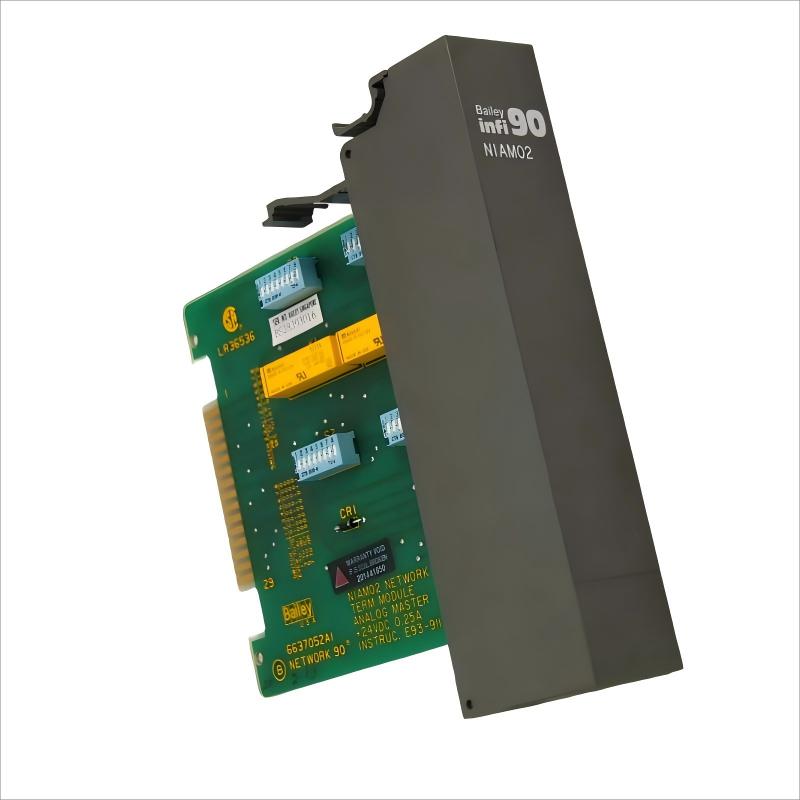

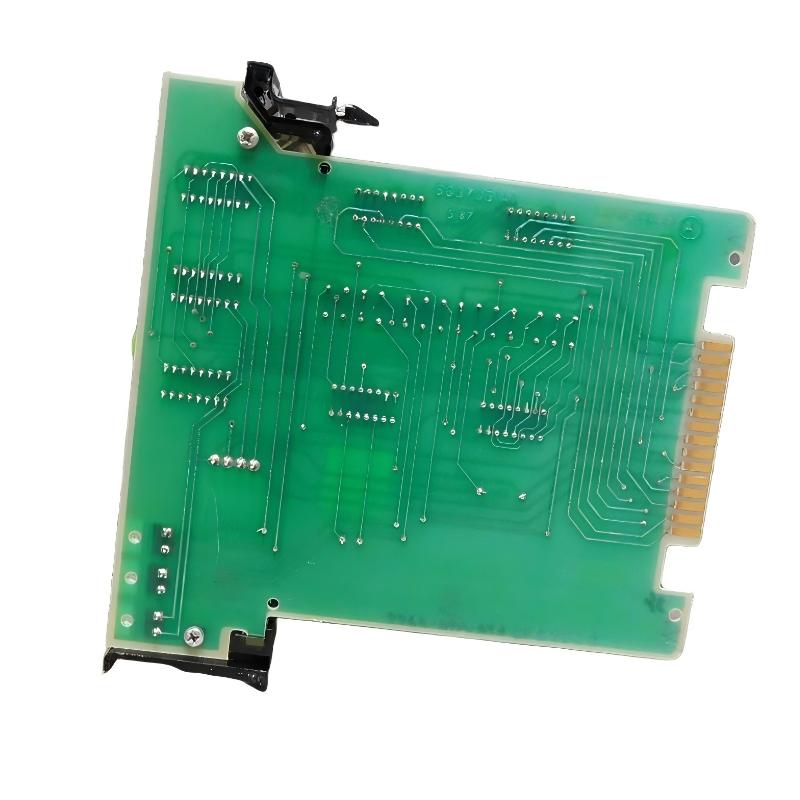

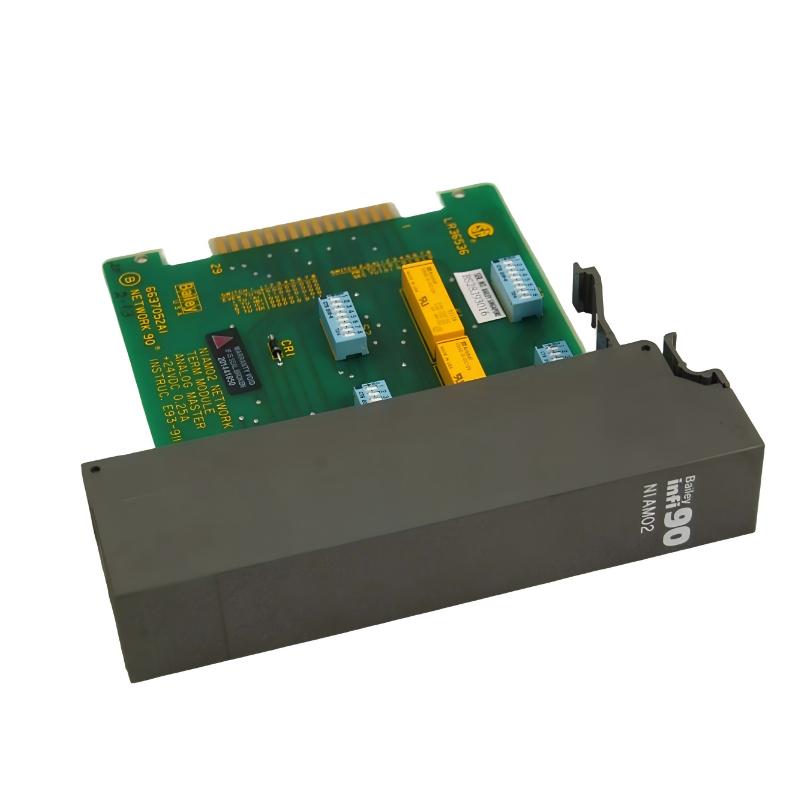

The ABB Bailey NIAM02 Analog Master Termination Module is an essential interface component within the ABB Bailey INFI 90 Distributed Control System (DCS). It is designed to bridge analog field wiring with the system’s analog master and slave modules, ensuring accurate signal routing, conditioning, and system-level coordination.
In real industrial applications, the NIAM02 is more than just a termination board. It plays a key role in analog signal management and cold junction compensation coordination, especially in thermocouple-based measurement systems. It is commonly used alongside IMAMM and IMASM series modules to maintain high-accuracy process control in demanding environments such as power generation and petrochemical plants.
This module is widely valued for improving system stability, simplifying field wiring, and supporting long-term legacy DCS reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Analog Master Termination Module |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | Analog signal termination and system interface |
| Supported Signals | Thermocouple, RTD, analog inputs (system dependent) |
| Channel Structure | Multi-channel analog interface (paired operation) |
| Key Function | Signal routing + cold junction compensation support |
| Connected Modules | IMAMM03 / IMASM02 / NIAI02 |
| Configuration | DIP switch-based setup |
| Installation Type | Termination mounting unit (rack-based) |
| Communication Role | Interface between field signals and control modules |
The NIAM02 also supports system-level coordination for thermocouple compensation by interacting with RTD-based termination modules such as NIAI02.
It is typically used in redundant or paired analog master configurations to ensure measurement stability in industrial environments.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 51 mm × 178 mm × 178 mm |
| Weight | ~0.2–0.3 kg |
The compact termination format allows efficient installation inside standard ABB Bailey termination racks, supporting dense wiring layouts without sacrificing maintainability.
Recommended Related Models
- ABB Bailey NIAI02 Analog Input Termination Module
- ABB Bailey NIAI03 RTD Input Termination Module
- ABB Bailey IMASM02 Analog Slave Input Module
- ABB Bailey IMAMM03 Analog Master Module
- ABB Bailey NDIS01 Digital Indicator Station
These modules form a complete analog measurement and compensation ecosystem within ABB Bailey INFI 90 systems.
