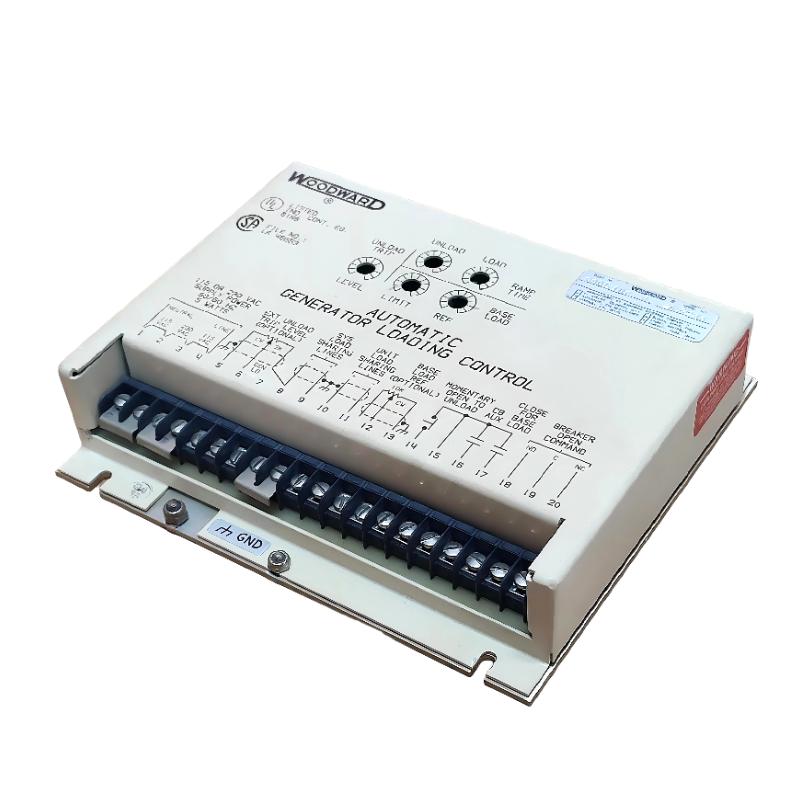

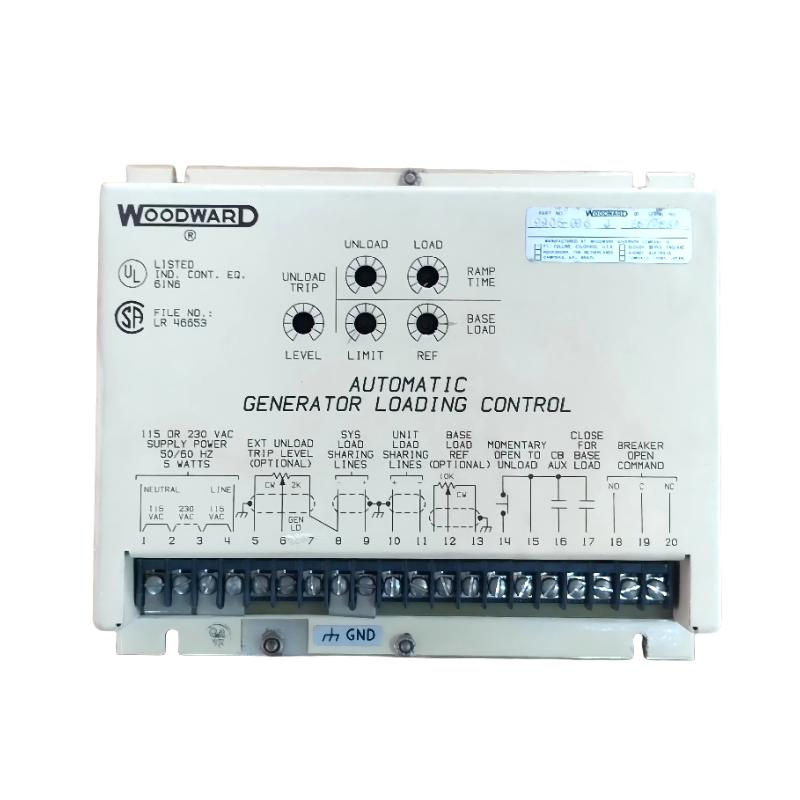

Woodward 9905-096 Automatic Generator load Control Module
Woodward 9905-096 Automatic Generator load Control Module
0.0
Points
Brand:Woodward Item No.:9905-096 Product Origin:USA Product Dimensions:215.9 x 190.5 x 50.8 mm Product Weight:1.02 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Woodward 9905-096 Automatic Generator Load Control Module ensures reliable, precise, and fully automated generator load management. Its compact design and industrial-grade construction allow for easy integration and long-term durability. By automating the process of load balancing, it improves efficiency, reduces mechanical stress on generators, and ensures stable operation under fluctuating power demands.
Technical Specifications
Specification
Details
Module Type
Control Module
Functionality
Automatic generator load control and distribution
Input Signals
Digital and analog voltage, current, and control signals
Integration
Compatible with Woodward governors, actuators, and supervisory systems
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Mounting
Panel or enclosure mountable
Dimensions (H × W × D)
215.9 × 190.5 × 50.8 mm (8.5 × 7.5 × 2 in)
Weight
1.02 kg (2.25 lbs)
Applications
The Woodward 9905-096 Automatic Generator Load Control Module is engineered to provide precise, real-time load management for generators and turbines. Common applications include:
Automatic load distribution in single or multiple generator systems.
Stabilizing generator output in industrial, utility, and cogeneration plants.
Optimizing engine and turbine efficiency under varying load conditions.
Integration with Woodward governor and generator controllers for fully coordinated control.
Retrofitting legacy systems with modern, automatic load regulation capabilities.
This module is ideal for operators and engineers who need reliable, dynamic, and precise load control in complex industrial power systems.
Advantages
Automated Load Control: Maintains optimal generator output without manual intervention.
Compact Industrial Design: 215.9 × 190.5 × 50.8 mm, 1.02 kg – easy to integrate into panels or enclosures.
Industrial Reliability: Built to withstand vibration, shock, and wide temperature ranges.
System Integration: Seamlessly connects with Woodward governors, actuators, and supervisory systems.
Efficiency and Safety: Enhances generator efficiency while preventing overloads and system instability.
Technical FAQs
Which generators can it manage?
Compatible with Woodward-controlled industrial and utility-scale generators.
Does it support automatic load distribution?
Yes, dynamically adjusts generator output to match system load demands.
Can it operate with multiple generators in parallel?
Yes, designed to coordinate multiple units for balanced power delivery.
Does it include protection features?
Yes, provides alarms and safeguards for overload, overspeed, and out-of-range conditions.
What signals does it process?
Digital and analog voltage, current, and control signals from generators and supervisory systems.
Can it integrate with SCADA or HMI systems?
Yes, provides real-time operational feedback and diagnostics.
Is manual override possible?
Yes, operators can manually adjust generator load if needed.
Can it operate continuously in industrial environments?
Yes, rated for 24/7 operation under demanding conditions.
How precise is the load control?
Maintains tight load regulation to prevent generator stress and ensure stable system operation.
Does it require software configuration?
Yes, initial setup and tuning are performed using Woodward digital configuration tools.
