Brand:Woodward Item No.:9905-263 Product Origin:USA Product Dimensions:216 x 191 x 50 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

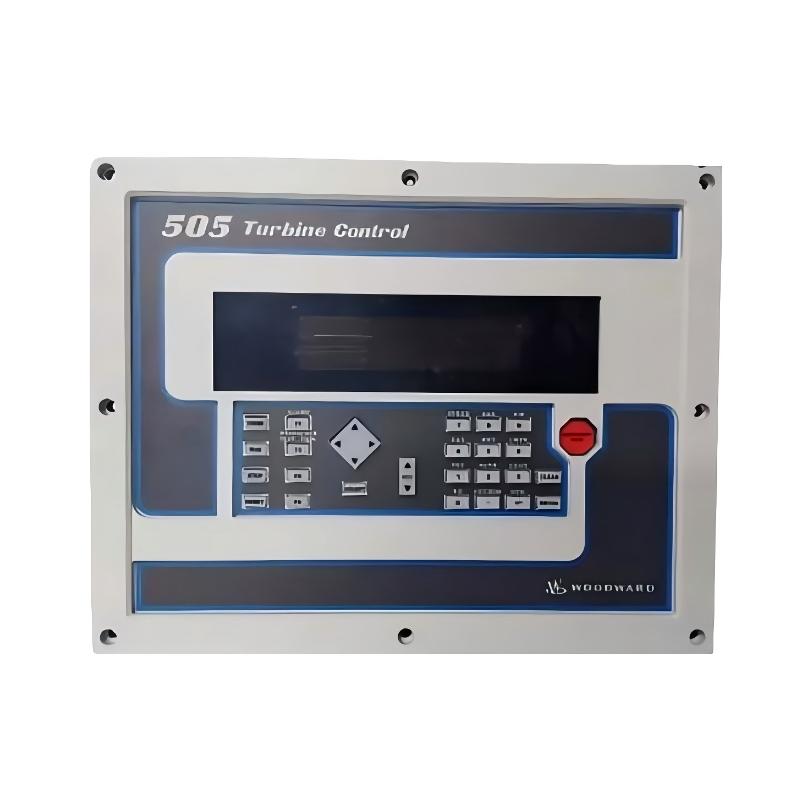

The Woodward 9905-263 Digital Control Module delivers highly accurate digital control for generators and turbines, offering seamless integration, reliable operation, and enhanced efficiency. Its compact form factor and industrial-grade durability make it ideal for panel or field installation. Designed to automate complex control tasks, it improves operational reliability, optimizes load management, and reduces manual intervention.
Technical Specifications
Specification
Details
Module Type
Control Module
Functionality
Digital control of generators and turbines, load, voltage, and frequency regulation
Input Signals
Analog and digital signals from generators, sensors, and supervisory systems
Integration
Compatible with Woodward governors, actuators, and SCADA/HMI systems
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Mounting
Panel or enclosure mountable
Dimensions (H × W × D)
216 × 191 × 50 mm (8.5 × 7.5 × 2 in)
Weight
1.1 kg (2.43 lbs)
Applications
The Woodward 9905-263 Digital Control Module is designed for precise, programmable control of generators, turbines, and industrial engines. Typical applications include:
Digital regulation of generator output for voltage, frequency, and load management.
Coordinated control of multiple generator units in parallel operation.
Integration with Woodward governors, actuators, and supervisory systems for automated operation.
Industrial power plants, cogeneration facilities, and backup power systems requiring high-precision control.
Modernization and retrofit of legacy power systems to achieve digital control capabilities.
Engineers and operators rely on this module for accurate, reliable, and efficient system control in complex industrial environments.
Advantages
High-Precision Digital Control: Ensures consistent voltage, frequency, and load regulation.
Compact and Lightweight: 216 × 191 × 50 mm, 1.1 kg – ideal for control panel installation.
Industrial-Grade Reliability: Withstands vibration, shock, and wide operating temperature ranges.
Seamless Integration: Works with Woodward actuators, governors, and supervisory systems for complete control solutions.
Operational Efficiency: Enhances generator performance, reduces fuel consumption, and ensures stable system operation.
Technical FAQs
Which systems can this module control?
Compatible with industrial and utility-scale generators and turbine-driven systems using Woodward controllers.
Does it support multiple generator coordination?
Yes, it enables parallel operation with synchronization and load sharing.
Can it handle real-time load adjustments?
Yes, digital algorithms dynamically manage load to maintain stable operation.
Does it provide fault protection?
Yes, built-in alarms and safeguards for overvoltage, overspeed, and system anomalies.
What types of input signals are supported?
Accepts analog and digital signals for voltage, frequency, and load from sensors or supervisory systems.
Is it suitable for continuous operation?
Yes, designed for 24/7 industrial operation in demanding environments.
Can it integrate with SCADA or HMI systems?
Yes, offers real-time monitoring and data output for supervisory control systems.
Is manual override possible?
Yes, operators can intervene to adjust settings when necessary.
How precise is the digital control?
Maintains tight control over generator output to ensure stable system performance.
Does it require configuration software?
Yes, initial setup and parameter tuning are completed using Woodward digital configuration tools.
