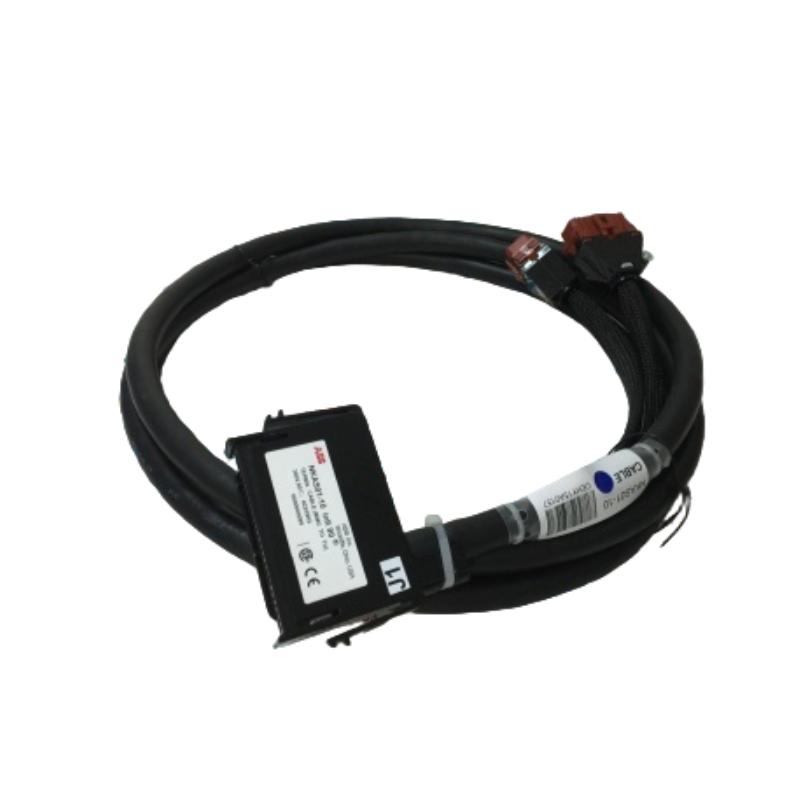

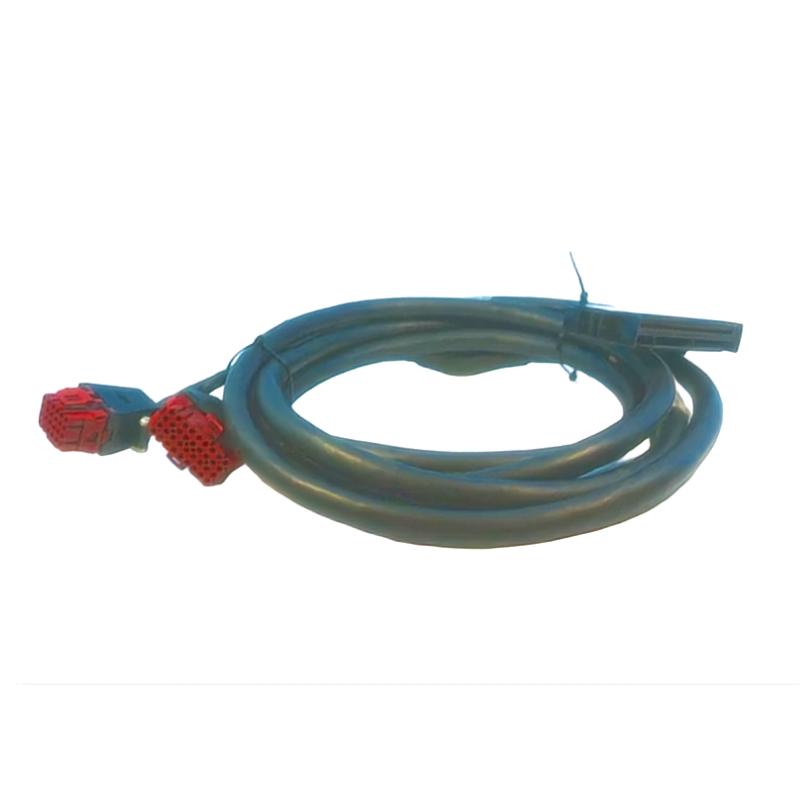

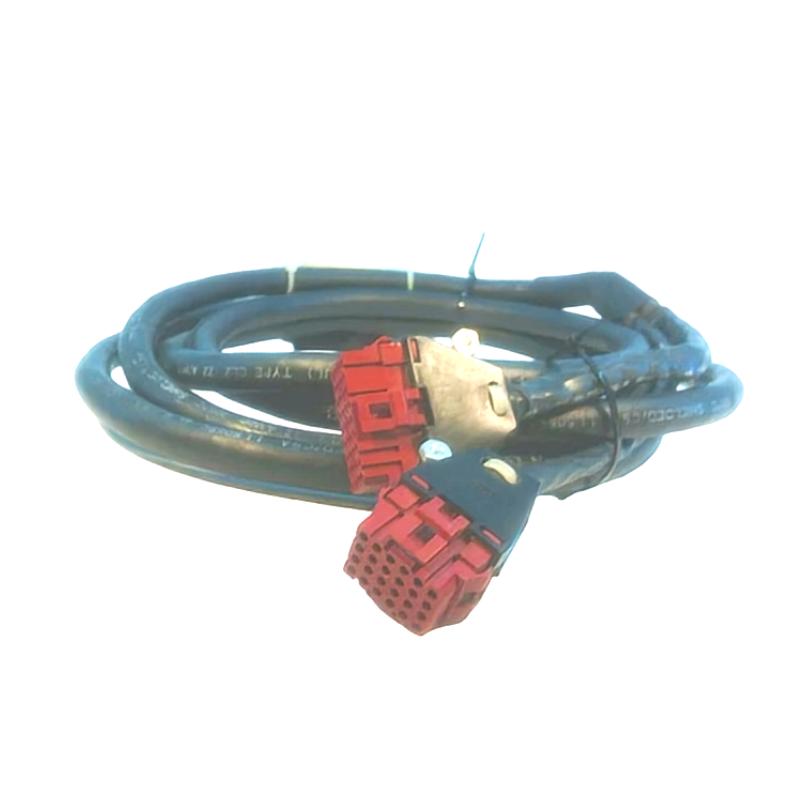

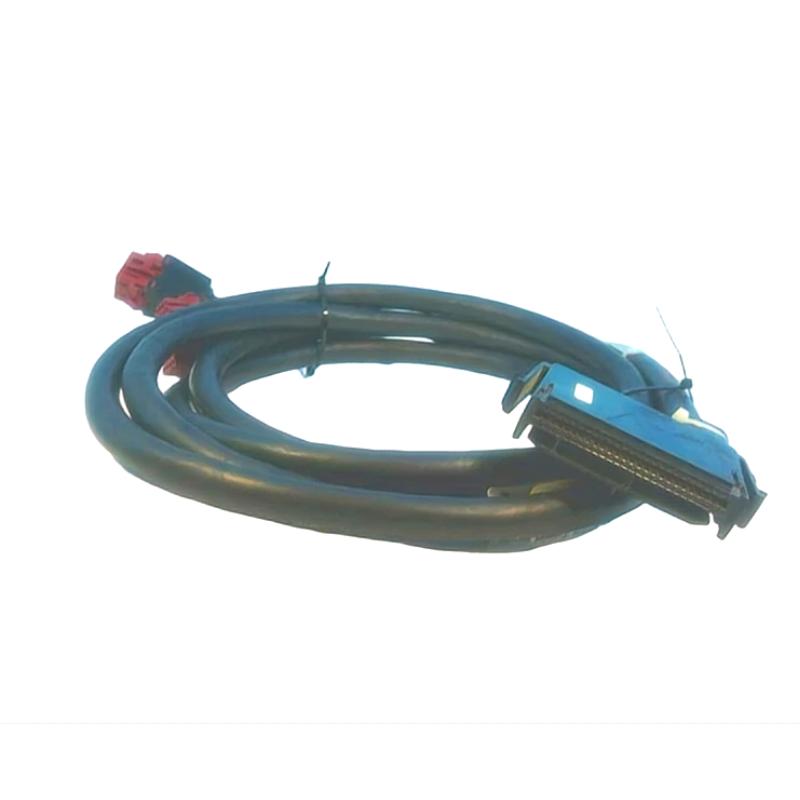

The ABB Bailey NKAS01-10 Analog Module Termination Cable is a dedicated signal connection cable designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It is primarily used to establish reliable communication and signal transmission between analog input/output modules and termination units within industrial automation systems.
Engineered for stable industrial performance, the NKAS01-10 helps maintain clean analog signal transmission while reducing wiring complexity inside control cabinets. Its durable PVC construction and factory-grade shielding design make it suitable for continuous operation in demanding process environments.
The 10-foot cable configuration provides flexible cabinet routing while ensuring dependable connectivity between ABB Bailey analog modules and associated termination units.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Analog Module Termination Cable |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | Analog module to termination unit connection |
| Cable Length | 10 ft (approximately 3.05 m) |
| Cable Material | Industrial-grade PVC |
| Communication Role | Analog signal transmission |
| Connection Type | Module-to-termination unit interface |
| Installation Environment | Industrial control cabinet |
| Cable Design | Shielded industrial cable |
| Application Type | Analog signal interface systems |
The NKAS01-10 is commonly used to connect ASI modules to NTAI termination units in ABB Bailey systems.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 279.4 mm × 279.4 mm × 63.5 mm |
| Weight | ~0.9–1.0 kg |
The flexible cable structure allows efficient routing within dense industrial cabinets while maintaining reliable signal integrity.
