Introduction

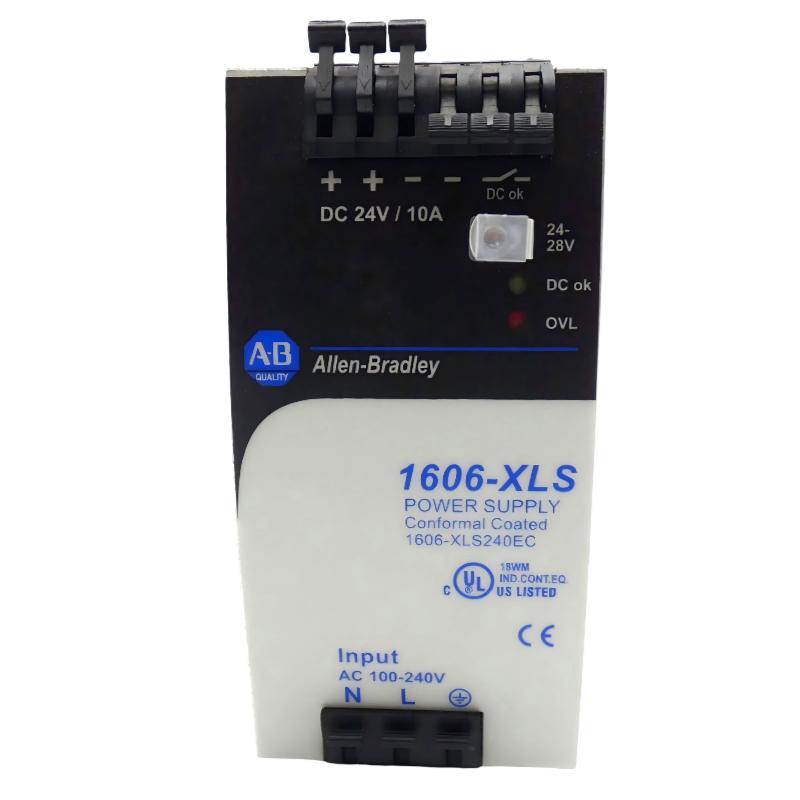

The Allen Bradley 1606-XLS240EC/A Power Supply is a robust and efficient industrial power module designed to provide reliable 24V DC power to automation systems. Its compact design, high efficiency, and integrated protection features make it ideal for control panels in manufacturing, processing, and robotics applications. Engineers and system integrators value its consistency, durability, and ease of integration.

Technical Specifications

Specification	Details
Module Type	Power Supply Module
Input Voltage	85–264V AC
Output Voltage	24V DC
Output Current	Up to 10A
Efficiency	>90%
Protections	Overcurrent, short-circuit, thermal protection
Environmental Ratings	Shock, vibration, industrial temperature tolerant
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Mounting	DIN rail or panel mountable
Dimensions (H × W × D)	124 × 60 × 117 mm (4.9 × 2.4 × 4.6 in)
Weight	0.9 kg (1.98 lbs)

Applications

The Allen Bradley 1606-XLS240EC/A Power Supply is designed for industrial automation systems requiring stable, reliable, and efficient DC power. Its applications include:

Providing power to Allen Bradley controllers, I/O modules, and communication devices.
Supporting factory automation, process control, and material handling systems.
Integration into machine control panels for reliable operation of industrial equipment.
Use in robotics and motor control systems requiring consistent 24V DC output.
Retrofitting legacy Allen Bradley systems for enhanced power stability.

Engineers rely on this module for consistent, high-quality power delivery in industrial environments.

Advantages

Reliable Power Conversion: Converts AC input to stable 24V DC output with minimal ripple.
Compact Design: 124 × 60 × 117 mm, 0.9 kg – easy to integrate into control panels.
High Efficiency: Reduces energy loss and heat generation in industrial applications.
Industrial Durability: Withstands vibration, shock, and wide temperature variations.
LED Status Indicators: Quick visual feedback for operational status and fault detection.

Technical FAQs

What is the input voltage range?
Operates with a wide AC input range, typically 85–264V AC.
What output voltage does it provide?
Provides regulated 24V DC output suitable for I/O modules and controllers.
Can it supply multiple devices simultaneously?
Yes, designed to support multiple Allen Bradley modules within its current rating.
Does it have overcurrent or short-circuit protection?
Yes, built-in protection prevents damage to both the power supply and connected devices.
Is it suitable for continuous industrial operation?
Yes, rated for 24/7 use in demanding environments.
What is its efficiency rating?
High efficiency, typically above 90%, reducing energy loss and heat buildup.
Does it include thermal protection?
Yes, automatically shuts down in case of overheating.
Can it be mounted in standard DIN rail panels?
Yes, compatible with standard DIN rail or panel mounting systems.
Does it provide voltage regulation under fluctuating loads?
Yes, maintains stable 24V DC output even with varying load demands.
Is maintenance required?
Minimal maintenance needed; periodic inspection of connections and indicators is recommended.
