Brand:Woodward Item No.:1606-XLS480E-D Product Origin:USA Product Dimensions:127 x 65 x 124 mm Product Weight:0.89 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

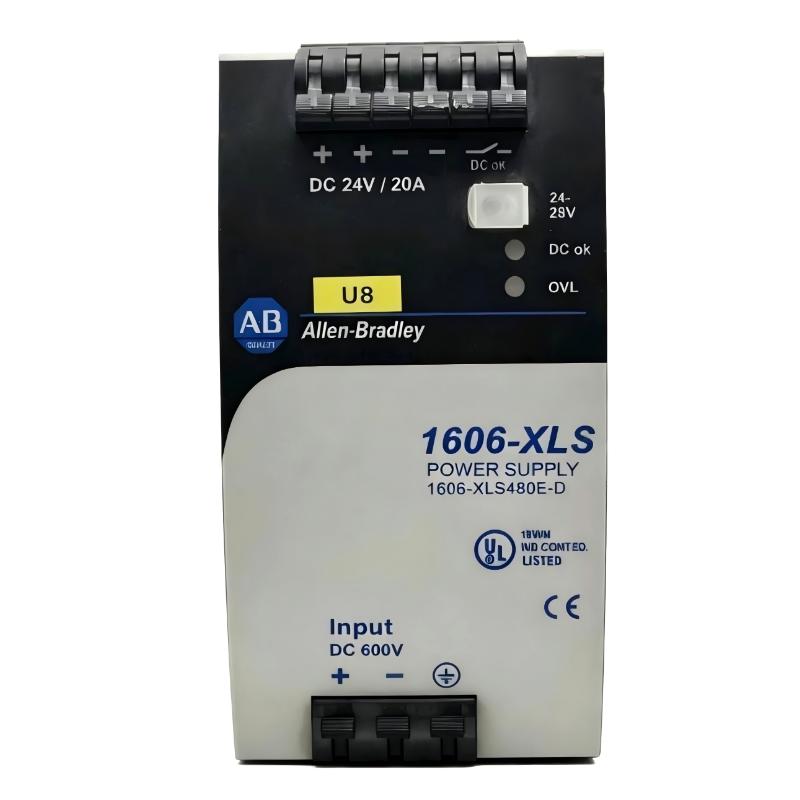

The Allen Bradley 1606-XLS480E-D Power Supply delivers reliable and efficient 24V DC power for industrial automation systems. Its compact and rugged design ensures dependable operation in panels and enclosures while minimizing heat and energy loss. This module is ideal for engineers seeking industrial reliability, efficiency, and simplified integration in high-performance control systems.
Technical Specifications
Specification
Details
Module Type
Power Supply Module
Input Voltage
85–264V AC
Output Voltage
24V DC
Output Current
Up to 20A
Efficiency
>90%
Protections
Overcurrent, short-circuit, thermal protection
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
-25°C to 70°C (-13°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Mounting
DIN rail or panel mountable
Dimensions (H × W × D)
127 × 65 × 124 mm (5 × 2.6 × 4.9 in)
Weight
0.89 kg (1.96 lbs)
Applications
The Allen Bradley 1606-XLS480E-D Power Supply provides robust and reliable power for industrial automation and control systems. Its key applications include:
Supplying stable 24V DC power to Allen Bradley controllers, I/O modules, and communication devices.
Use in factory automation, process control, and material handling systems.
Integration into machine control panels for motors, sensors, and actuators.
Supporting robotics, motion control, and other precision industrial applications.
Retrofitting legacy Allen Bradley systems for enhanced power stability and efficiency.
Engineers rely on this module for consistent, high-quality DC power under demanding industrial conditions.
Advantages
Reliable Power Conversion: Converts high-voltage AC input to stable 24V DC output with minimal ripple.
Compact Design: 127 × 65 × 124 mm, 0.89 kg – ideal for control panels with limited space.
High Efficiency: Minimizes energy loss and heat generation.
Industrial-Grade Durability: Resistant to vibration, shock, and temperature fluctuations.
LED Status Indicators: Provides immediate feedback on operational status and faults.
Technical FAQs
What input voltage range does it support?
Operates on 85–264V AC input, suitable for global industrial use.
What is the output voltage?
Provides regulated 24V DC output for reliable module operation.
Can it power multiple devices simultaneously?
Yes, designed to handle multiple Allen Bradley modules within its current rating.
Does it include protection against short circuits or overloads?
Yes, built-in overcurrent and short-circuit protection.
Is it suitable for continuous operation?
Yes, rated for 24/7 industrial use.
What is the typical efficiency?
High efficiency, typically above 90%, reducing energy consumption and heat buildup.
Does it include thermal protection?
Yes, shuts down safely in case of overheating.
Can it be mounted on standard DIN rails?
Yes, compatible with DIN rail or panel mounting.
Does it provide voltage stability under varying loads?
Yes, maintains stable 24V DC output under fluctuating load conditions.
Is regular maintenance required?
Minimal maintenance; periodic inspection of connections and indicators is recommended.
