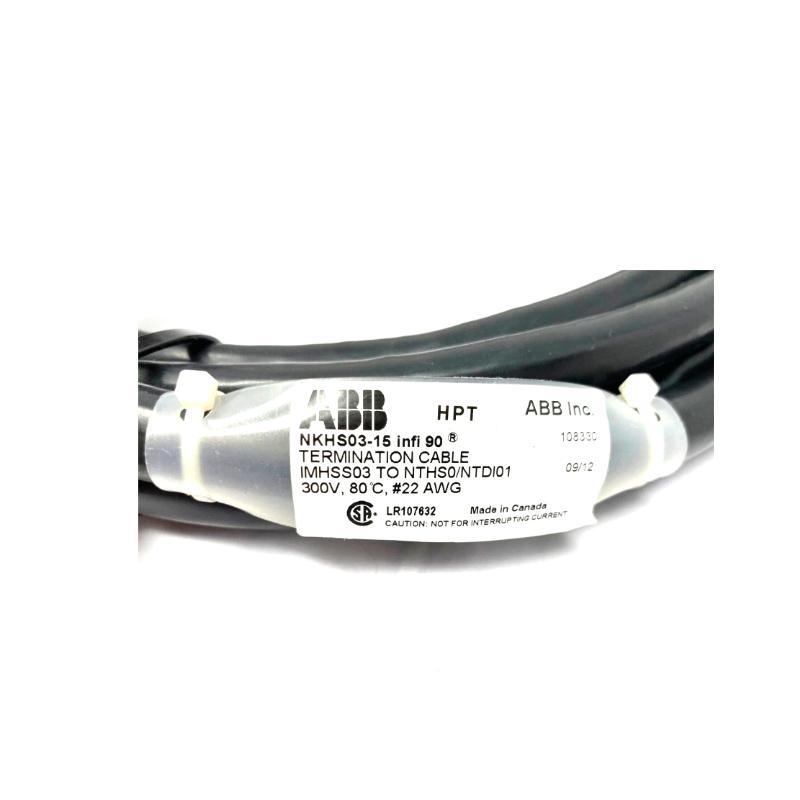

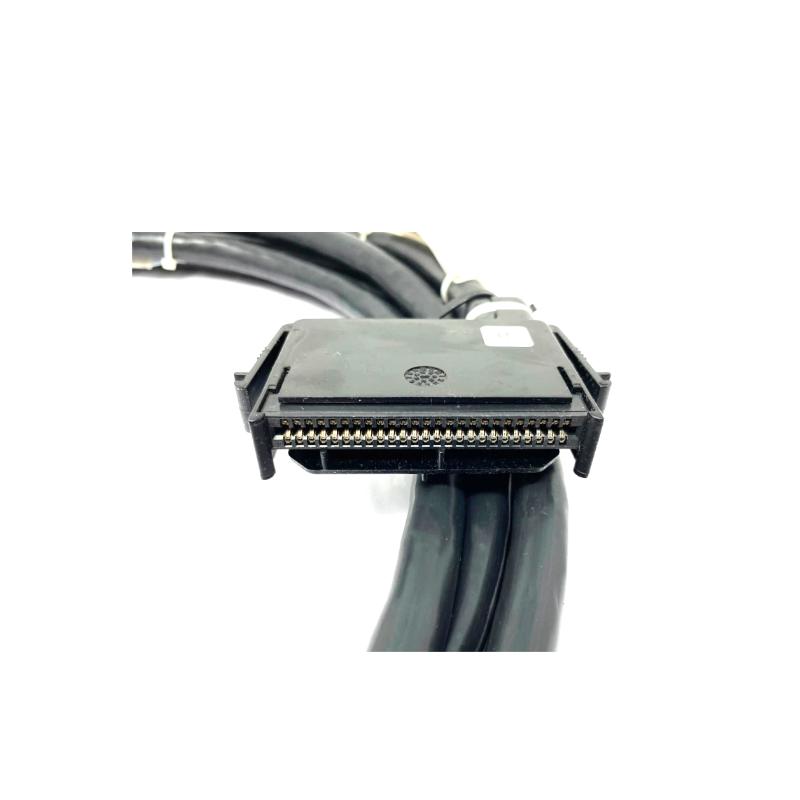

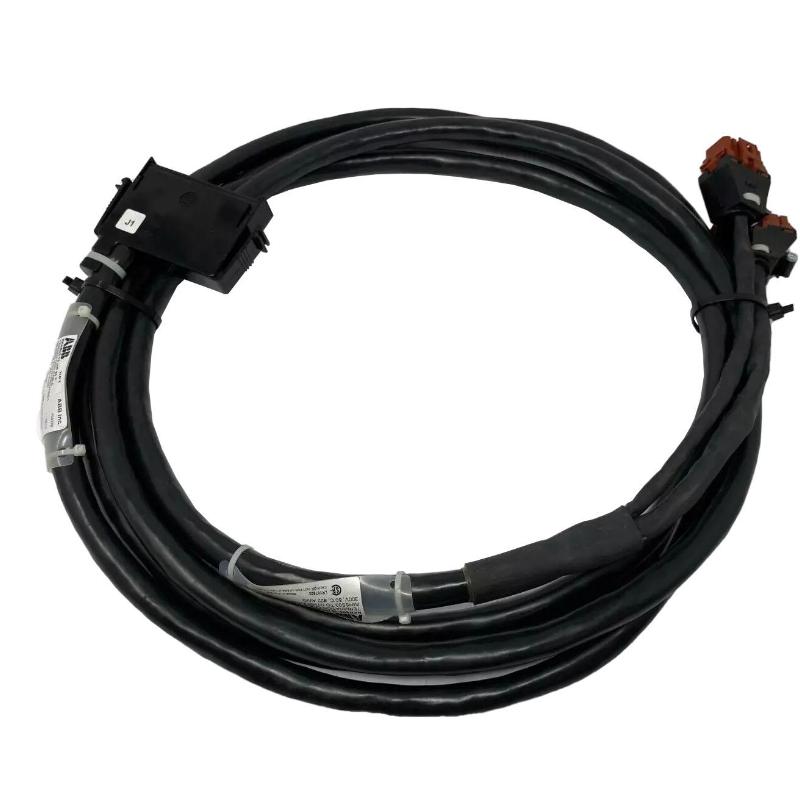

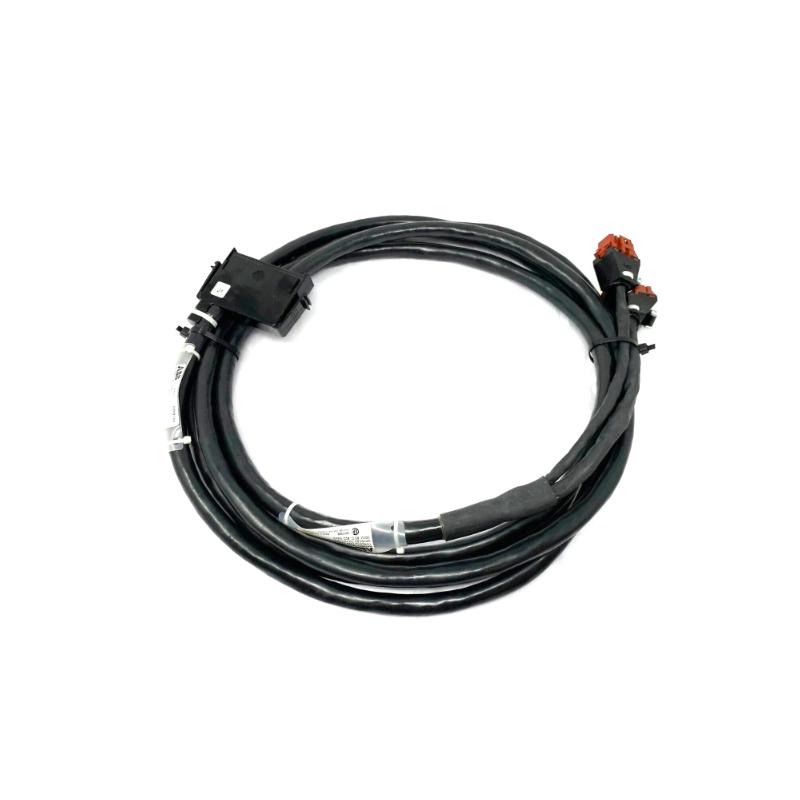

The ABB Bailey NKHS03-15 Hydraulic Servo Interface Cable is a heavy-duty industrial communication cable developed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS) platform. This cable is specifically engineered for high-reliability hydraulic servo applications where stable signal transmission and precise actuator communication are critical to plant performance.
Designed for use in demanding industrial environments, the NKHS03-15 helps ensure accurate control signal delivery between servo modules, hydraulic control systems, and field-level equipment. Its industrial-grade shielding and durable construction reduce electromagnetic interference while supporting continuous operation in harsh electrical environments.
The “-15” configuration indicates the 15-foot cable version, providing additional routing flexibility inside large control cabinets and distributed automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Hydraulic Servo Interface Cable |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | Hydraulic servo and actuator signal transmission |
| Cable Length | 15 ft (approximately 4.57 m) |
| Cable Type | Shielded industrial communication cable |
| Signal Application | Servo control and hydraulic actuator interface |
| Connection Type | Module-to-field equipment connection |
| Cable Material | Industrial-grade insulated cable |
| Installation Environment | Industrial control cabinet |
| Operating Duty | Continuous industrial operation |
Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 320 mm × 320 mm × 75 mm |
| Weight | ~1.2–1.5 kg |
The longer cable structure offers greater installation flexibility while maintaining strong signal integrity and stable communication performance.
Compatible Related Models
- ABB Bailey NIMP01 Multi-Function Processor Module
- ABB Bailey NICS01 Communication Slave Module
- ABB Bailey NKLS01 Logic System Connection Cable
- ABB Bailey NIOX01 I/O Expansion Module
- ABB Bailey IMMFP12 Process Controller Module
These modules are commonly integrated with the NKHS03-15 in hydraulic and turbine control applications.
Frequently Used ABB Bailey Models
- NKHS03-15 Hydraulic Servo Interface Cable
- NKAS01-10 Analog Module Cable
- NKLS01 Logic Connection Cable
- NIMP01 Processor Module
- NICS01 Communication Module
These products remain widely used in long-life industrial automation and distributed control infrastructures.
