Brand:Woodward Item No.:1606-XLS480E-D/A Product Origin:USA Product Dimensions:127 x 65 x 124 mm Product Weight:0.89 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

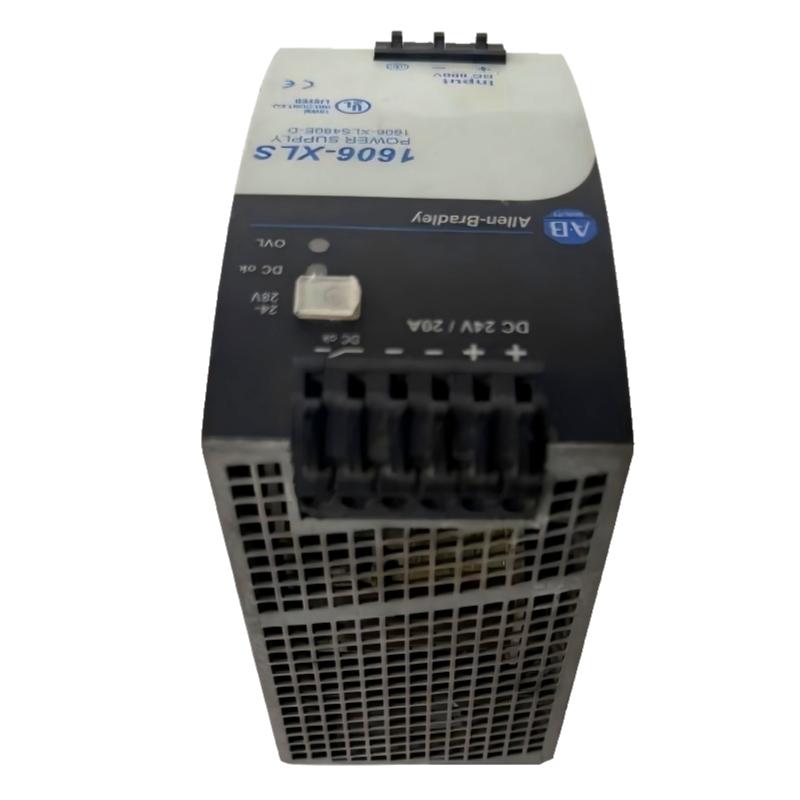

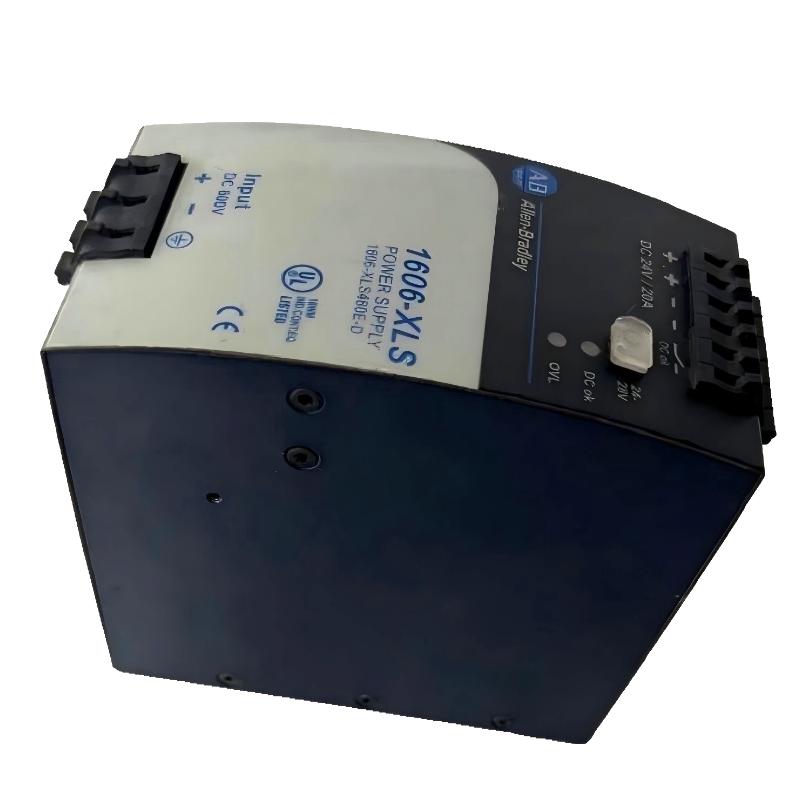

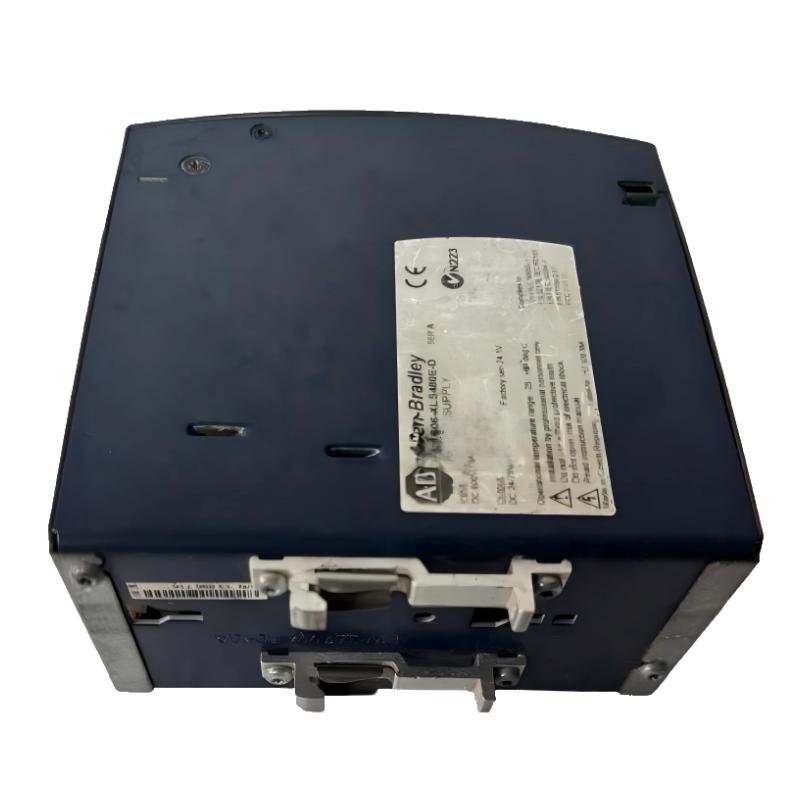

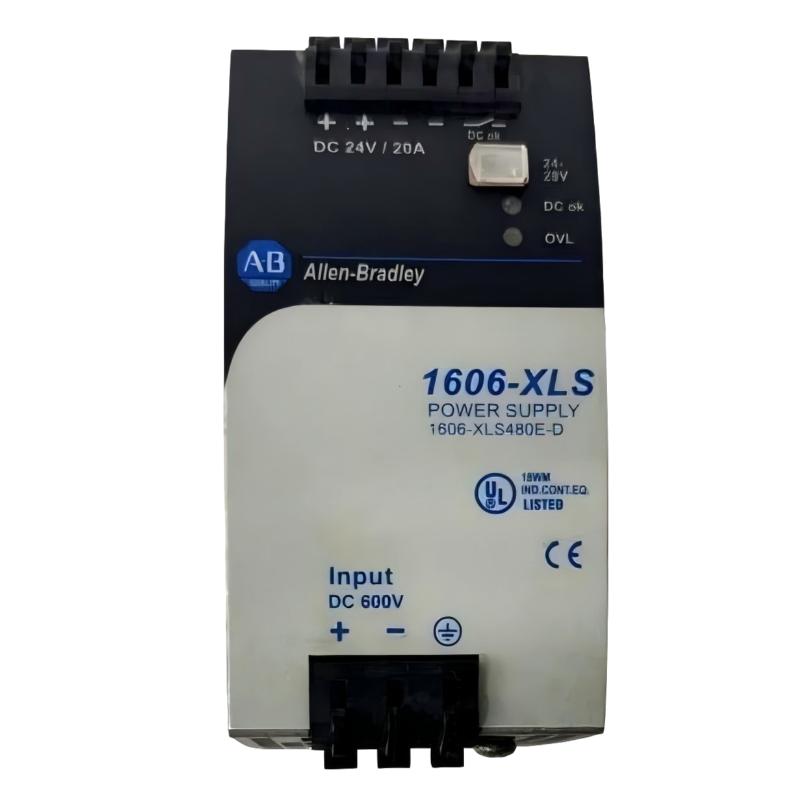

The Allen Bradley 1606-XLS480E-D/A Power Supply is a highly reliable and efficient power module that delivers stable 24V DC output for industrial automation systems. Its compact size and rugged design make it ideal for integration into panels or enclosures, while its high efficiency and protection features ensure safe, long-term operation. Perfect for engineers and system integrators seeking durable and dependable power solutions.
Technical Specifications
Specification
Details
Module Type
Power Supply Module
Input Voltage
85–264V AC
Output Voltage
24V DC
Output Current
Up to 20A
Efficiency
>90%
Protections
Overcurrent, short-circuit, thermal protection
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
-25°C to 70°C (-13°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Mounting
DIN rail or panel mountable
Dimensions (H × W × D)
127 × 65 × 124 mm (5 × 2.6 × 4.9 in)
Weight
0.89 kg (1.96 lbs)
Applications
The Allen Bradley 1606-XLS480E-D/A Power Supply is designed to deliver stable and reliable 24V DC power to industrial automation systems. Typical applications include:
Powering Allen Bradley controllers, I/O modules, and communication devices.
Industrial automation, factory control, and process control systems.
Robotics, motion control, and precision manufacturing equipment.
Integration into machine control panels for motors, sensors, and actuators.
Modernizing legacy Allen Bradley systems for improved efficiency and power reliability.
This module ensures consistent and high-quality power delivery, critical for continuous industrial operations.
Advantages
Stable DC Output: Provides clean, regulated 24V DC for industrial devices.
Compact Form Factor: 127 × 65 × 124 mm, 0.89 kg – ideal for tight control panel spaces.
High Efficiency: Reduces energy loss and limits heat generation.
Rugged Construction: Built to handle vibration, shock, and temperature variations in industrial settings.
Integrated Diagnostics: LED indicators for operational status and fault detection.
Technical FAQs
What is the input voltage range?
Supports a wide AC input range of 85–264V AC.
What is the output voltage?
Provides regulated 24V DC for reliable module operation.
Can it supply multiple devices at once?
Yes, designed to power multiple Allen Bradley modules within rated current limits.
Does it include short-circuit or overload protection?
Yes, it has built-in overcurrent and short-circuit protection.
Is it suitable for 24/7 operation?
Yes, designed for continuous industrial use.
What is its typical efficiency?
High efficiency, typically above 90%, minimizing energy loss.
Does it have thermal protection?
Yes, automatically shuts down in case of overheating.
Can it be mounted on a DIN rail?
Yes, compatible with DIN rail or panel mounting.
Does it maintain voltage stability under varying loads?
Yes, output remains stable even under changing load conditions.
Is maintenance required?
Minimal; periodic inspection of wiring connections and status LEDs is recommended.
