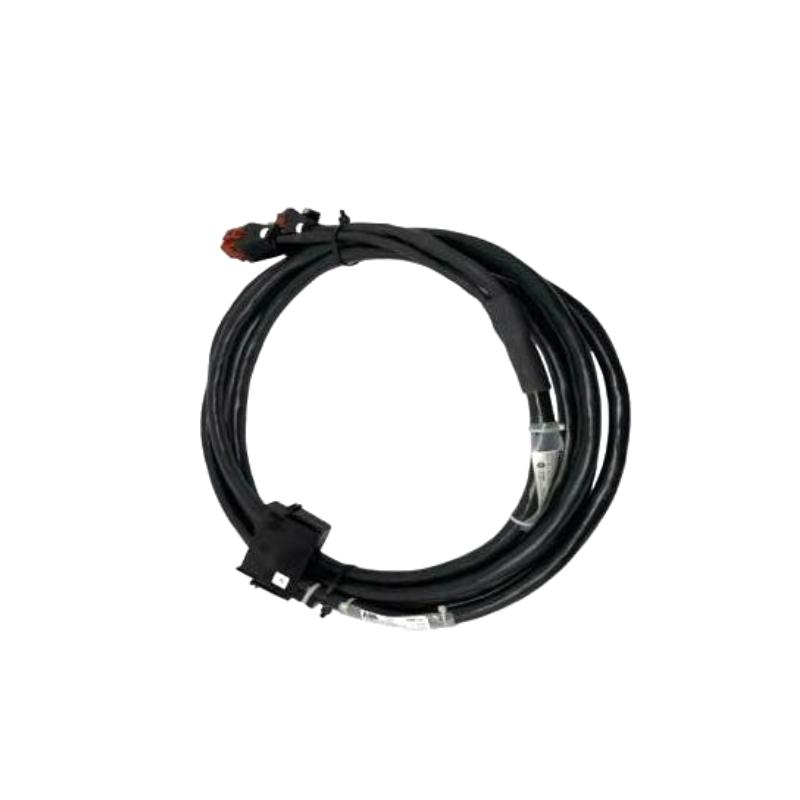

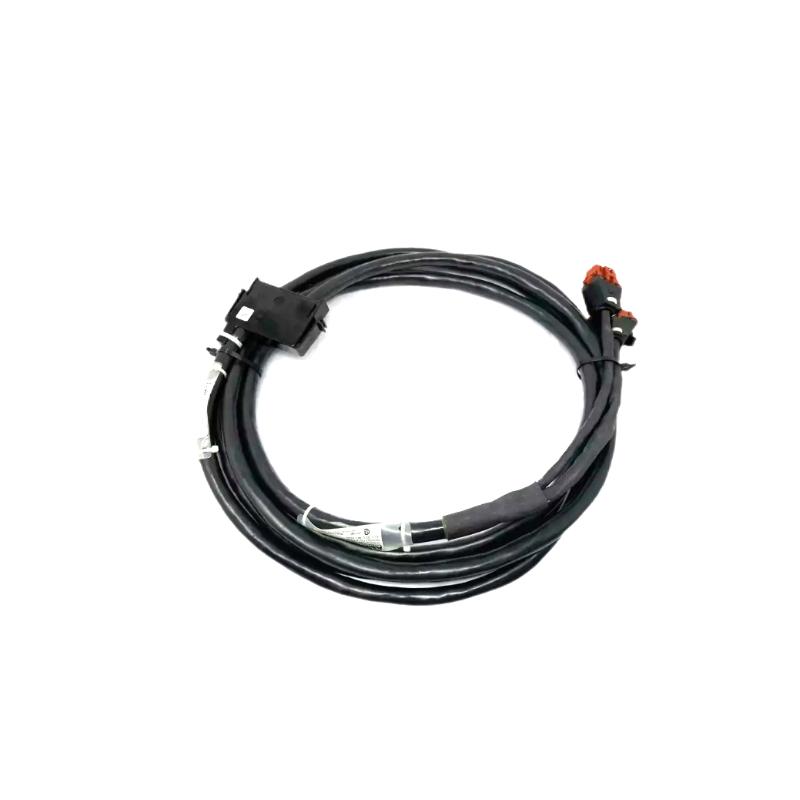

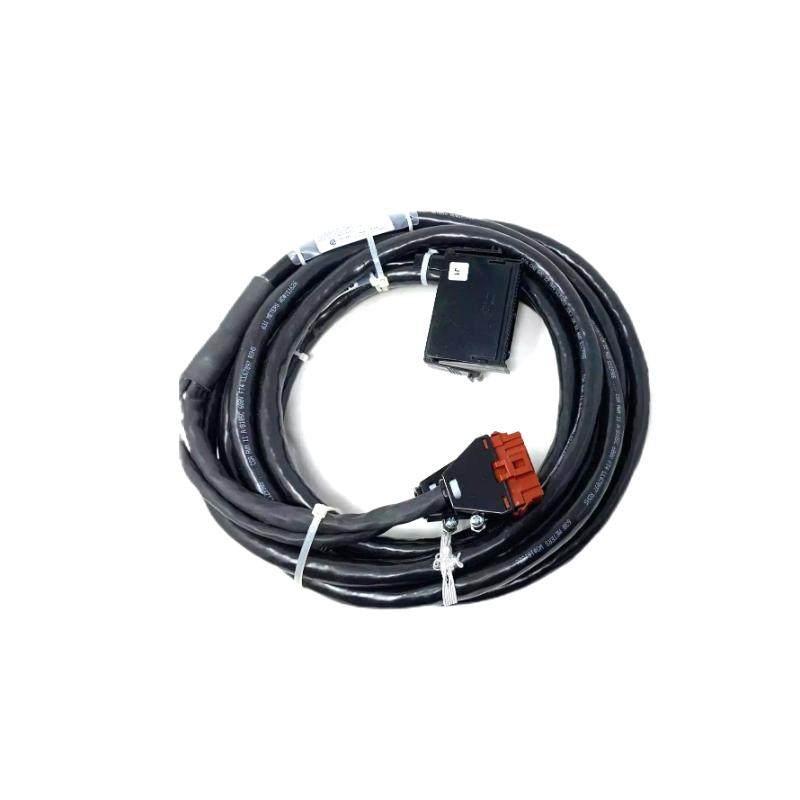

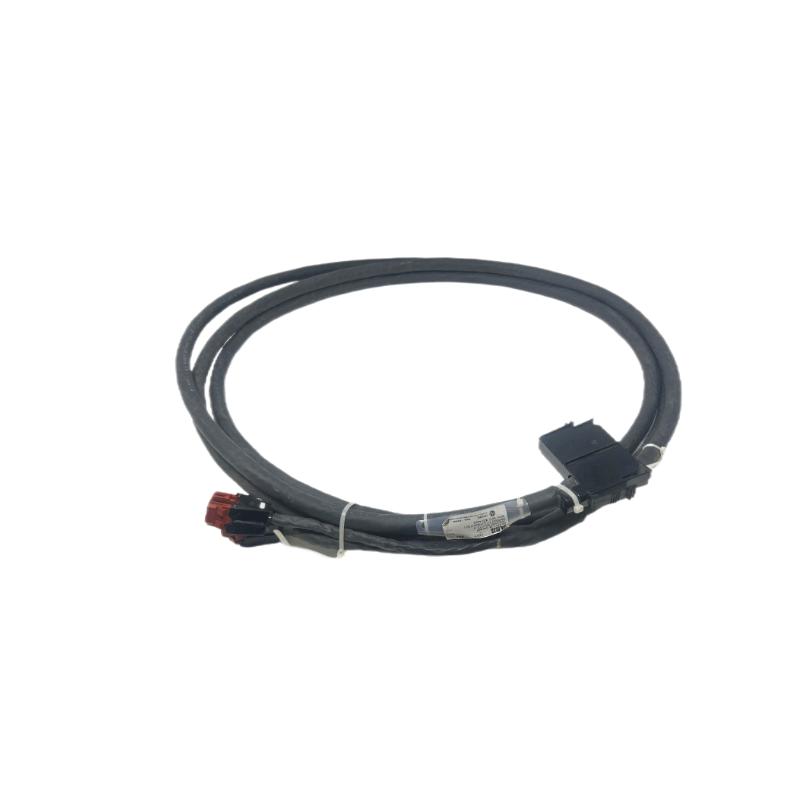

The ABB Bailey NKHS03-25 Hydraulic Servo Interface Cable is a high-reliability industrial communication cable designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS) platform. Engineered for hydraulic servo and actuator control applications, this cable provides dependable signal transmission between control modules and field-level hydraulic equipment.
The NKHS03-25 is optimized for environments where precision control and stable communication are essential. Its industrial-grade shielding minimizes electromagnetic interference, helping maintain accurate servo response and smooth process operation even in electrically demanding installations.
With its 25-foot cable length, this model offers enhanced flexibility for large cabinet layouts and extended routing requirements commonly found in power generation and process automation facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Hydraulic Servo Interface Cable |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | Servo and hydraulic actuator signal transmission |
| Cable Length | 25 ft (approximately 7.62 m) |
| Cable Type | Shielded industrial communication cable |
| Signal Application | Hydraulic servo control communication |
| Connection Type | Module-to-field equipment interface |
| Cable Material | Industrial-grade insulated cable |
| Installation Environment | Industrial automation cabinet |
| Operating Duty | Continuous industrial operation |
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 360 mm × 360 mm × 85 mm |
| Weight | ~1.5–1.9 kg |
The extended cable structure provides flexible installation options while maintaining stable and interference-resistant signal performance.
Recommended Related Models
- ABB Bailey NIMP01 Multi-Function Processor Module
- ABB Bailey NICS01 Communication Slave Module
- ABB Bailey NKLS01 Logic System Connection Cable
- ABB Bailey NIOX01 I/O Expansion Module
- ABB Bailey IMMFP12 Process Controller Module
These modules are commonly integrated with the NKHS03-25 in industrial hydraulic and turbine control systems.
