Brand:Woodward Item No.:1606-XLS960E-3 Product Origin:USA Product Dimensions:127 x 110 x 124 mm Product Weight:1.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

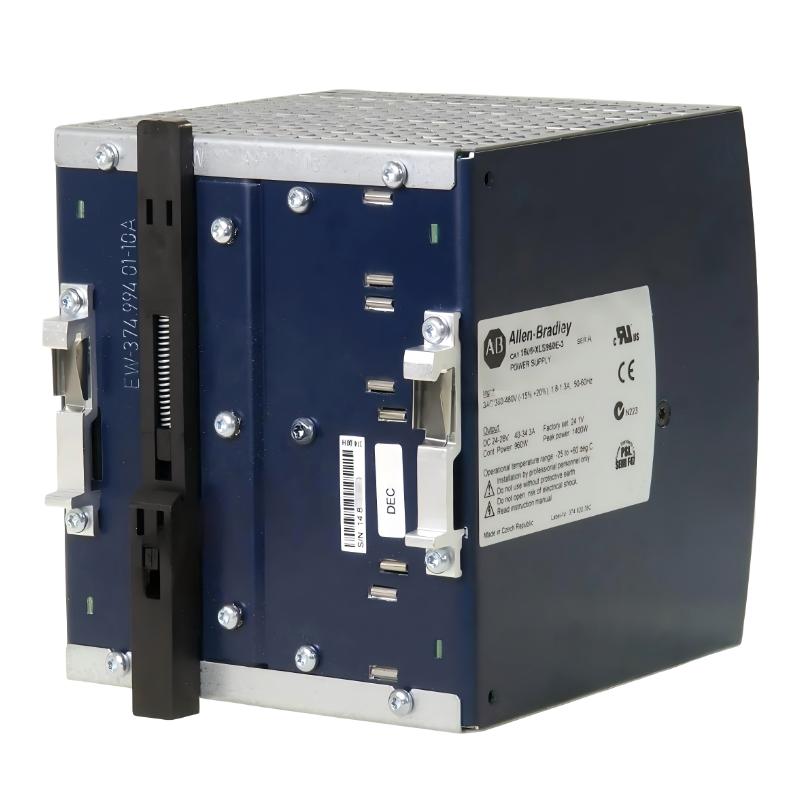

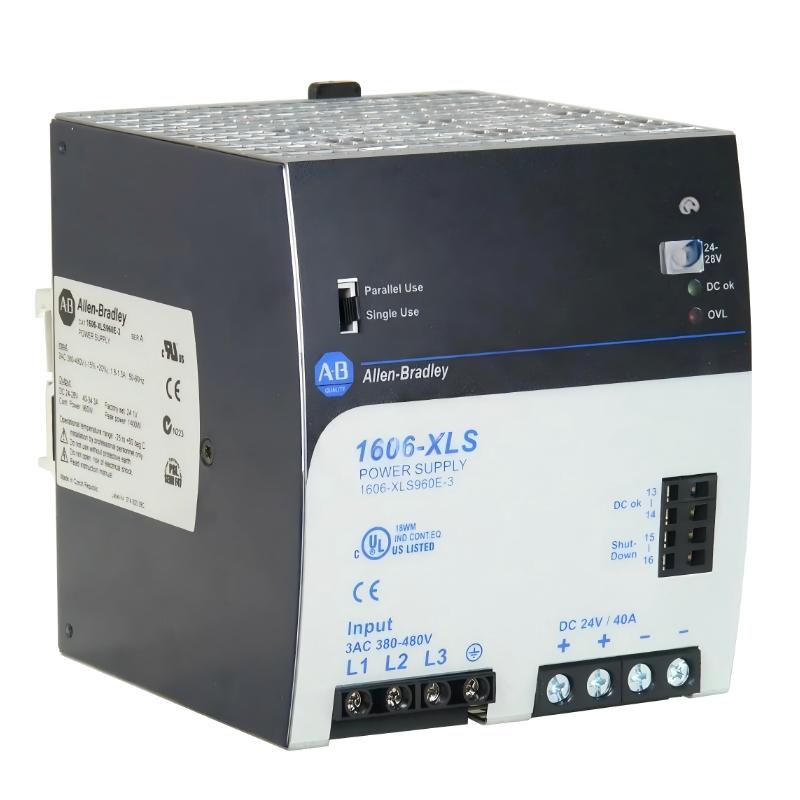

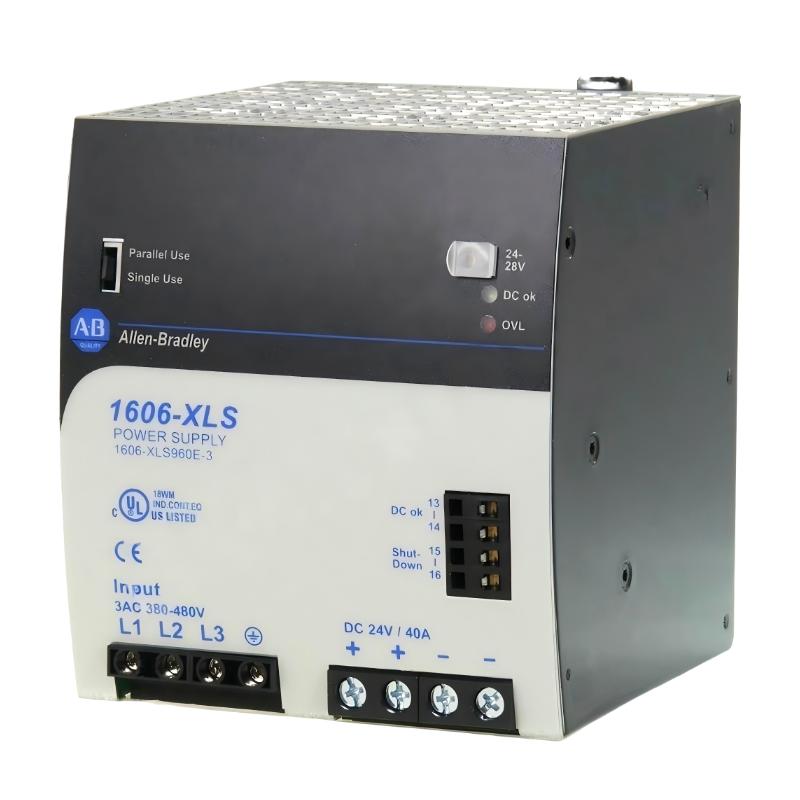

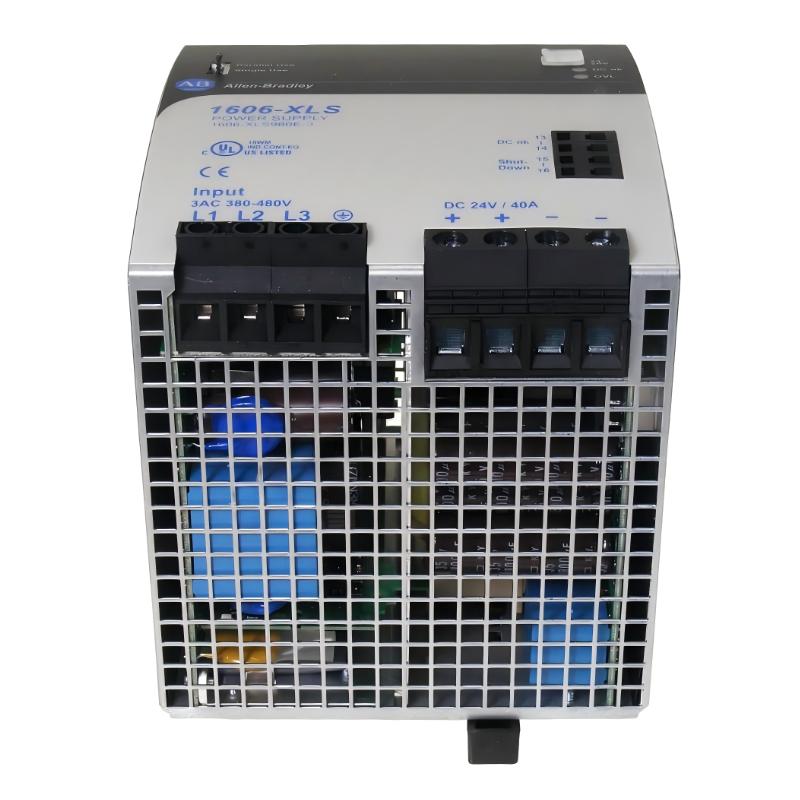

The Allen Bradley 1606-XLS960E-3 Power Supply delivers high-capacity, reliable, and efficient 24V DC power for industrial automation systems. Its compact yet robust design allows easy integration into control panels, while its advanced protection and monitoring features ensure safe operation. Ideal for engineers and system integrators seeking reliable power for high-demand industrial applications.
Technical Specifications
Specification
Details
Module Type
Power Supply Module
Input Voltage
85–264V AC
Output Voltage
24V DC
Output Current
Up to 40A
Efficiency
>90%
Protections
Overcurrent, short-circuit, thermal protection
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
-25°C to 70°C (-13°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Mounting
DIN rail or panel mountable
Dimensions (H × W × D)
127 × 110 × 124 mm (5 × 4.3 × 4.9 in)
Weight
1.5 kg (3.3 lbs)
Applications
The Allen Bradley 1606-XLS960E-3 Power Supply is designed for high-capacity industrial automation systems that demand reliable, continuous DC power. Key applications include:
Providing stable 24V DC power to Allen Bradley controllers, I/O modules, and communication devices.
High-demand factory automation, process control, and material handling systems.
Robotics, motor control, and precision manufacturing applications.
Integration into large control panels for industrial machinery.
Retrofitting or upgrading legacy Allen Bradley systems for modern, high-capacity power delivery.
This module ensures robust, reliable power for complex automation and industrial environments.
Advantages
High-Capacity Power Delivery: Supports larger automation systems with up to 40A output.
Compact Yet Robust Design: 127 × 110 × 124 mm, 1.5 kg – fits into standard control panels.
High Efficiency: Reduces energy losses and thermal stress on connected devices.
Industrial-Grade Durability: Resistant to vibration, shock, and temperature extremes.
Integrated Diagnostics: LED indicators for operational status and fault detection simplify monitoring.
Technical FAQs
What input voltage does it accept?
Operates with a wide AC input range: 85–264V AC.
What output voltage is provided?
Regulated 24V DC suitable for high-demand industrial devices.
What is the maximum output current?
Up to 40A, suitable for powering multiple controllers and I/O modules.
Does it include overload or short-circuit protection?
Yes, built-in overcurrent, short-circuit, and thermal protections.
Can it operate continuously in industrial conditions?
Yes, rated for 24/7 operation in demanding environments.
What is its typical efficiency?
High efficiency, typically above 90%, minimizing energy waste and heat generation.
Does it have thermal shutdown protection?
Yes, automatically shuts down in case of overheating.
Can it be mounted on a DIN rail?
Yes, compatible with standard DIN rail or panel mounting.
Does it maintain voltage stability under fluctuating load conditions?
Yes, output remains stable even with changing load demands.
Is regular maintenance required?
Minimal; periodic inspection of connections and status indicators is recommended.
