Introduction

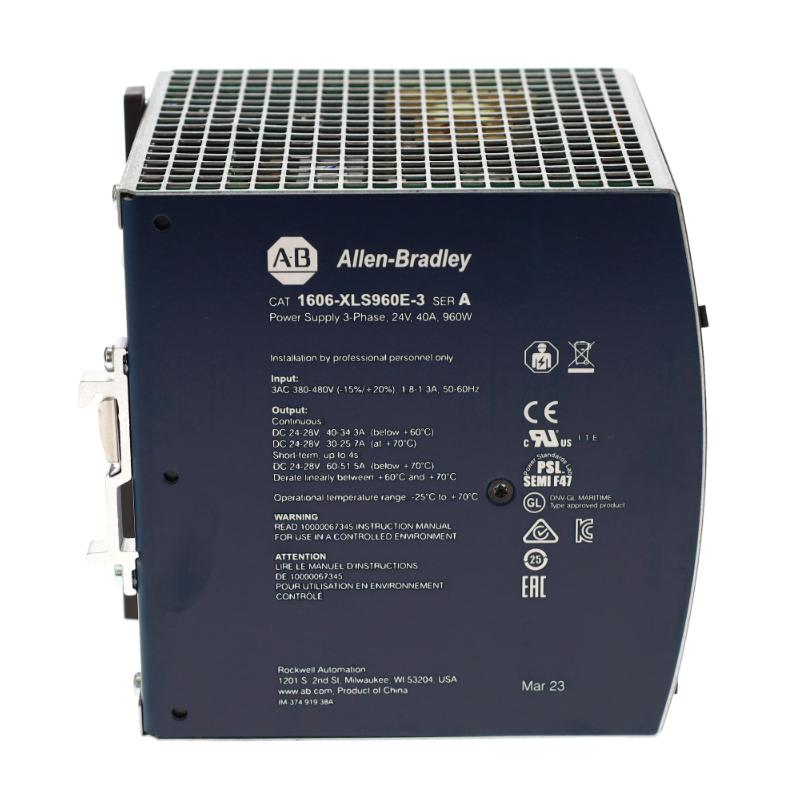

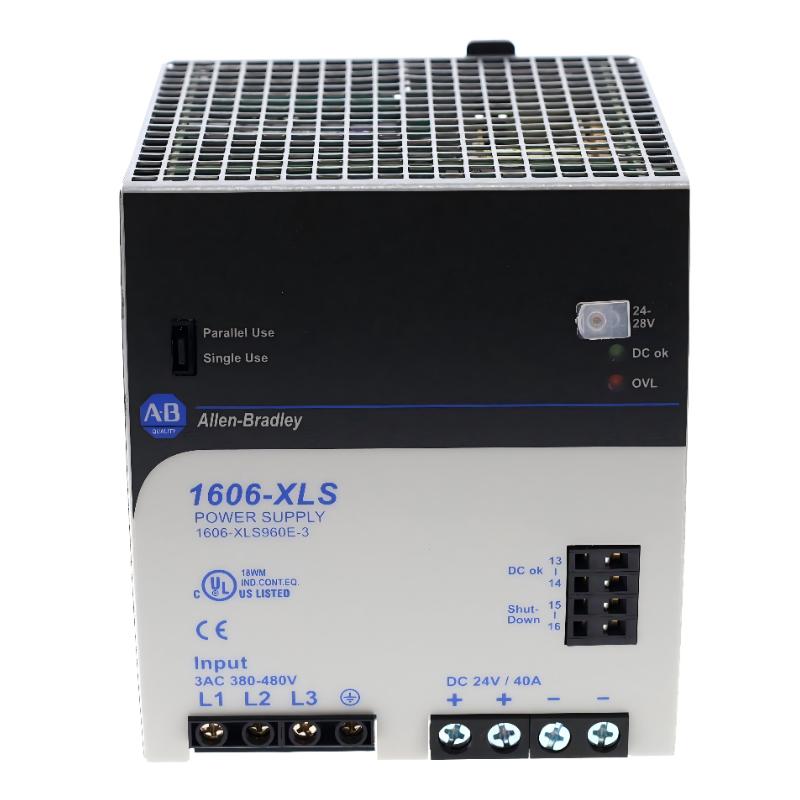

The Allen Bradley 1606-XLS960E-3/A Power Supply provides robust, high-capacity 24V DC power for industrial automation systems. Its compact and rugged design ensures long-term durability, while advanced protection and high efficiency make it ideal for large-scale automation, motion control, and high-demand industrial applications.

Technical Specifications

Specification	Details
Module Type	Power Supply Module
Input Voltage	85–264V AC
Output Voltage	24V DC
Output Current	Up to 40A
Efficiency	>90%
Protections	Overcurrent, short-circuit, thermal protection
Environmental Ratings	Shock, vibration, industrial temperature tolerant
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Mounting	DIN rail or panel mountable
Dimensions (H × W × D)	127 × 110 × 124 mm (5 × 4.3 × 4.9 in)
Weight	1.5 kg (3.3 lbs)

Applications

The Allen Bradley 1606-XLS960E-3/A Power Supply is built to deliver high-capacity, stable 24V DC power for demanding industrial automation systems. Key applications include:

Supplying Allen Bradley controllers, I/O modules, and industrial communication devices.
Powering large-scale automation systems in factories, processing plants, and material handling facilities.
Supporting robotics, motion control, and precision motor-driven applications.
Integration into machine control panels and distributed automation networks.
Retrofitting older systems requiring higher-capacity DC power with reliable output.

This module ensures continuous, high-quality power for complex and critical industrial environments.

Advantages

High-Capacity Power Delivery: Supports multiple high-demand devices simultaneously.
Stable and Reliable: Converts AC input into clean 24V DC with minimal ripple.
Compact Industrial Design: 127 × 110 × 124 mm, 1.5 kg – fits easily into panels or enclosures.
Rugged Durability: Resistant to vibration, shock, and wide temperature variations.
Integrated Diagnostics: LED indicators provide operational status and fault notifications.
Energy Efficient: High efficiency reduces heat generation and energy waste.

Technical FAQs

What input voltage range does it support?
Operates from 85–264V AC for global industrial compatibility.
What is the output voltage?
Provides regulated 24V DC output for stable operation.
How much current can it supply?
Designed for high-capacity output, up to 40A depending on system configuration.
Does it have protection features?
Yes, includes overcurrent, short-circuit, and thermal protection.
Can it run continuously in industrial environments?
Yes, rated for 24/7 operation under demanding conditions.
What is the efficiency rating?
High efficiency, typically exceeding 90%, minimizing energy loss.
Does it have thermal shutdown capability?
Yes, automatically shuts down in case of overheating.
Is it compatible with DIN rail or panel mounting?
Yes, supports both DIN rail and panel installation.
Does it maintain voltage stability under variable loads?
Yes, ensures consistent 24V DC even with fluctuating loads.
What maintenance is required?
Minimal; routine inspection of wiring and LED indicators is recommended.
