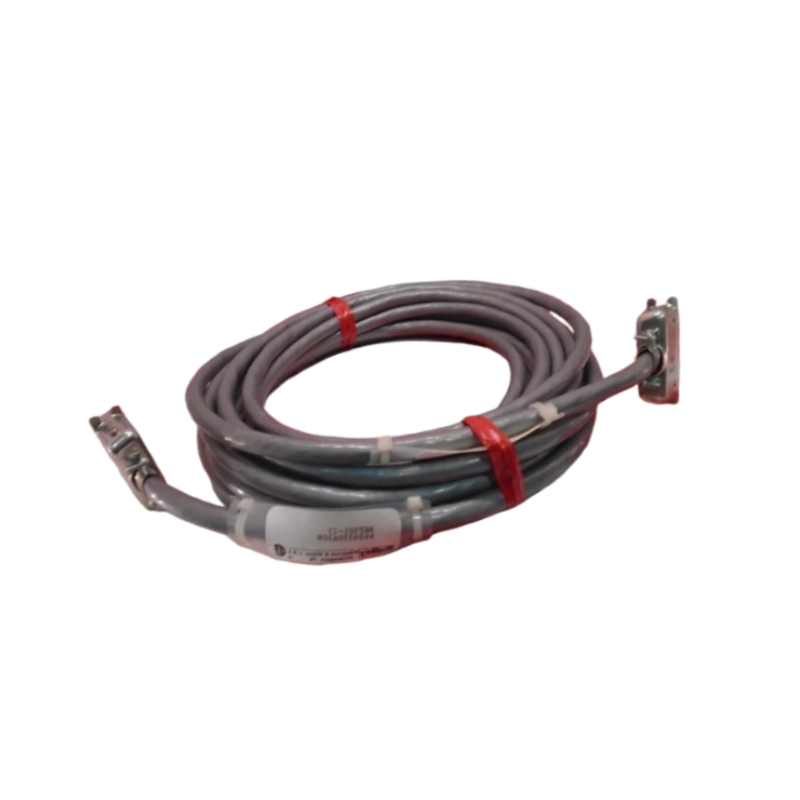

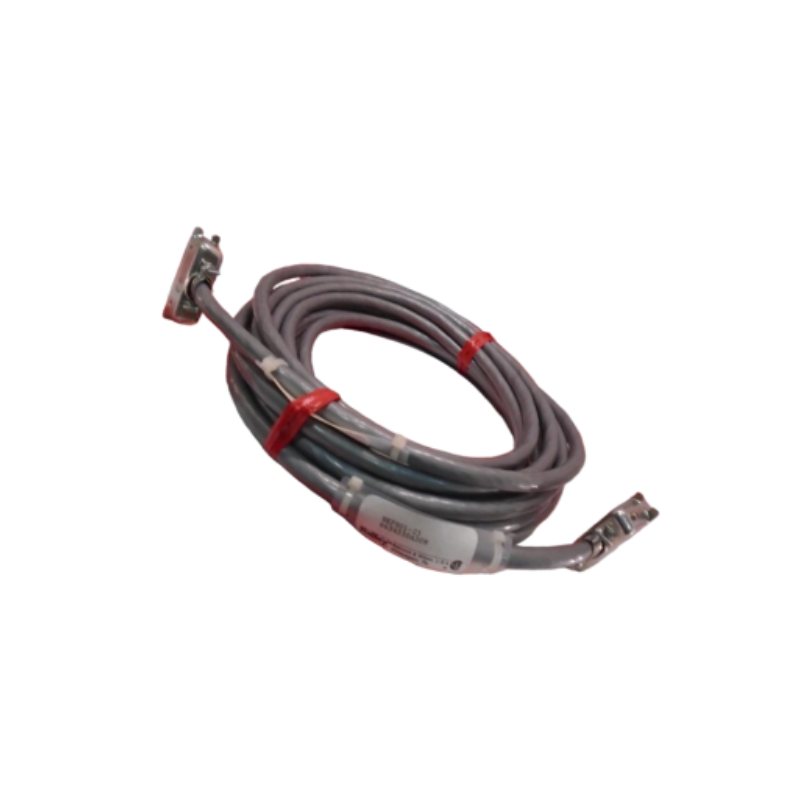

The ABB Bailey NKPR01-25 Printer Interface Cable is a dedicated industrial communication cable designed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS). It is used to establish a stable connection between system interface modules and industrial printers, enabling reliable data output, alarm logging, and process report printing in control room environments.
In mission-critical automation systems, accurate and uninterrupted data logging is essential. The NKPR01-25 ensures dependable transmission of system information to printer devices, supporting maintenance records, event tracking, and operational reporting without signal loss or interruption.
The 25-foot configuration provides extended routing flexibility, making it suitable for large control rooms and distributed cabinet layouts.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Printer Interface Cable |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | System-to-printer data communication |
| Cable Length | 25 ft (approximately 7.62 m) |
| Cable Type | Shielded industrial communication cable |
| Signal Transmission | Serial/communication data output |
| Connection Role | Controller module to printer interface |
| Cable Construction | Industrial-grade insulated and EMI-shielded design |
| Installation Environment | Industrial control room / cabinet |
| Operating Duty | Continuous industrial operation |
Industry references confirm NKPR01-25 is used as a 25 ft printer cable in ABB Bailey INFI 90 systems.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 360 mm × 360 mm × 85 mm |
| Weight | ~1.3–1.8 kg |
The extended cable length supports flexible installation between control racks and printer stations while maintaining stable signal integrity.
Recommended Related Models
- ABB Bailey NKLS01 Logic System Interface Cable
- ABB Bailey NKLM01-15 Logic Interface Cable
- ABB Bailey NICS01 Communication Slave Module
- ABB Bailey NIMP01 Multi-Function Processor Module
- ABB Bailey NIOP02 Operator Interface Module
These components are commonly used alongside NKPR01-25 to build complete monitoring, logging, and control room reporting systems.
