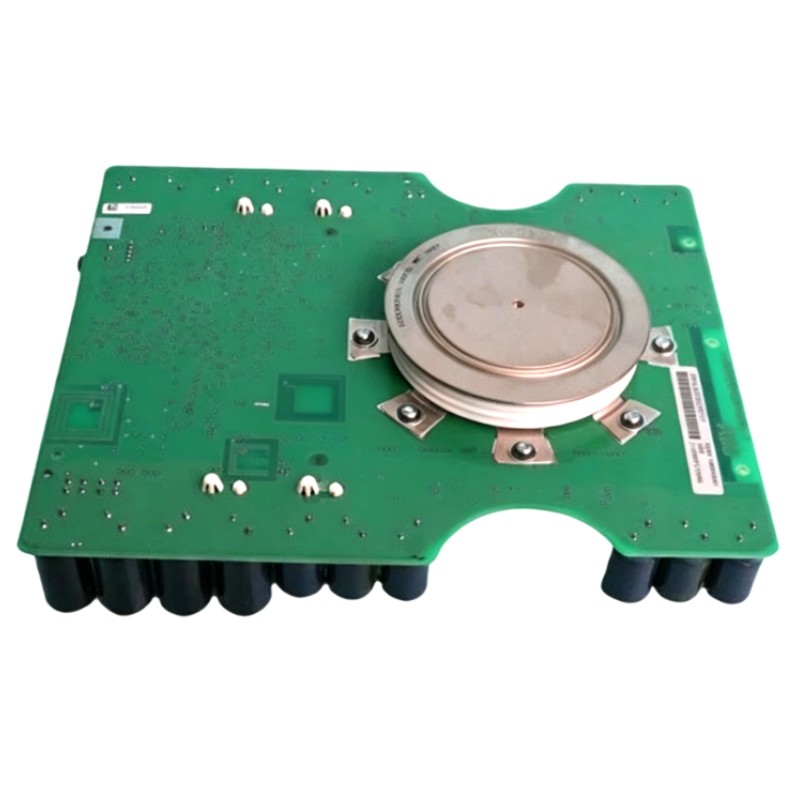

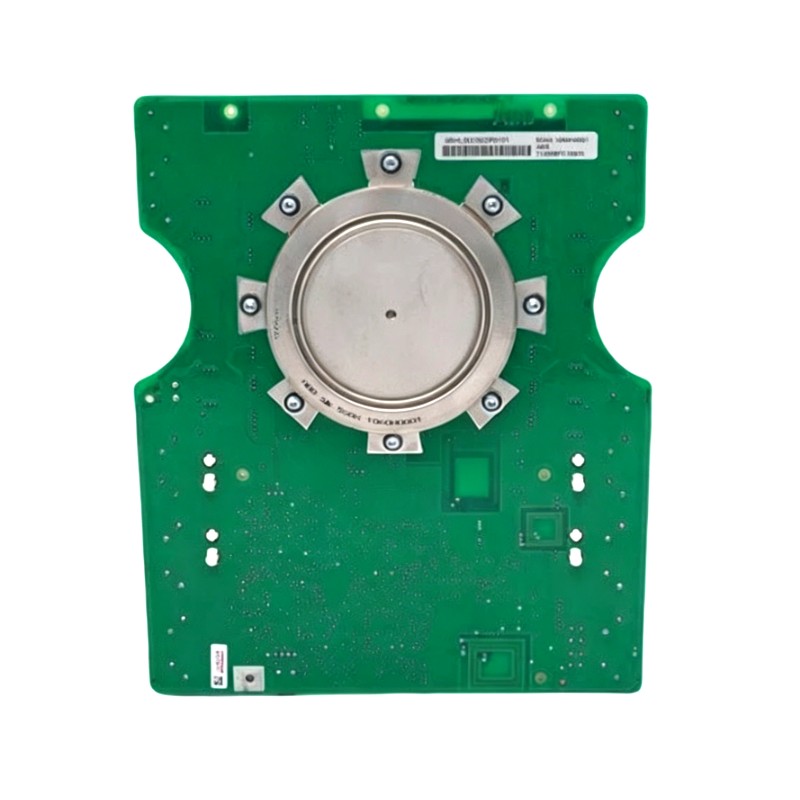

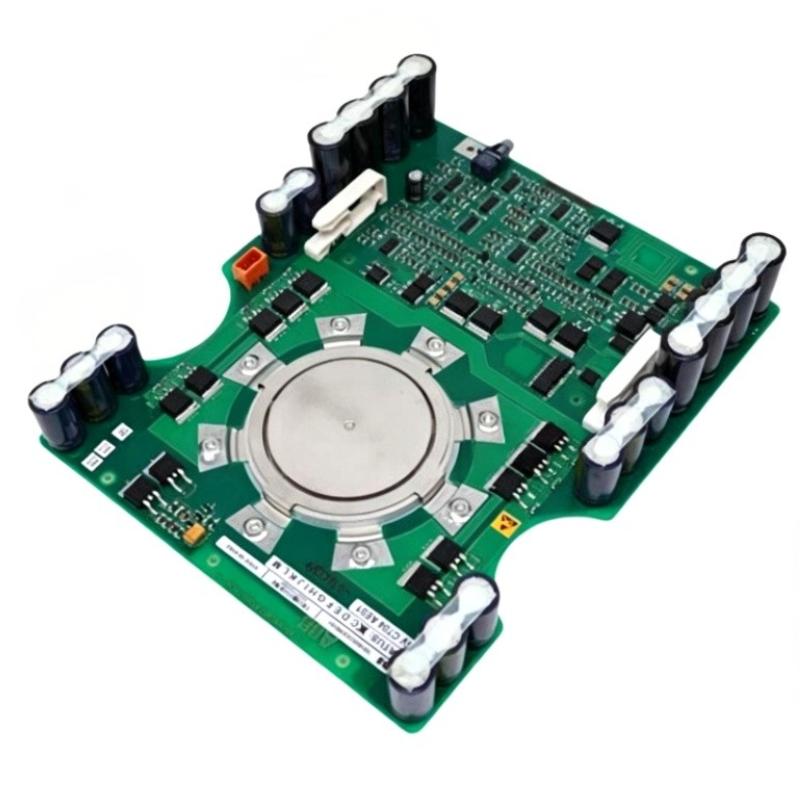

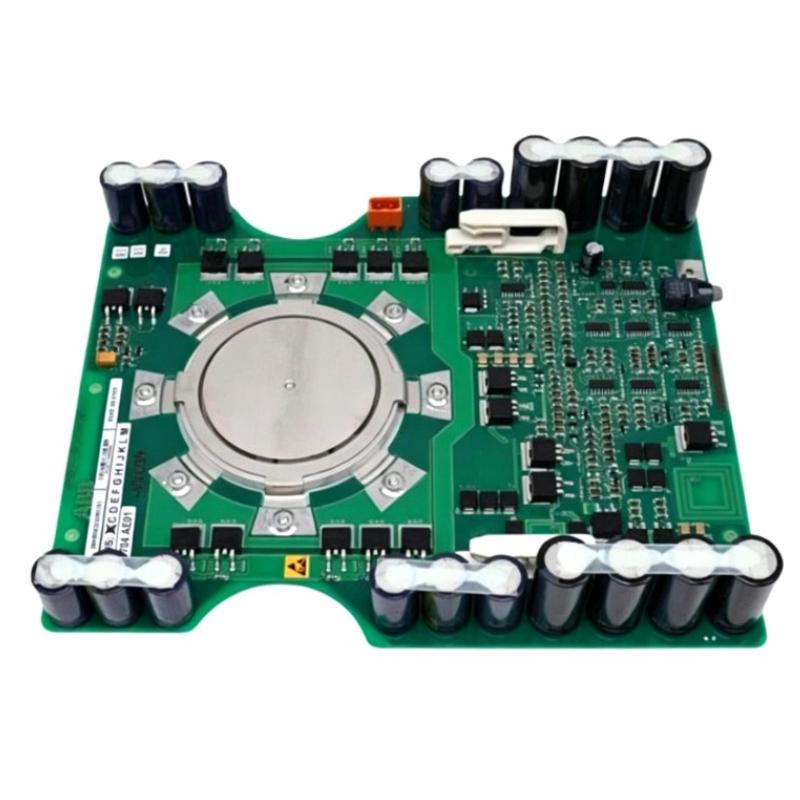

ABB 5SGX0845F0001 3BHL000385P0101 IGCT Module

Applications

• High-power switching in industrial drive and converter systems

• Medium-voltage drive (MVD) power conversion systems

• High-efficiency motor control in heavy industrial equipment

• Power electronics systems in steel, mining, and cement industries

• Renewable energy conversion systems (inverters and converters)

• Traction and large-scale industrial power regulation systems

Key Advantages

• IGCT technology enables high-current, high-voltage switching performance

• Improved efficiency compared to traditional thyristor-based solutions

• High reliability for demanding industrial power applications

• Compact design for integration into power electronic stacks

• Excellent thermal and electrical performance under heavy loads

• Suitable for continuous high-power operation environments

Technical FAQs

Q1: What is the main function of this module?
A: It is a high-power semiconductor switching device used in industrial power electronics.

Q2: What does IGCT mean?
A: Integrated Gate-Commutated Thyristor, a high-power switching semiconductor.

Q3: What systems is it used in?
A: Medium-voltage drives, converters, and industrial power control systems.

Q4: What industries use it most?
A: Steel mills, mining, cement, energy, and heavy industrial manufacturing.

Q5: Is it used for low-voltage control systems?
A: No, it is designed for high-power industrial applications.

Q6: Does it support continuous operation?
A: Yes, it is designed for high-duty industrial environments.

Q7: Is cooling required?
A: Yes, IGCT modules typically require external thermal management systems.

Q8: Can it be replaced easily?
A: It depends on the converter design, but replacement is typically done at system level.

Q9: Is it a control module or power device?
A: It is a power semiconductor device, not a control logic module.

Q10: Does it improve system efficiency?
A: Yes, IGCT technology improves switching efficiency in high-power systems.
