Introduction

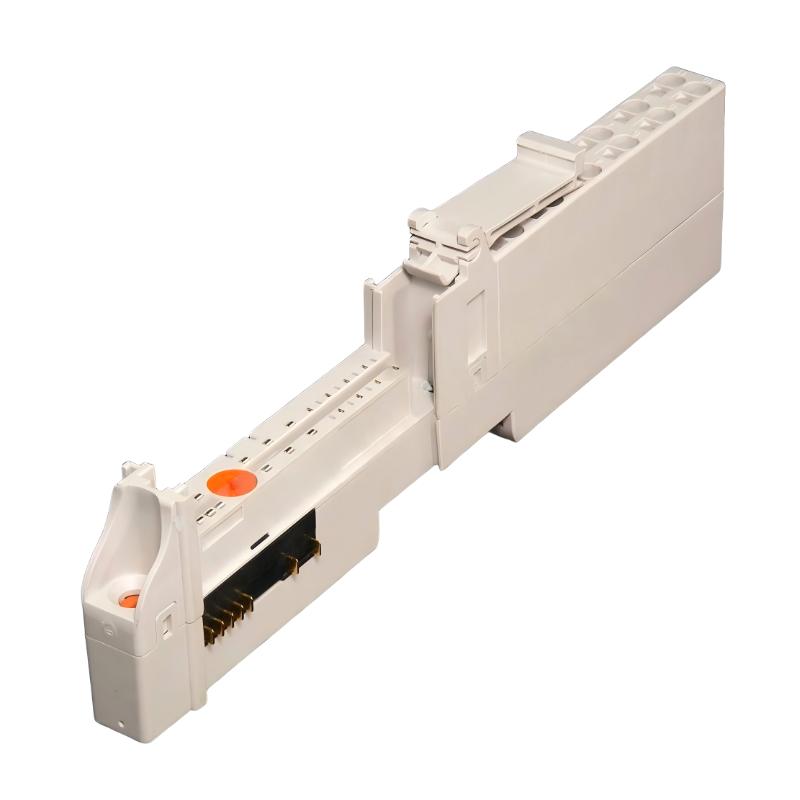

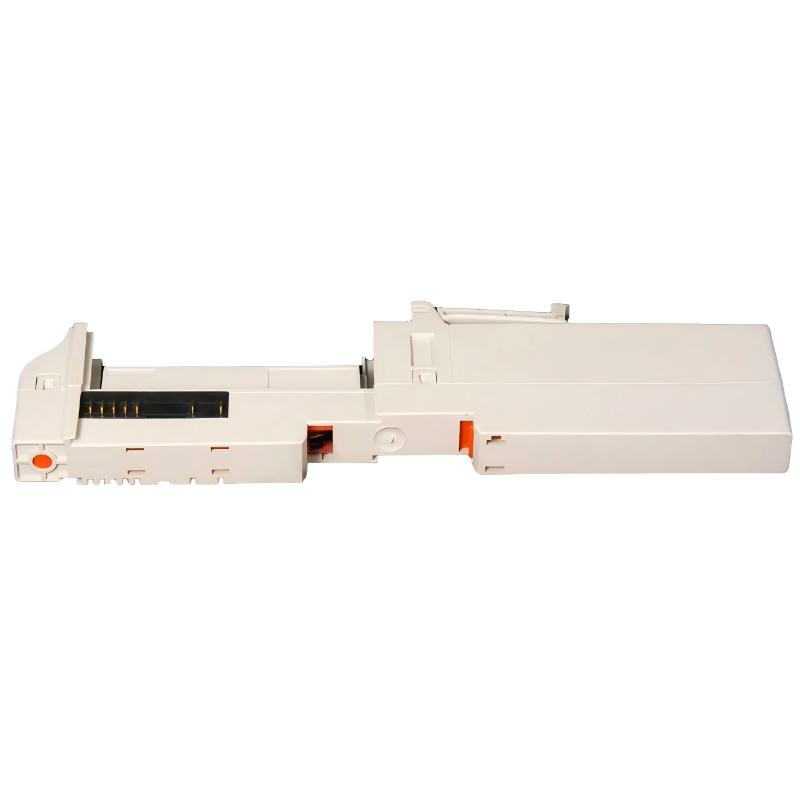

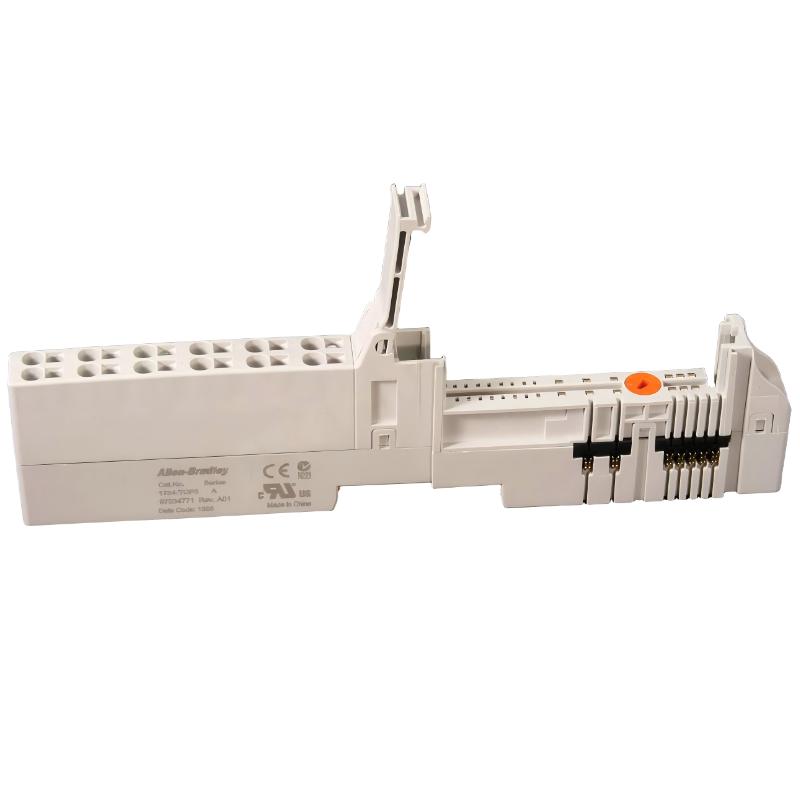

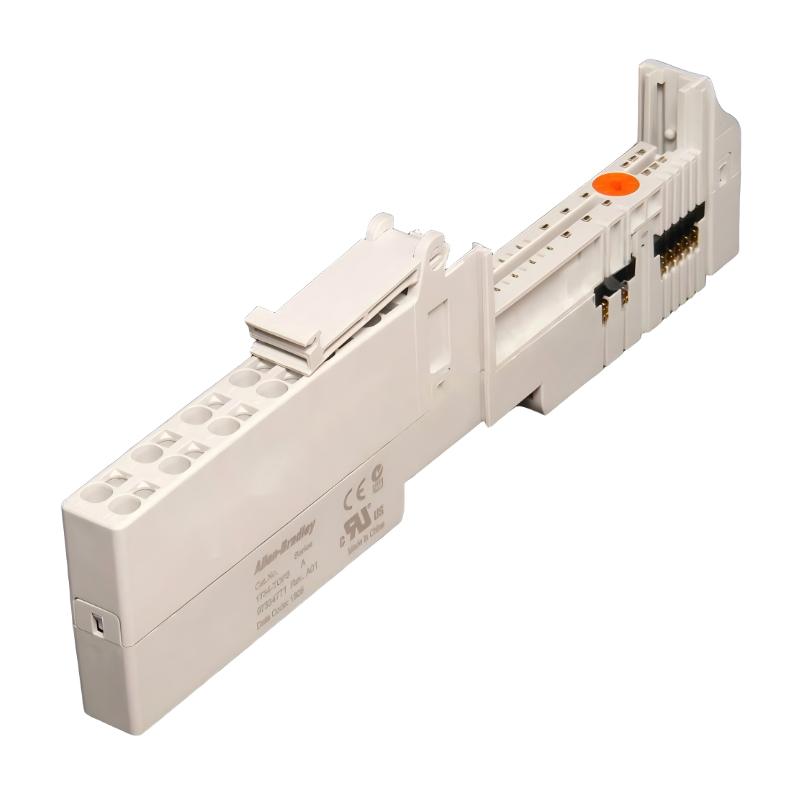

The Allen Bradley 1734-TOP3 Point I/O Terminal Dock is a compact, durable accessory that ensures reliable electrical connections for distributed Point I/O modules. Designed for ease of installation and organized wiring, this terminal dock is ideal for engineers who prioritize system reliability, modularity, and maintenance efficiency in automation networks.

Technical Specifications

Specification	Details
Module Type	I/O Module Accessory – Terminal Dock
Compatibility	Allen Bradley 1734 Point I/O Modules
Protections	Electrical isolation through secure terminal design
Environmental Ratings	Shock, vibration, industrial temperature tolerant
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Mounting	DIN rail or panel mountable
Dimensions (H × W × D)	168 × 12 × 49 mm (6.61 × 0.47 × 1.93 in)
Weight	0.079 kg (0.17 lbs)

Applications

The Allen Bradley 1734-TOP3 Point I/O Terminal Dock is designed to provide a secure and efficient termination interface for Point I/O modules in distributed automation systems. Key applications include:

Facilitating reliable connections between Point I/O modules and field wiring.
Serving as a docking station for modules in tight or modular panel configurations.
Supporting quick and organized wiring in manufacturing and process control systems.
Enhancing system reliability by minimizing loose connections and wiring errors.
Enabling easy module replacement or upgrades without complex rewiring.

This terminal dock ensures structured, safe, and reliable electrical connections, critical for modular automation networks.

Advantages

Compact and Lightweight: 168 × 12 × 49 mm, 0.079 kg – ideal for panels with limited space.
Secure Terminal Interface: Provides reliable electrical connections for Point I/O modules.
Ease of Installation: Snap-on design simplifies panel assembly and module replacement.
Durable Construction: Engineered for industrial environments with resistance to vibration and shock.
Organized Wiring: Reduces wiring clutter and minimizes connection errors.
Compatibility: Fully compatible with Allen Bradley 1734 Point I/O modules.

Technical FAQs

What is the primary function of the terminal dock?
Provides a secure interface for wiring connections to Point I/O modules.
Is it compatible with all Point I/O modules?
Designed for Allen Bradley 1734 Point I/O modules.
Can it support field wiring in harsh environments?
Yes, engineered for vibration, shock, and standard industrial conditions.
Is it easy to install?
Yes, features a snap-on design for quick installation on DIN rails or panels.
Does it improve system reliability?
Yes, ensures secure connections and minimizes loose wiring issues.
Can modules be replaced without rewiring?
Yes, the dock allows module replacement without disconnecting field wiring.
Is it suitable for compact or modular panels?
Yes, its slim form factor is ideal for space-constrained installations.
Does it support hot-swapping of modules?
Yes, supports safe removal and replacement depending on system configuration.
Are there indicators on the dock?
No, the dock itself does not provide LED indicators; module LEDs display status.
What mounting options are available?
Can be mounted on standard DIN rails or directly on panels.
