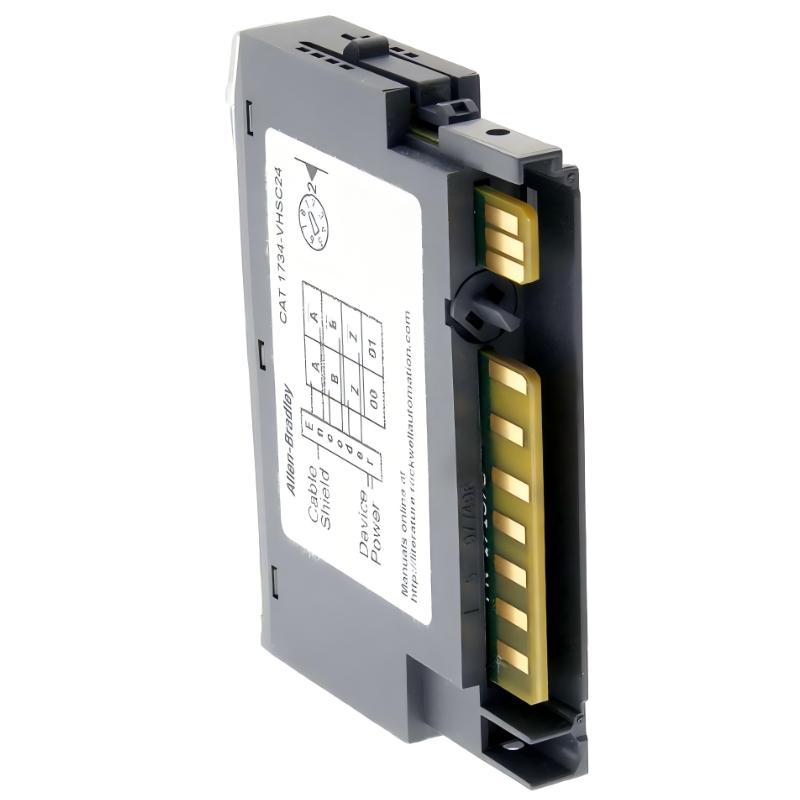

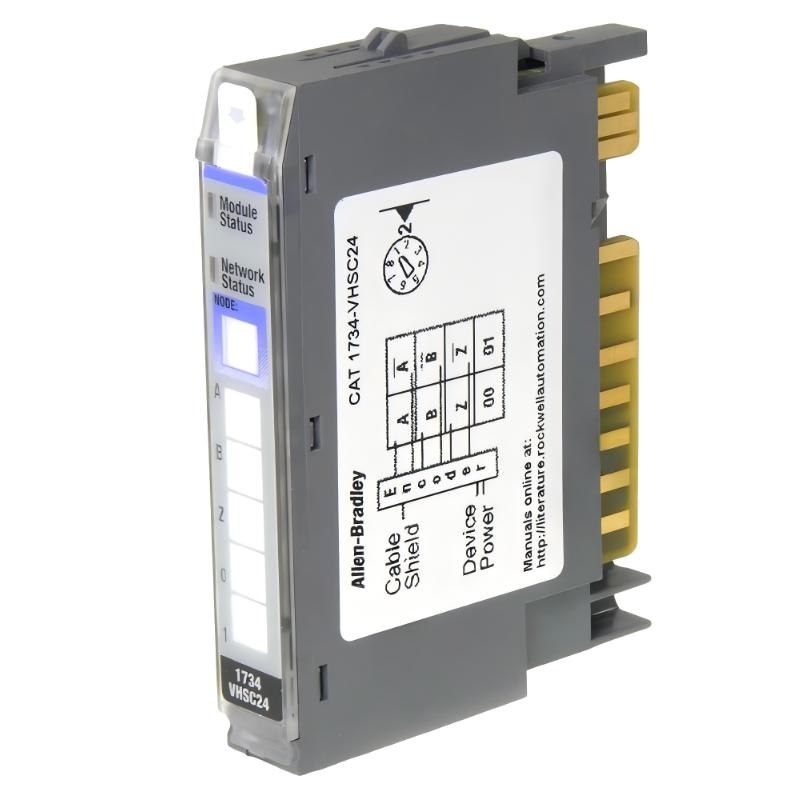

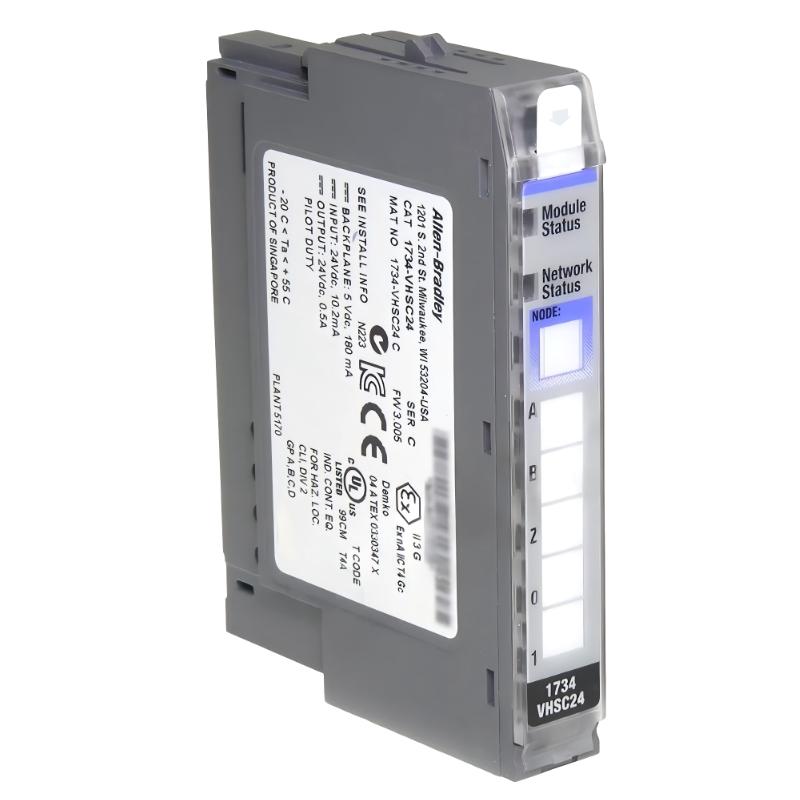

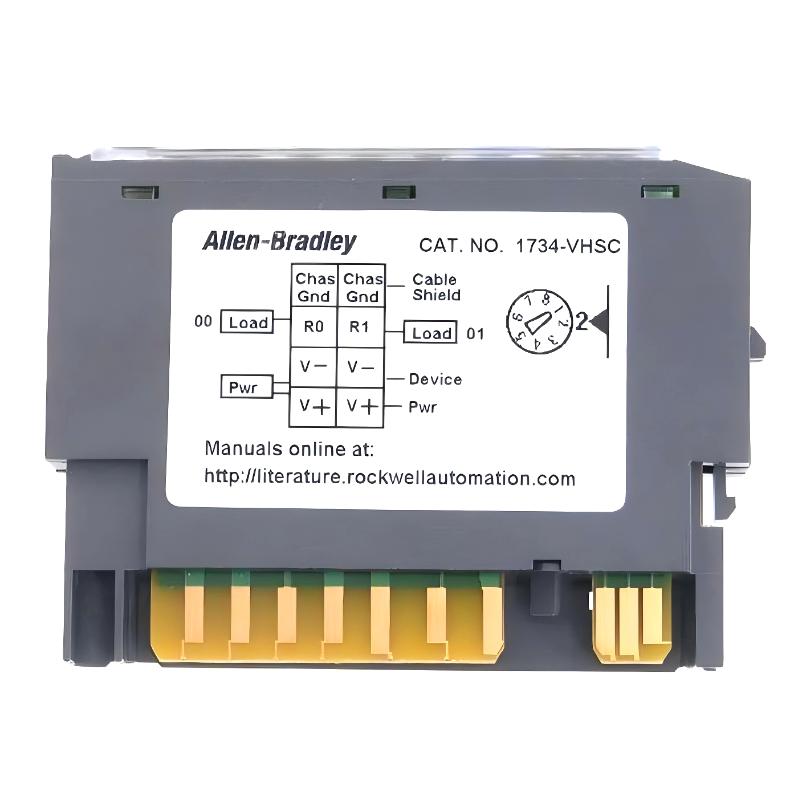

Allen Bradley 1734-VHSC24 Point I/O High-Speed ​​Counter Module

Applications

The Allen Bradley 1734-VHSC24 Point I/O High-Speed Counter Module is designed for precise counting and measurement in high-speed industrial applications. Key uses include:

• Counting pulses from encoders, proximity sensors, and flow meters.
• Measuring high-speed signals in manufacturing, packaging, and process control systems.
• Integrating with Point I/O networks for real-time data acquisition.
• Supporting automation tasks requiring fast and accurate event counting.
• Enhancing production line monitoring and feedback control in discrete and continuous systems.

This module ensures accurate, high-speed counting, critical for precision automation and process monitoring.

Advantages

• Compact and Lightweight: 75.5 × 12 × 56 mm, 0.03 kg – ideal for panels with limited space.
• High-Speed Counting: Capable of processing rapid input pulses for precise measurement.
• Flexible Input Channels: Supports multiple counter inputs simultaneously.
• Seamless Integration: Fully compatible with Allen Bradley 1734 Point I/O systems.
• LED Status Indicators: Provides visual feedback for each input channel.
• Low Power Consumption: Efficient operation minimizes heat generation in dense panels.

Technical FAQs

1. What is the primary function of this module?
   It counts high-speed pulses from digital sensors and devices.
2. What types of sensors can it interface with?
   Encoders, proximity sensors, flow meters, and other pulse-generating devices.
3. Is it compatible with Point I/O systems?
   Yes, fully compatible with Allen Bradley 1734 Point I/O networks.
4. What is the maximum counting frequency?
   Supports high-speed counting for fast-moving processes (consult product datasheet for exact frequency limits).
5. Does it include diagnostic indicators?
   Yes, LEDs indicate channel activity and module status.
6. Can it operate continuously in industrial environments?
   Yes, designed for 24/7 operation under standard industrial conditions.
7. Is it suitable for DIN rail mounting?
   Yes, can be mounted on standard DIN rails or panels.
8. Does it provide high accuracy?
   Yes, designed for precise counting in automation and control applications.
9. Is maintenance required?
   Minimal; inspect connections and LED indicators periodically.
10. Can it integrate with motion control systems?
    Yes, ideal for feedback loops and position monitoring in motion control applications.
