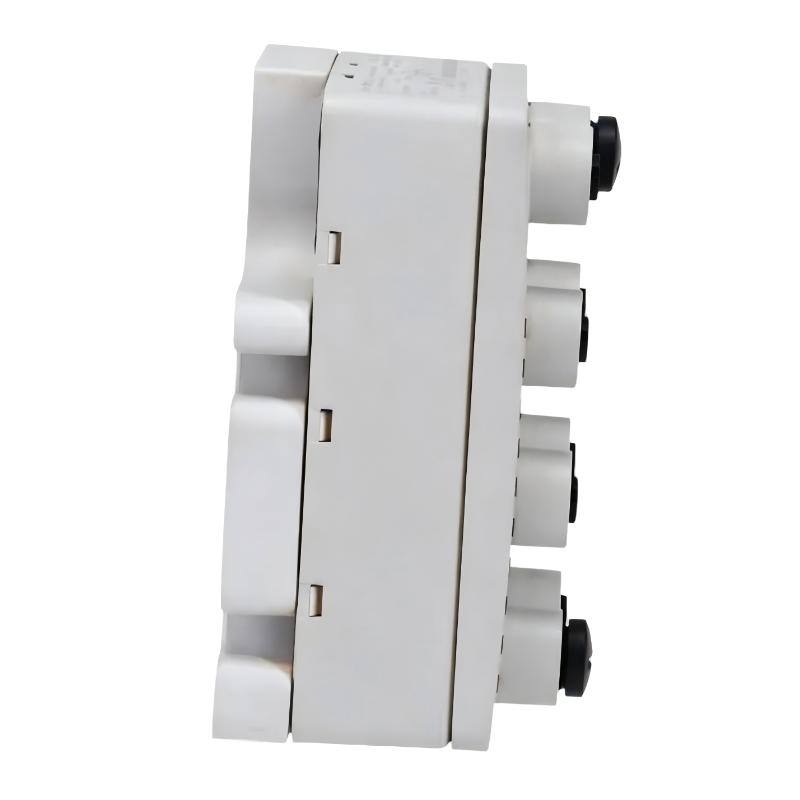

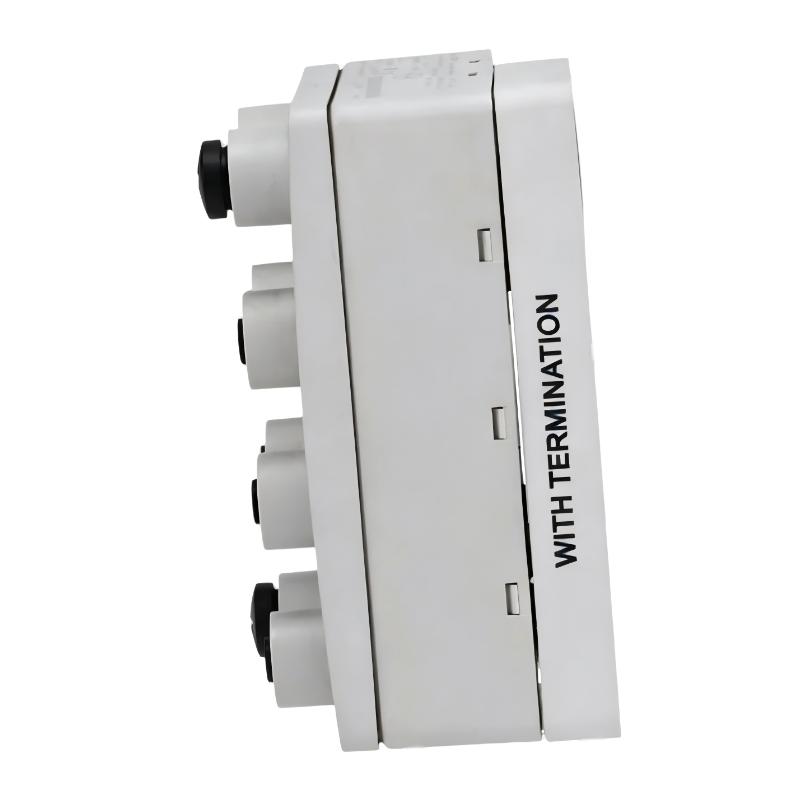

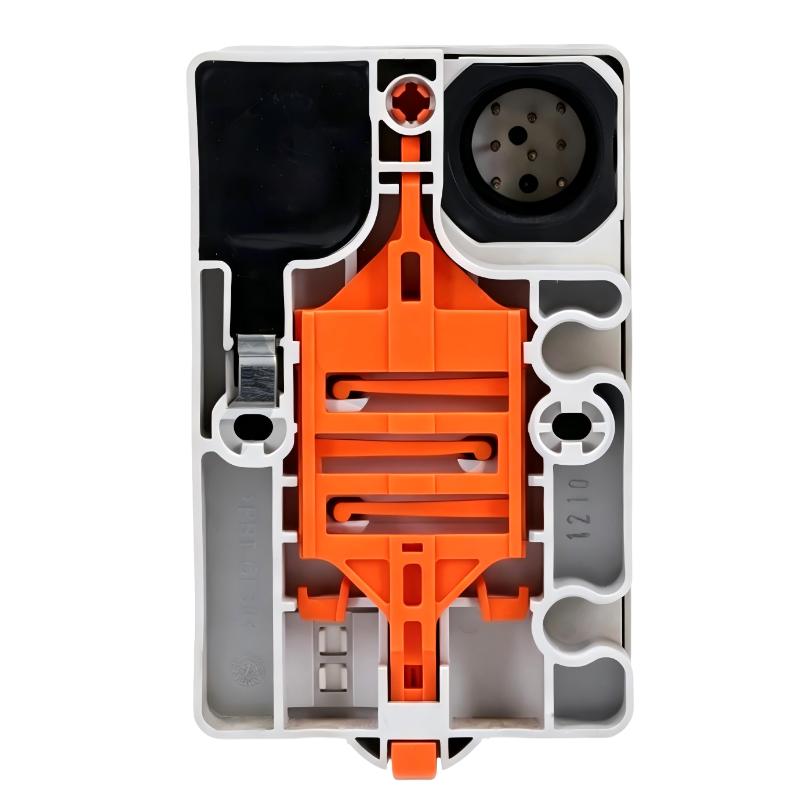

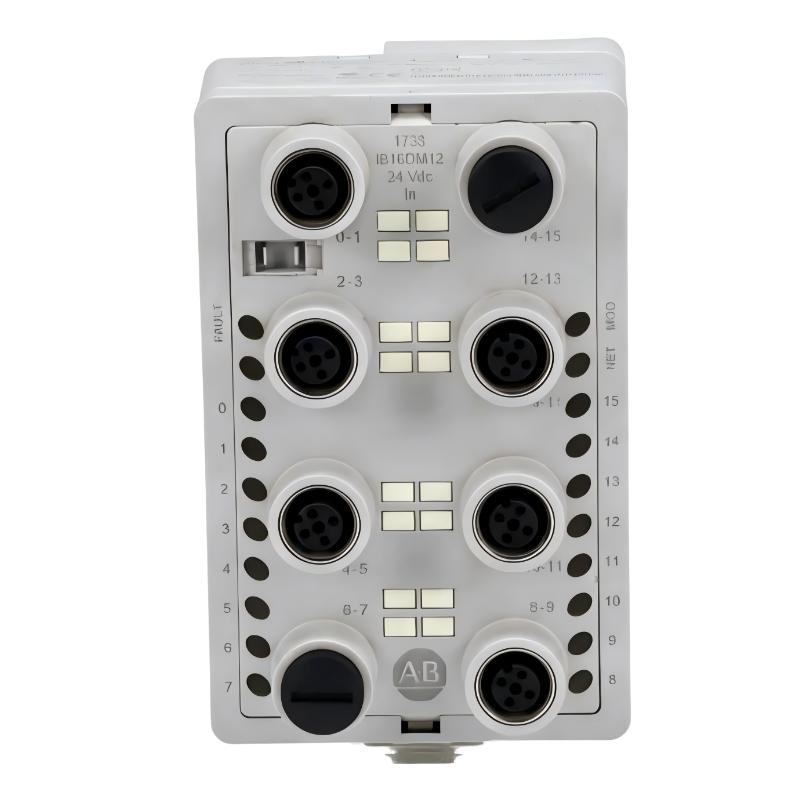

Allen Bradley 1738-IB16DM12 ArmorPoint Numeric Input Module
Allen Bradley 1738-IB16DM12 ArmorPoint Numeric Input Module
0.0
Points
Brand:Woodward Item No.:1738-IB16DM12 Product Origin:USA Product Dimensions:120 x 42 x 72 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1738-IB16DM12 ArmorPoint Numeric Input Module provides high-density, reliable digital input monitoring in a compact and rugged package. Ideal for distributed control systems, this module enables engineers to capture critical process and machine signals efficiently while maintaining system flexibility and robustness in challenging industrial environments.
Technical Specifications
Specification
Details
Module Type
I/O Module – Numeric Input
Input Channels
16 discrete numeric inputs
Input Type
Digital (sinking/sourcing compatible)
Compatibility
Allen Bradley 1738 ArmorPoint
Protections
Short-circuit and overload protection
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Mounting
DIN rail or panel mountable
Dimensions (H × W × D)
120 × 42 × 72 mm (4.72 × 1.65 × 2.83 in)
Weight
0.29 kg (0.64 lbs)
Applications
The Allen Bradley 1738-IB16DM12 ArmorPoint Numeric Input Module is engineered for precise monitoring of discrete signals in industrial automation environments. Common applications include:
Reading signals from push buttons, switches, and proximity sensors.
Collecting data from process sensors for real-time monitoring.
Integration into ArmorPoint I/O networks for modular and distributed control.
Monitoring production equipment and machinery status in manufacturing facilities.
Enabling high-density input systems in harsh or remote industrial environments.
This module is essential for engineers seeking reliable, high-density input capability in compact, rugged form factors.
Advantages
Compact and Lightweight: 120 × 42 × 72 mm, 0.29 kg – fits easily in constrained panel spaces.
High-Density Input: 16-point numeric input module for efficient signal monitoring.
Flexible Signal Handling: Accepts standard digital inputs from sensors and switches.
Rugged ArmorPoint Design: Resistant to vibration, shock, and industrial temperatures.
LED Indicators: Provides instant visual feedback for each input channel.
Seamless Network Integration: Fully compatible with Allen Bradley 1738 ArmorPoint I/O systems.
Technical FAQs
How many input points does this module provide?
16 discrete numeric input points.
What types of signals can it accept?
Digital inputs from switches, push buttons, and discrete sensors.
Is it compatible with ArmorPoint networks?
Yes, fully compatible with Allen Bradley 1738 ArmorPoint I/O networks.
Does it include status indicators?
Yes, LED indicators display the status of each input channel.
Can it operate in harsh industrial environments?
Yes, designed for shock, vibration, and industrial temperature ranges.
Is it DIN rail mountable?
Yes, supports both DIN rail and panel mounting.
Does it support hot-swapping?
Yes, modules can be replaced without shutting down the entire network, depending on configuration.
What is the response time of the inputs?
Designed for real-time monitoring; suitable for fast discrete signal detection.
Is maintenance required?
Minimal; routine inspection of wiring and LED status is sufficient.
Can it be integrated with other ArmorPoint modules?
Yes, designed for modular integration with other 1738 ArmorPoint input/output modules.
