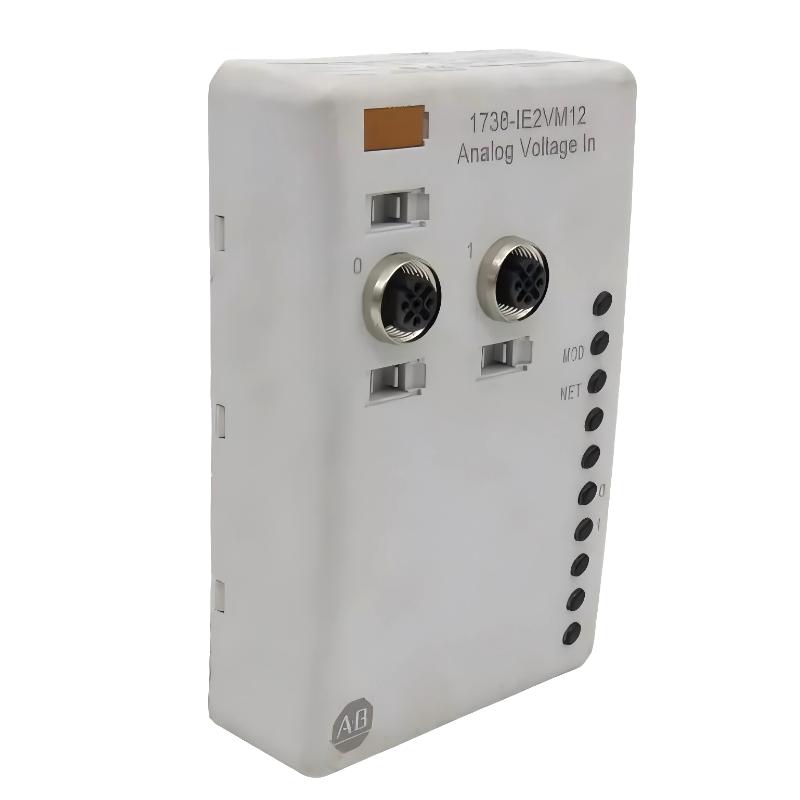

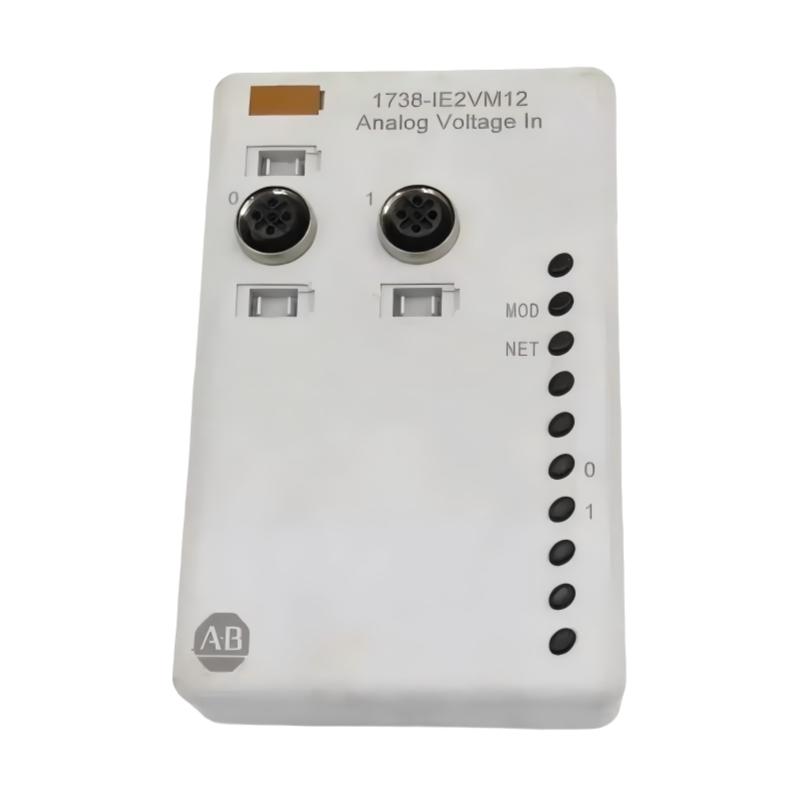

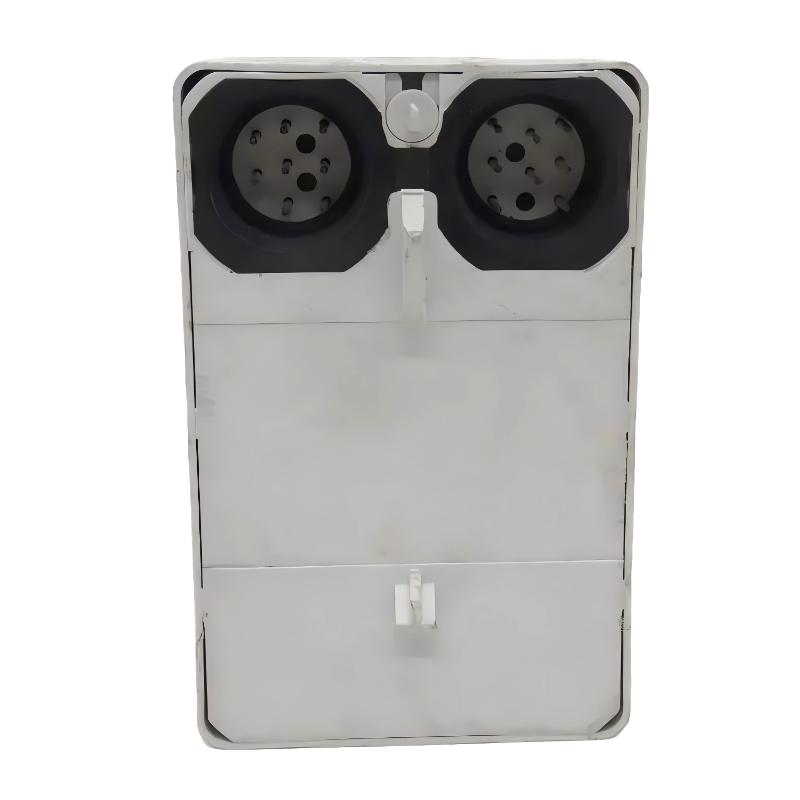

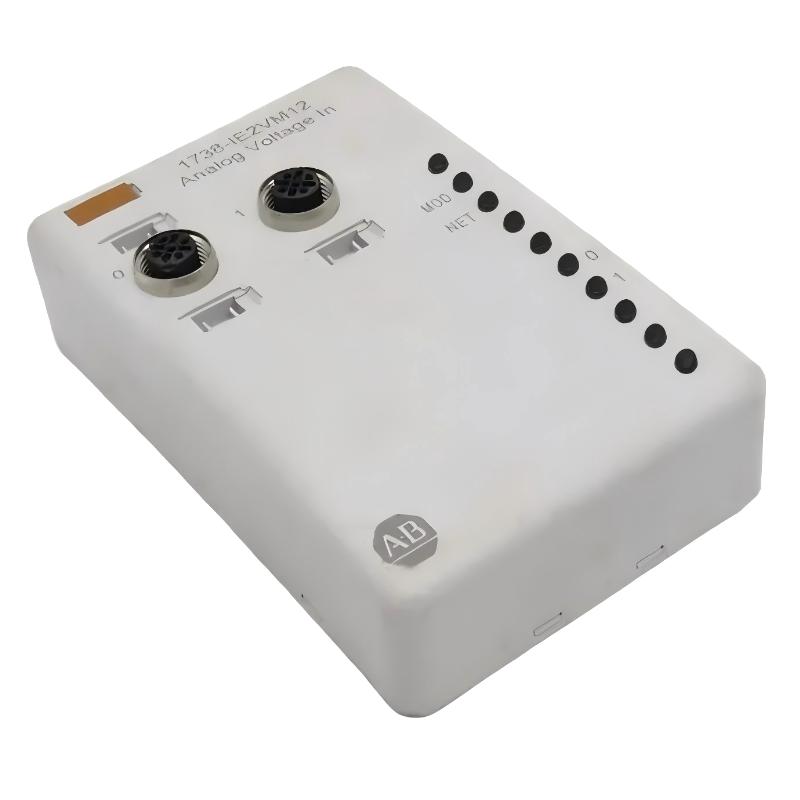

Allen Bradley 1738-IE2VM12 ArmorPoint Analog Input Module
Allen Bradley 1738-IE2VM12 ArmorPoint Analog Input Module
0.0
Points
Brand:Woodward Item No.:1738-IE2VM12 Product Origin:USA Product Dimensions:120 x 42 x 72 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1738-IE2VM12 ArmorPoint Analog Input Module provides precise analog data acquisition in a compact, rugged package. It is ideal for distributed control systems requiring high-quality analog monitoring for process control, production monitoring, and advanced automation. Its modular design and reliable performance make it a cornerstone component in modern industrial control networks.
Technical Specifications
Specification
Details
Module Type
I/O Module – Analog Input
Input Channels
2 analog input channels
Signal Types
Voltage (0–10 V), Current (4–20 mA)
Compatibility
Allen Bradley 1738 ArmorPoint
Protections
Overvoltage, short-circuit, diagnostic monitoring
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Mounting
DIN rail or panel mountable
Dimensions (H × W × D)
120 × 42 × 72 mm (4.72 × 1.65 × 2.83 in)
Weight
0.29 kg (0.64 lbs)
Applications
The Allen Bradley 1738-IE2VM12 ArmorPoint Analog Input Module is designed for precise acquisition of analog signals in industrial automation systems. Typical applications include:
Reading signals from temperature sensors, pressure transducers, and flow meters.
Monitoring variable process parameters in manufacturing and process control environments.
Integrating with ArmorPoint I/O networks for distributed analog monitoring.
Supporting real-time process control and feedback in production lines.
Collecting high-resolution analog data for advanced control and monitoring systems.
This module ensures accurate, reliable analog signal capture, essential for engineers requiring high-quality data acquisition in industrial systems.
Advantages
Compact and Lightweight: 120 × 42 × 72 mm, 0.29 kg – ideal for panel-mount or modular installations.
High-Precision Analog Input: Supports multiple analog input channels for voltage or current signals.
Flexible Signal Handling: Compatible with 0–10 V, 4–20 mA, and other standard analog signals.
Rugged ArmorPoint Design: Engineered to withstand vibration, shock, and industrial temperature ranges.
LED Indicators: Provides visual status of each input channel for rapid troubleshooting.
Seamless Network Integration: Fully compatible with Allen Bradley 1738 ArmorPoint systems.
Technical FAQs
How many analog input channels does this module provide?
It provides 2 high-precision analog input channels.
What types of signals are supported?
Voltage (0–10 V) and current (4–20 mA) standard analog signals.
Is it compatible with ArmorPoint I/O networks?
Yes, fully compatible with Allen Bradley 1738 ArmorPoint systems.
Does it provide channel diagnostics?
Yes, LED indicators display input activity and module status.
Can it operate in harsh industrial environments?
Yes, designed for shock, vibration, and industrial temperature ranges.
Is it DIN rail mountable?
Yes, supports both DIN rail and panel mounting.
Does it support high-resolution measurements?
Yes, designed for accurate analog signal acquisition in real-time systems.
Is hot-swapping supported?
Yes, modules can be replaced without shutting down the network, depending on configuration.
What is the response time for analog inputs?
Designed for real-time monitoring with minimal signal delay.
Can it integrate with other ArmorPoint modules?
Yes, designed for modular integration with other 1738 ArmorPoint input/output modules.
