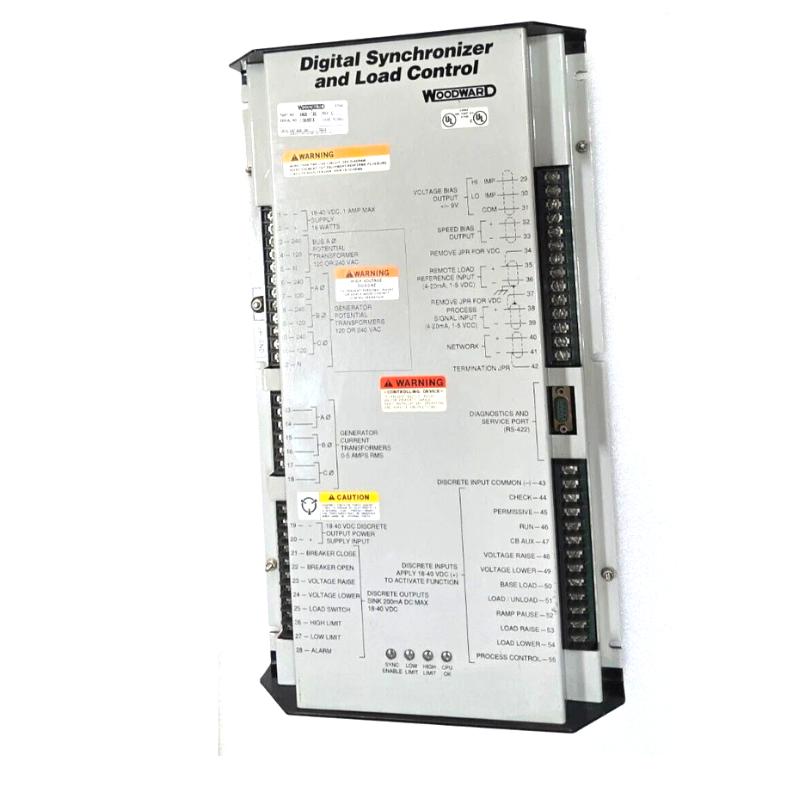

Name: Woodward 9905-795 DSLC Master Synchronizer And load Controller
Brand: Woodward
SKU: 9574
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 9905-795 DSLC Master Synchronizer and Load Controller offers industry-leading control for multi-generator systems. Combining precise synchronization, intelligent load management, and robust industrial design, it provides engineers with reliable and efficient power system operation. Its advanced features, scalable architecture, and user-friendly interface make it an indispensable component in modern energy and industrial automation systems.

Technical Specifications

Specification	Details
Module Type	DSLC Master Synchronizer and Load Controller
Generator Types Supported	Synchronous, Asynchronous
Control Functions	Master Synchronization, Automatic Load Sharing, Startup/Shutdown Sequencing
Communication	Ethernet, Digital Interfaces
Operating Voltage	24V DC ±10%
Operating Temperature	-20°C to 70°C
Protection Features	Overcurrent, Overvoltage, Fault Detection
Mounting Options	Panel or Rack Mount
Dimensions (L x W x H)	403.86 mm x 264.16 mm x 58.42 mm
Weight	2.54 kg (5.6 lb)

Applications

The Woodward 9905-795 DSLC Master Synchronizer and Load Controller is engineered for high-precision power management in industrial, marine, and utility applications. Perfect for coordinating multiple generator sets, automatic load sharing, and advanced synchronization tasks, it ensures reliable power distribution and optimal system performance. It is ideal for power plants, backup power systems, and mission-critical industrial installations.

Advantages

Master-Level Synchronization: Maintains precise phase and voltage alignment across multiple generators.
Advanced Load Management: Automatic load sharing optimizes efficiency and minimizes fuel consumption.
User-Friendly Operation: Clear displays and intuitive interface simplify monitoring and adjustments.
Rugged Industrial Design: Withstands vibration, temperature extremes, and other demanding conditions.
Scalable and Flexible: Fully compatible with other Woodward ProAct modules for networked control solutions.

Technical FAQs

Q: What types of generators can the 9905-795 control?
A: Supports synchronous and asynchronous generators across industrial and marine systems.
Q: How does it manage multiple generator sets?
A: Continuously monitors each generator, synchronizing phase, voltage, and load automatically.
Q: Is remote monitoring possible?
A: Yes, supports Ethernet and digital interfaces for remote control and supervision.
Q: How quickly does the module respond to load changes?
A: Load adjustments occur in real-time, ensuring stable and balanced power delivery.
Q: What protection features are included?
A: Built-in overcurrent, overvoltage, and fault detection safeguards connected equipment.
Q: Can the firmware be updated in the field?
A: Yes, secure in-field firmware updates are supported without system downtime.
Q: Does it support automated startup sequences?
A: Fully programmable for automatic generator start, stop, and load transfer sequences.
Q: Can it coordinate with other Woodward modules?
A: Yes, designed for integration with ProAct and DSLC series modules for advanced networked control.
Q: How does it handle calibration?
A: Onboard calibration routines ensure accurate synchronization and load management.
Q: What operating conditions can it withstand?
A: Designed for industrial use, supporting -20°C to 70°C and high-vibration environments.
