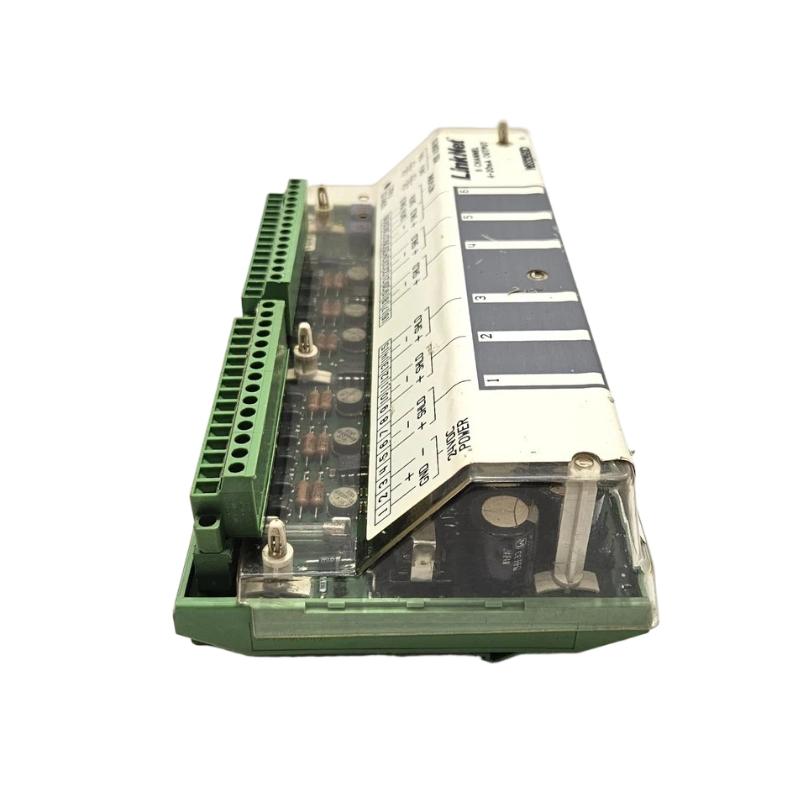

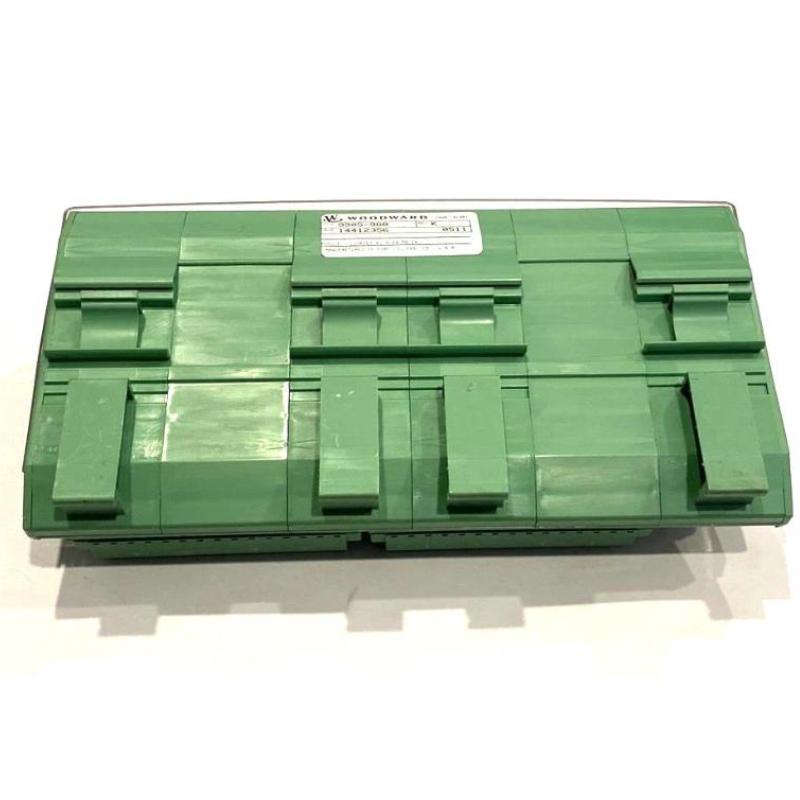

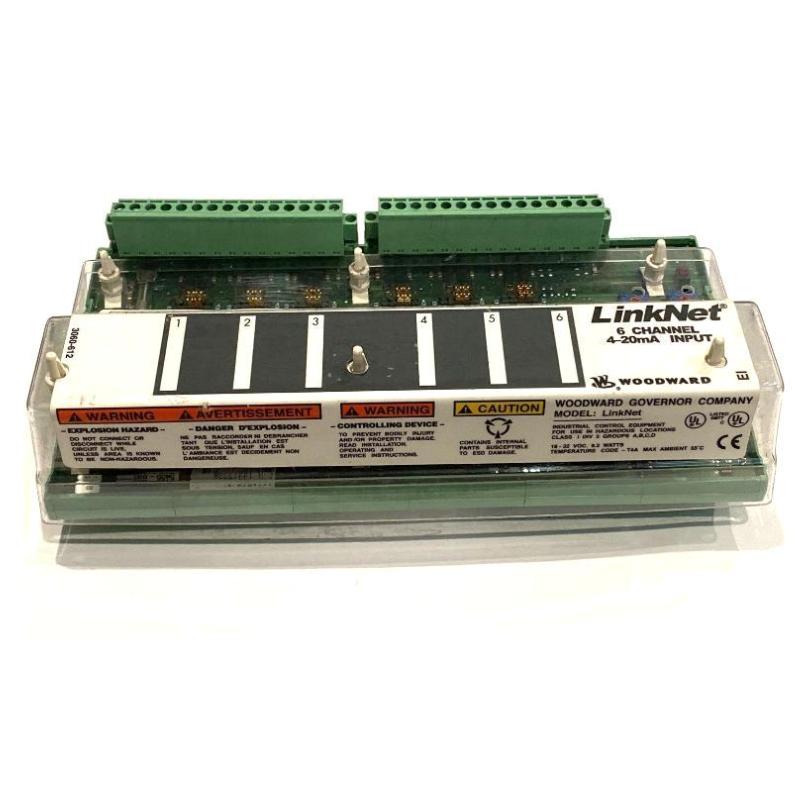

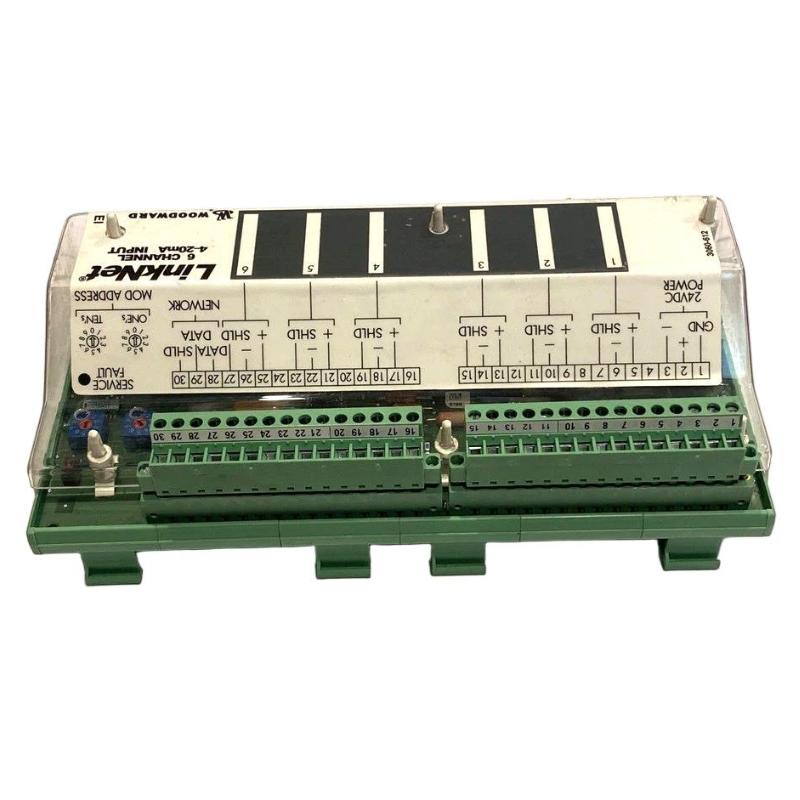

Name: Woodward 9905-968 6-Channel Output Module
Brand: Woodward
SKU: 9582
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 9905-968 6-Channel Output Module delivers reliable, precise, and flexible signal distribution for modern industrial and energy control systems. Compact yet powerful, it enables efficient integration of multiple outputs into complex networks, ensuring accurate control and streamlined operations. Its robust design and advanced features make it an essential module for engineers seeking dependable system performance.

Technical Specifications

Specification	Details
Module Type	6-Channel Output Module
Output Channels	6 Independent Channels
Output Types	Digital and Analog
Communication	Compatible with Woodward ProAct modules
Operating Voltage	12–24V DC
Operating Temperature	-20°C to 70°C
Protection Features	Overcurrent, Fault Detection
Mounting Options	DIN rail, Panel Mount
Dimensions (L x W x H)	160 mm x 100 mm x 40 mm
Weight	0.59 kg (1.3 lb)

Applications

The Woodward 9905-968 6-Channel Output Module is engineered for flexible and reliable signal distribution in industrial and energy systems. Ideal for generator control, engine management, and automation systems, it provides precise output signals to multiple devices. Its compact design ensures seamless integration into existing control networks while maintaining high reliability under demanding conditions.

Advantages

Multi-Channel Flexibility: Supports six independent output channels for diverse control applications.
Reliable Performance: Industrial-grade design ensures consistent operation in harsh environments.
Compact and Space-Saving: Minimal footprint allows easy installation in tight control panels.
Fast Response: Delivers accurate output signals in real time for dynamic system demands.
Easy Integration: Compatible with Woodward controllers and ProAct modules for seamless system expansion.

Technical FAQs

Q: What type of outputs does the 9905-968 module provide?
A: Supports digital and analog output signals compatible with Woodward control systems.
Q: Can all six channels operate independently?
A: Yes, each channel can be configured and controlled independently.
Q: Is the module suitable for harsh industrial conditions?
A: Yes, designed for temperature extremes, vibration, and industrial-grade reliability.
Q: Can it be integrated with existing Woodward controllers?
A: Yes, fully compatible with ProAct and other Woodward modules.
Q: How is system protection implemented?
A: Built-in overcurrent and fault detection protect both the module and connected devices.
Q: Can multiple 9905-968 modules be networked?
A: Yes, modules can work together for expanded output requirements.
Q: What is the typical response time?
A: Outputs respond in milliseconds for precise real-time control.
Q: Is firmware upgradable?
A: Yes, firmware updates can be applied in the field without downtime.
Q: What mounting options are available?
A: Supports DIN rail and panel mounting for flexible installation.
Q: What operating voltage does it require?
A: Operates on 12–24V DC power supply.
