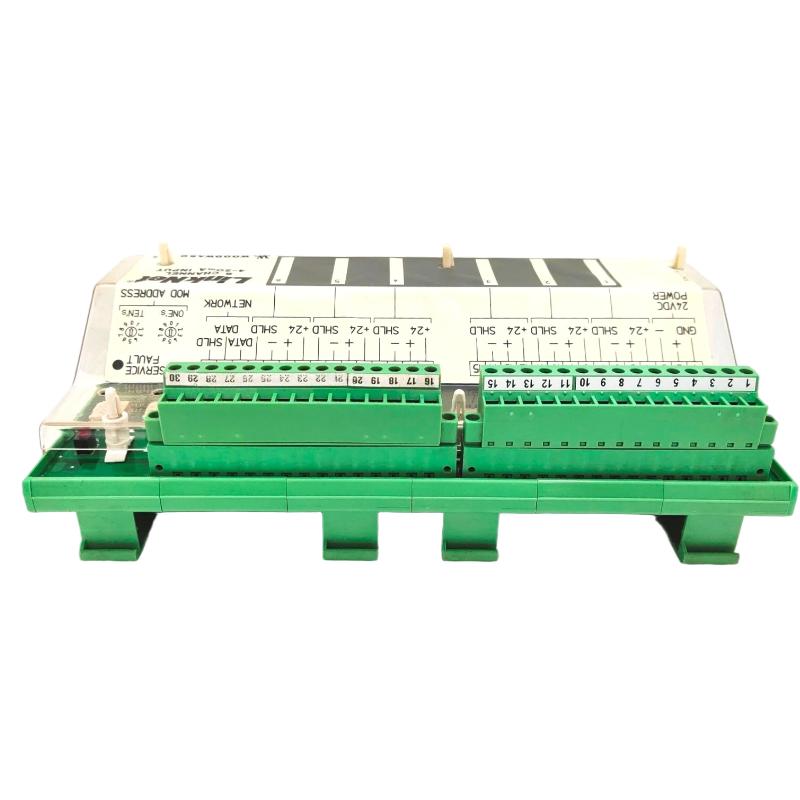

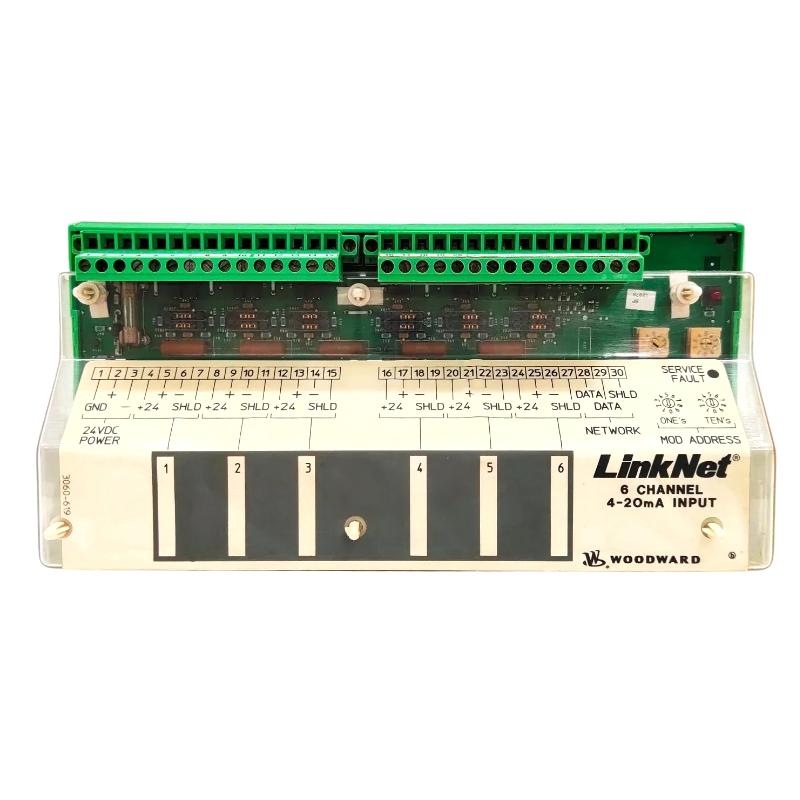

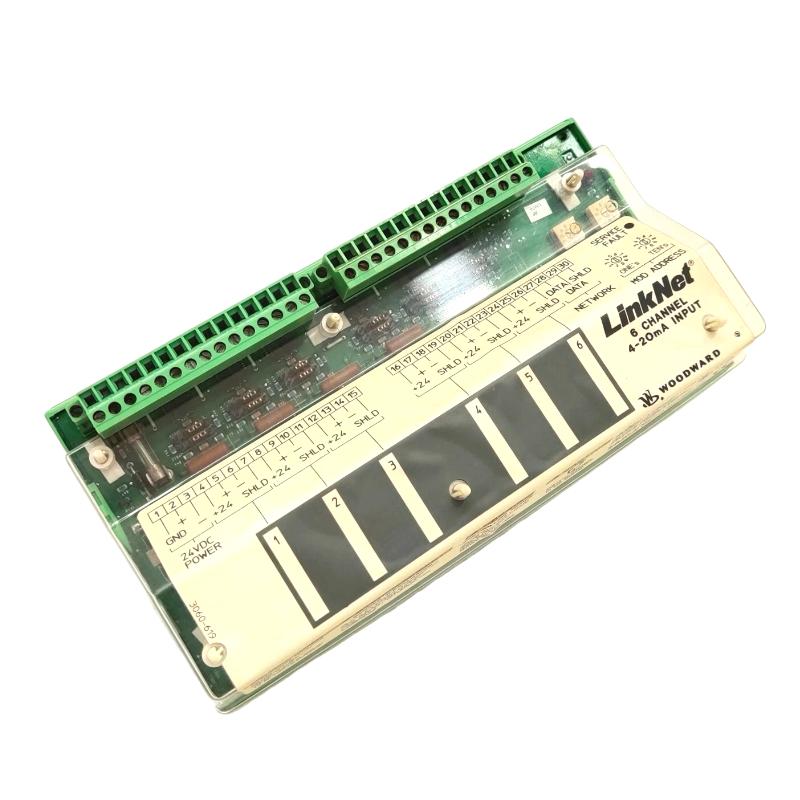

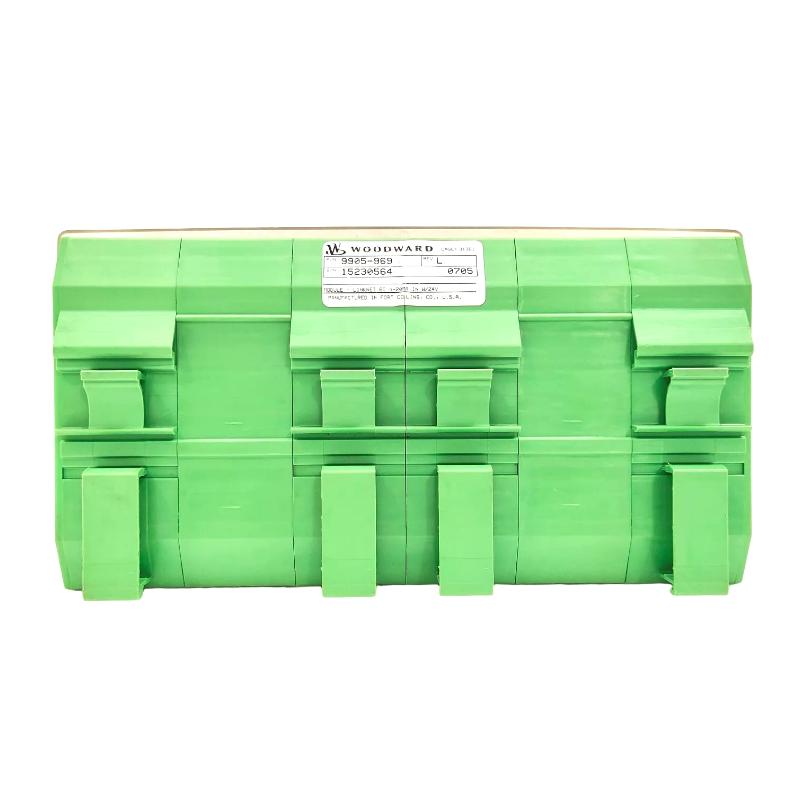

Name: Woodward 9905-969 Linknet 6-Channel Analog Input Module
Brand: Woodward
SKU: 9584
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 9905-969 Linknet 6-Channel Analog Input Module provides accurate, reliable, and flexible analog signal acquisition for modern industrial and energy control systems. With six independent input channels, robust industrial design, and seamless network integration, this module enables operators and engineers to achieve precise monitoring and control across complex automation setups.

Technical Specifications

Specification	Details
Module Type	6-Channel Analog Input Module
Input Channels	6 Independent Channels
Signal Types	Analog Voltage and Current
Communication	Compatible with Woodward Linknet and ProAct modules
Operating Voltage	12–24V DC
Operating Temperature	-20°C to 70°C
Protection Features	Overvoltage, Fault Detection
Mounting Options	DIN rail, Panel Mount
Dimensions (L x W x H)	355.6 mm x 279.4 mm x 101.6 mm
Weight	4.13 kg (9.1 lb)

Applications

The Woodward 9905-969 Linknet 6-Channel Analog Input Module is designed for precise signal acquisition in complex industrial and energy systems. Ideal for monitoring engine parameters, generator inputs, and process variables, this module ensures accurate and reliable analog signal conversion. It is perfect for applications requiring robust data collection and seamless integration into digital control networks.

Advantages

High-Fidelity Signal Acquisition: Six independent analog input channels provide precise measurement of system parameters.
Reliable Performance: Industrial-grade design ensures consistent operation under extreme temperature and vibration conditions.
Flexible Integration: Compatible with Woodward controllers and ProAct systems for networked automation.
Streamlined Installation: DIN rail or panel mounting for flexible deployment in control panels.
Real-Time Monitoring: Rapid signal processing allows for immediate feedback and control adjustments.

Technical FAQs

Q: What types of signals can the 9905-969 module read?
A: Supports standard analog voltage and current signals compatible with industrial control systems.
Q: Can all six channels operate independently?
A: Yes, each channel can be configured and processed independently for precise control.
Q: Is the module suitable for harsh industrial environments?
A: Yes, designed for vibration, shock, and temperature extremes (-20°C to 70°C).
Q: Can it be integrated with existing Woodward controllers?
A: Yes, fully compatible with Linknet, ProAct, and other Woodward control modules.
Q: How is signal protection implemented?
A: Built-in overvoltage and fault detection safeguards the module and connected systems.
Q: Can multiple modules be networked together?
A: Yes, modules can be combined for expanded input capacity.
Q: What is the response time for signal acquisition?
A: Signals are processed in milliseconds, enabling real-time monitoring and control.
Q: Is firmware upgradable?
A: Yes, firmware updates can be applied securely in the field without interrupting operation.
Q: What mounting options are available?
A: Supports both DIN rail and panel mounting for flexible installation.
Q: What operating voltage is required?
A: Operates on 12–24V DC power supply.
