Brand:Woodward Item No.:9905-970 Product Origin:USA Product Dimensions:355.6 x 279.4 x 101.6 mm Product Weight:4.13 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

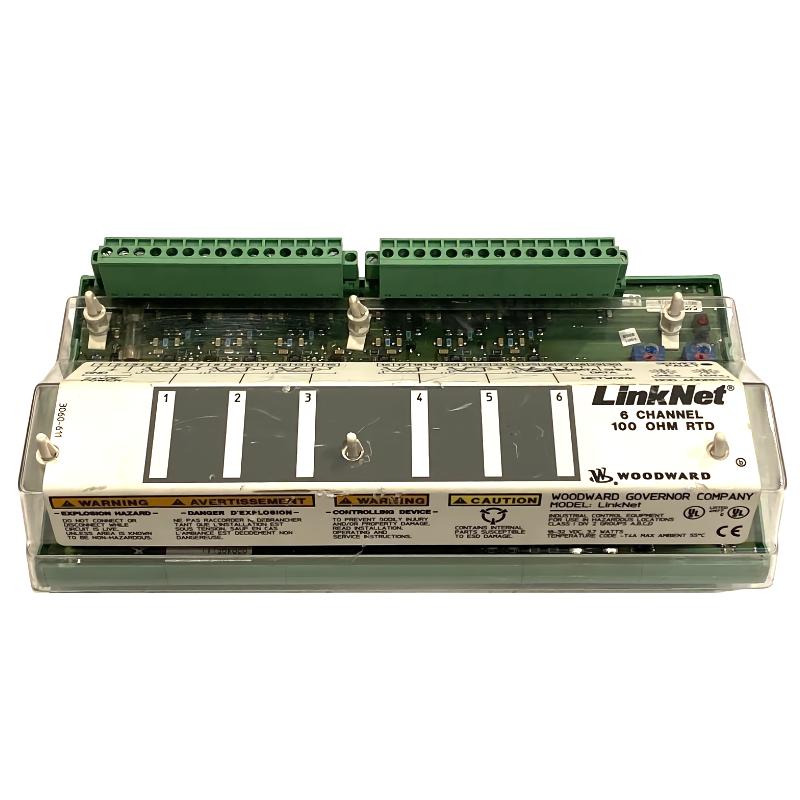

The Woodward 9905-970 LinkNet 6-Channel Input Module delivers accurate and reliable analog signal acquisition for complex industrial and energy control systems. With six independent channels, fast response, and robust industrial design, it ensures precise monitoring and control. Its compatibility with LinkNet and ProAct networks makes it an essential component for modern automation and energy systems.
Technical Specifications
Specification
Details
Module Type
6-Channel Input Module
Input Channels
6 Independent Channels
Signal Types
Analog Voltage and Current
Communication
Compatible with Woodward LinkNet and ProAct modules
Operating Voltage
12–24V DC
Operating Temperature
-20°C to 70°C
Protection Features
Overvoltage, Fault Detection
Mounting Options
DIN rail, Panel Mount
Dimensions (L x W x H)
355.6 mm x 279.4 mm x 101.6 mm
Weight
4.13 kg (9.1 lb)
Applications
The Woodward 9905-970 LinkNet 6-Channel Input Module is designed for precise signal acquisition and monitoring in industrial, marine, and energy systems. Ideal for engine control, generator management, and process automation, it provides accurate input data to controllers for reliable operation and system optimization. This module is essential for setups requiring multi-channel analog input and seamless network integration.
Advantages
Six Independent Input Channels: Allows flexible monitoring of multiple analog signals simultaneously.
High Reliability: Industrial-grade design ensures consistent operation under temperature extremes and vibration.
Fast and Accurate: Real-time data acquisition enables precise system control and monitoring.
Compact Design: Space-saving footprint for easy installation in panels or DIN rail systems.
Seamless Integration: Fully compatible with Woodward LinkNet and ProAct control networks.
Technical FAQs
Q: What types of signals can the 9905-970 module read? A: Supports standard analog voltage and current signals from industrial sensors.
Q: Are the six channels independently configurable? A: Yes, each channel can be set up and monitored independently.
Q: Can it operate in harsh industrial conditions? A: Yes, rated for vibration, shock, and operating temperatures from -20°C to 70°C.
Q: Is the module compatible with other Woodward controllers? A: Yes, fully compatible with LinkNet, ProAct, and other Woodward modules.
Q: How is system protection implemented? A: Overvoltage and fault detection protect both the module and connected equipment.
Q: Can multiple 9905-970 modules be linked together? A: Yes, modules can be networked for expanded input capabilities.
Q: What is the response time for signal acquisition? A: Signals are processed in milliseconds for near real-time monitoring and control.
Q: Is firmware upgradable in the field? A: Yes, secure firmware updates can be applied without downtime.
Q: What mounting options are available? A: Supports DIN rail or panel mounting for flexible installation.
Q: What is the operating voltage? A: Operates on 12–24V DC power supply.
