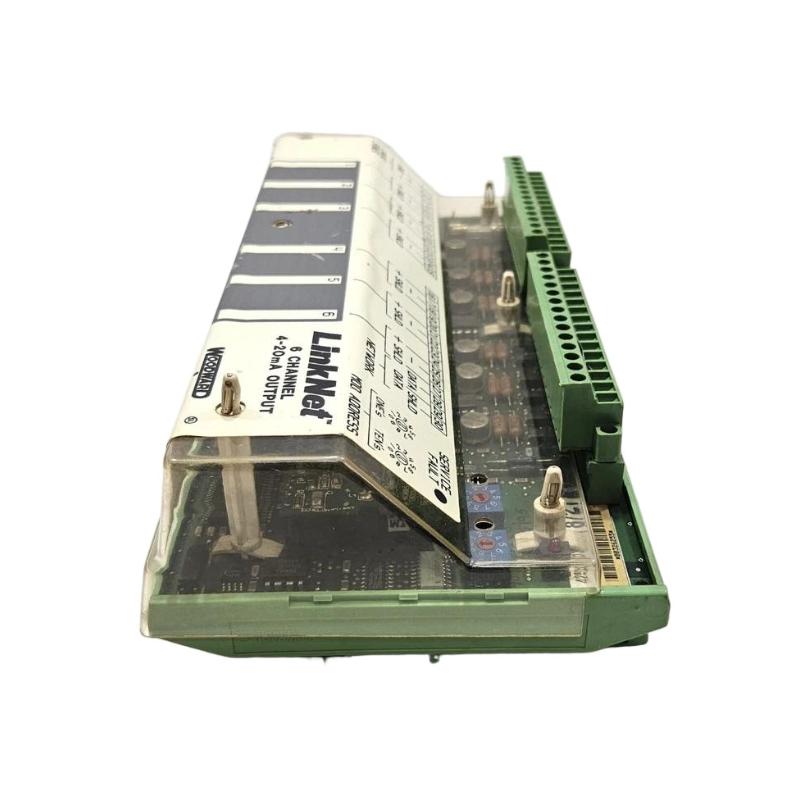

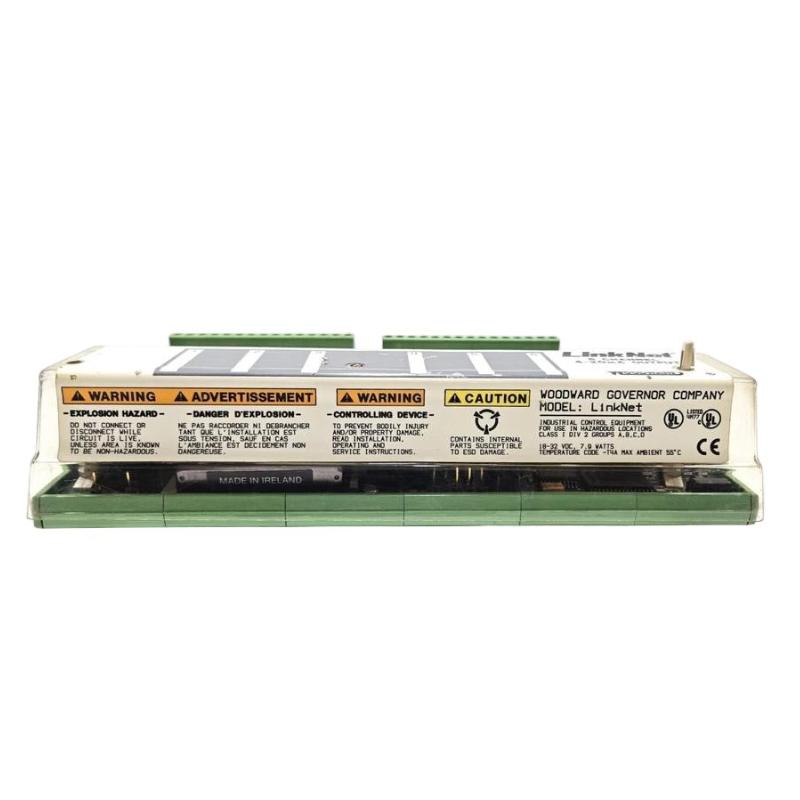

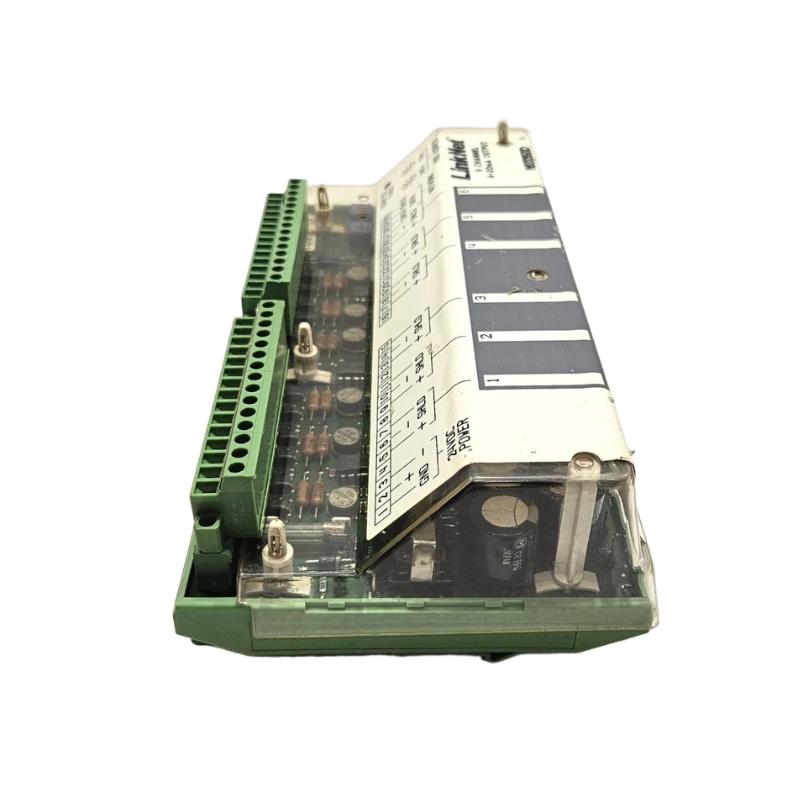

Name: Woodward 9905-972 6-Channel Output Module
Brand: Woodward
SKU: 9589
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 9905-972 6-Channel Output Module provides reliable, precise, and flexible signal distribution for modern industrial and energy systems. Its six independent channels, fast response, and rugged design ensure accurate control across multiple devices. Fully compatible with Woodward controllers and networks, it is an essential module for engineers seeking dependable system performance.

Technical Specifications

Specification	Details
Module Type	6-Channel Output Module
Output Channels	6 Independent Channels
Output Types	Digital and Analog
Communication	Compatible with Woodward ProAct modules
Operating Voltage	12–24V DC
Operating Temperature	-20°C to 70°C
Protection Features	Overcurrent, Fault Detection
Mounting Options	DIN rail, Panel Mount
Dimensions (L x W x H)	160 mm x 100 mm x 40 mm
Weight	0.59 kg (1.3 lb)

Applications

The Woodward 9905-972 6-Channel Output Module is designed for precise and reliable signal distribution in industrial and energy control systems. Ideal for generator control, engine management, and automation networks, it provides six independent output channels to drive multiple devices accurately. Its compact design allows seamless integration into complex control systems while maintaining high reliability in demanding environments.

Advantages

Multi-Channel Output: Six independent output channels support diverse control applications.
Industrial Reliability: Built to operate under extreme temperature, vibration, and industrial conditions.
Fast and Accurate Response: Real-time output ensures precise system control.
Compact and Space-Saving: Easy installation in panels or DIN rail setups.
Seamless Integration: Fully compatible with Woodward controllers and ProAct modules.

Technical FAQs

Q: What type of signals does the 9905-972 module provide?
A: Supports digital and analog output signals compatible with industrial control systems.
Q: Are all six channels independently configurable?
A: Yes, each channel operates independently for maximum flexibility.
Q: Can the module operate in harsh industrial conditions?
A: Yes, it is rated for vibration, temperature extremes, and industrial environments.
Q: Can it be integrated with existing Woodward controllers?
A: Yes, fully compatible with ProAct and other Woodward modules.
Q: How is protection implemented?
A: Built-in overcurrent and fault detection protect both the module and connected devices.
Q: Can multiple 9905-972 modules be networked?
A: Yes, multiple modules can be linked for expanded output capabilities.
Q: What is the response time for outputs?
A: Outputs respond in milliseconds for precise real-time control.
Q: Is firmware upgradable?
A: Yes, secure firmware updates can be applied in the field without downtime.
Q: What mounting options are available?
A: Supports DIN rail and panel mounting for flexible installation.
Q: What is the operating voltage?
A: Operates on 12–24V DC power supply.
