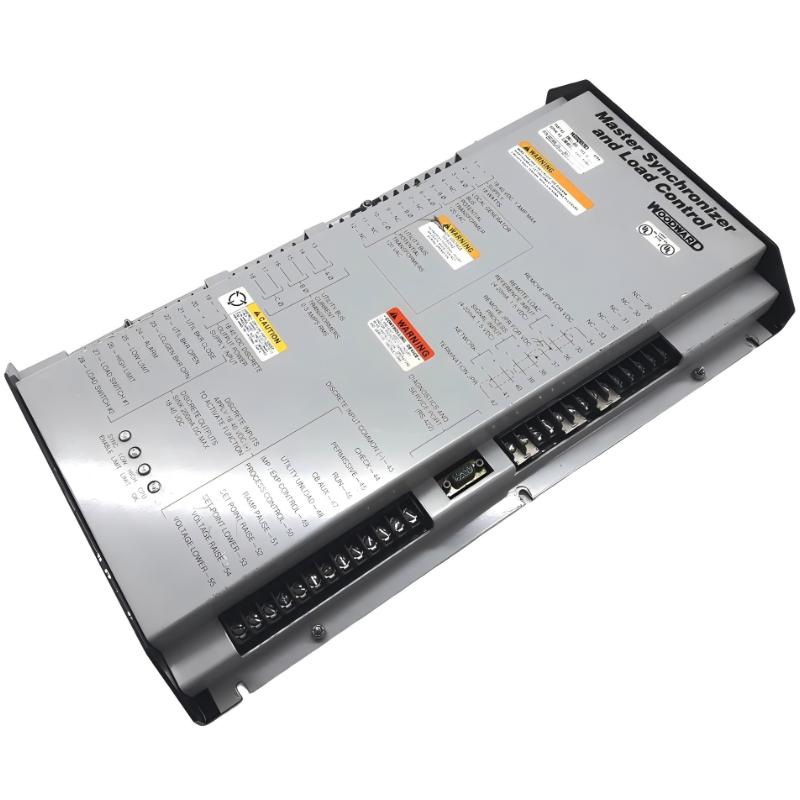

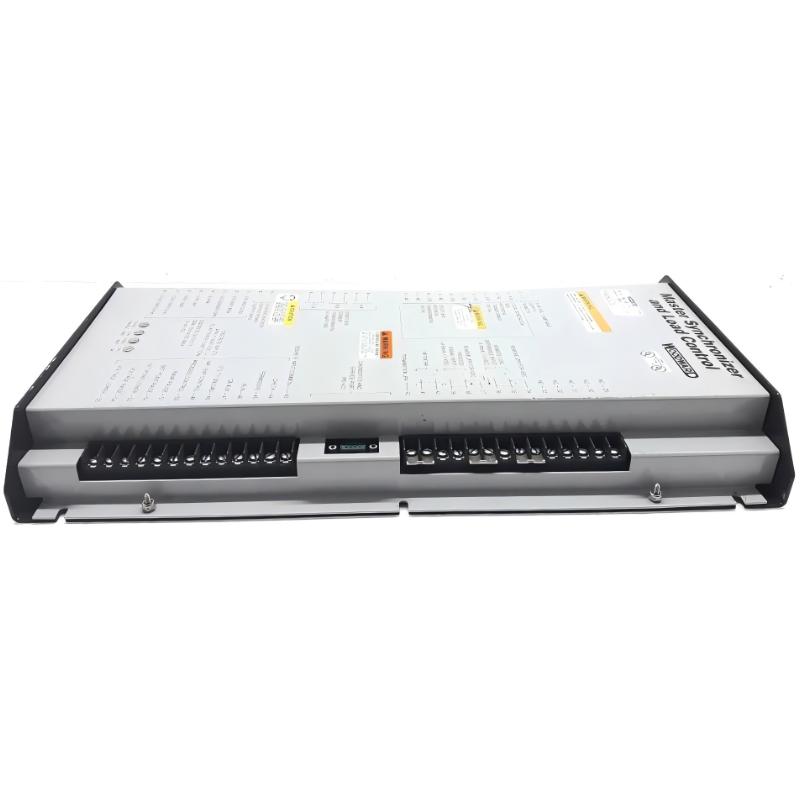

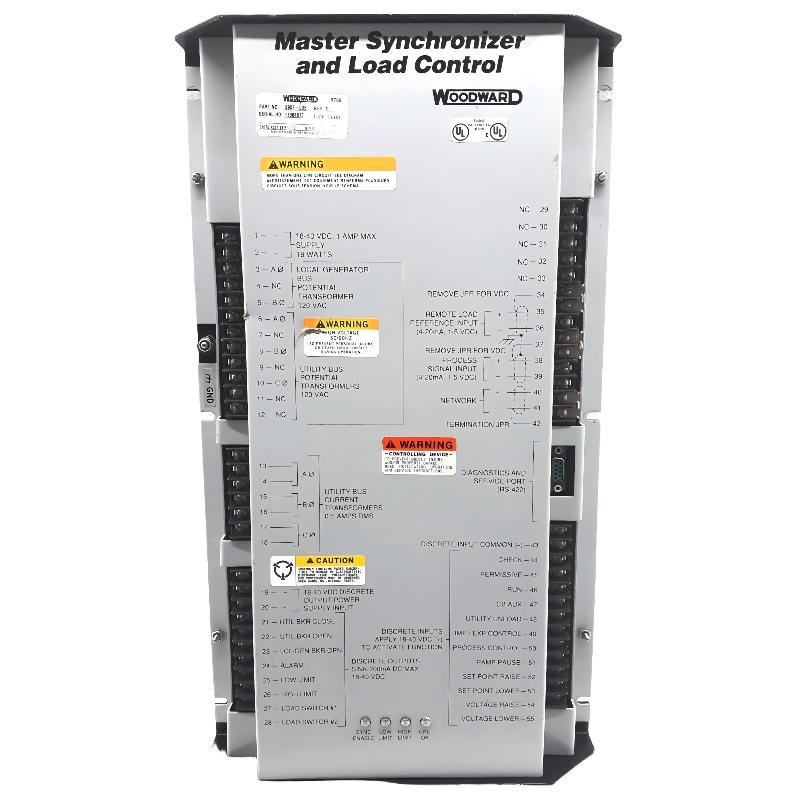

Name: Woodward 9907-005 Master Synchronizer And load Control Module
Brand: Woodward
SKU: 9592
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 9907-005 Master Synchronizer and Load Control Module combines advanced digital control with rugged industrial construction to deliver precise generator synchronization and reliable load management. Its high-speed performance, robust design, and compatibility with multi-generator networks make it ideal for industrial, marine, and power generation applications requiring dependable, accurate control.

Technical Specifications

Specification	Details
Module Type	Master Synchronizer and Load Control Module
Generator Types Supported	Synchronous, Asynchronous
Control Functions	Automatic synchronization, Load sharing, Fault protection
Communication	Ethernet, Digital Interfaces
Operating Voltage	12–24V DC
Operating Temperature	-20°C to 70°C
Protection Features	Overcurrent, Overvoltage, Fault Detection
Mounting Options	Panel or DIN rail
Dimensions (L x W x H)	403.86 mm x 264.16 mm x 58.42 mm
Weight	2.54 kg (5.6 lb)

Applications

The Woodward 9907-005 Master Synchronizer and Load Control Module is designed for precise multi-generator synchronization and load sharing in industrial and power generation applications. It ensures efficient distribution of electrical loads, maintains system stability, and minimizes operational errors. Ideal for power plants, backup generator systems, and complex energy networks, it provides reliable performance for critical infrastructure.

Advantages

Precise Multi-Generator Synchronization: Automatically matches voltage, frequency, and phase for multiple generators.
Reliable Load Sharing: Ensures balanced power distribution to prevent overloading and maximize efficiency.
Fast Response: Real-time control minimizes downtime and synchronization errors.
Rugged Industrial Design: Built to withstand vibration, temperature variations, and demanding operational conditions.
Easy Integration: Compatible with other Woodward ProAct modules for scalable system design.

Technical FAQs

Q: What types of generators can the 9907-005 synchronize?
A: Supports both synchronous and asynchronous generators in industrial settings.
Q: How does it manage multiple generators simultaneously?
A: Monitors and adjusts phase, voltage, and frequency for each generator in real time.
Q: Can it be monitored remotely?
A: Yes, Ethernet and digital interfaces enable remote monitoring and control.
Q: How fast is synchronization?
A: Achieves precise synchronization within milliseconds to prevent power fluctuations.
Q: What protection features are included?
A: Integrated overcurrent, overvoltage, and fault detection safeguard generators and connected systems.
Q: Can firmware be updated in the field?
A: Yes, secure in-field updates are supported without interrupting operations.
Q: Is the module network-compatible with other controllers?
A: Yes, it supports multi-controller integration for coordinated system management.
Q: What is the operating temperature range?
A: Designed for industrial conditions, -20°C to 70°C.
Q: Are there calibration routines for optimal performance?
A: Yes, onboard calibration ensures accurate synchronization and load sharing.
Q: What mounting options are available?
A: Supports panel or DIN rail mounting for flexible installation.
