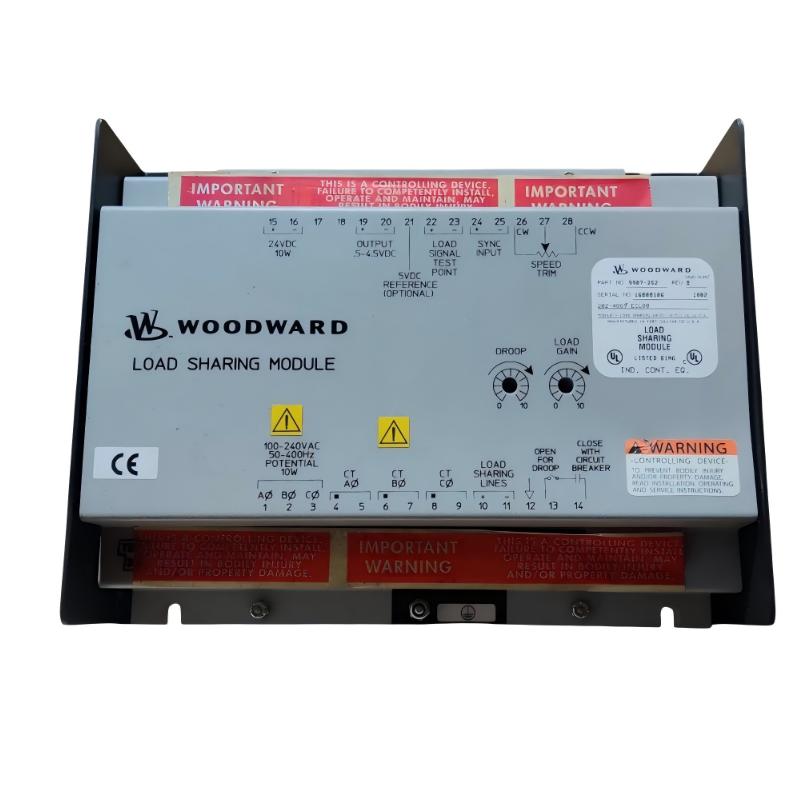

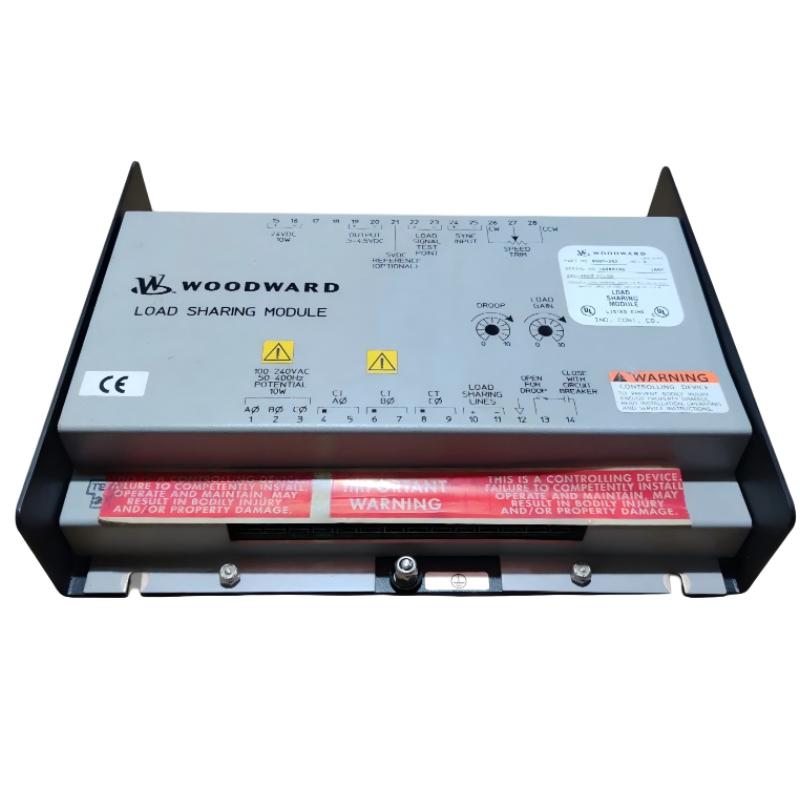

Name: Woodward 9907-252 Load Sharing Module
Brand: Woodward
SKU: 9623
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Woodward 9907-252 Load Sharing Module delivers precise and reliable load distribution for multi-generator systems. Its rugged design, rapid response, and compatibility with Woodward controllers and synchronizers make it essential for industrial, marine, and power generation applications requiring efficient, stable, and safe power management.

Technical Specifications

Specification	Details
Module Type	Load Sharing Module
Control Functions	Load balancing, Fault detection
Communication	Ethernet, Digital Interfaces
Operating Voltage	12–24V DC
Operating Temperature	-20°C to 70°C
Protection Features	Overcurrent, Fault Detection
Mounting Options	Panel, DIN Rail
Dimensions (L x W x H)	273.6 mm x 214.1 mm x 59.2 mm
Weight	1.488 kg (3.28 lb)

Applications

The Woodward 9907-252 Load Sharing Module is designed to provide precise and reliable load distribution across multiple generators in industrial, marine, and power generation applications. It optimizes power output, prevents generator overloading, and enhances system efficiency. Ideal for backup power systems, multi-generator setups, and critical infrastructure requiring balanced and stable energy management.

Advantages

Accurate Load Balancing: Automatically distributes electrical loads evenly across connected generators.
Reliable Industrial Performance: Built to withstand vibration, temperature extremes, and demanding operational conditions.
Enhanced Efficiency: Optimizes fuel usage and reduces wear on generators.
Seamless Integration: Compatible with Woodward synchronizers, speed controllers, and ProAct modules.
User-Friendly Operation: Simplifies setup, monitoring, and load adjustment for operators.

Technical FAQs

Q: How many generators can the 9907-252 manage?
A: Designed to coordinate multiple generators simultaneously for synchronized power output.
Q: Can it prevent generator overloading?
A: Yes, it monitors loads continuously and adjusts distribution to avoid overloading.
Q: Is it suitable for harsh industrial environments?
A: Yes, rated for -20°C to 70°C with vibration and shock resistance.
Q: Can it integrate with other Woodward modules?
A: Fully compatible with ProAct, LinkNet, and other Woodward controllers.
Q: Does it support remote monitoring?
A: Yes, Ethernet and digital interfaces allow real-time system supervision.
Q: Are protection features included?
A: Yes, includes overcurrent and fault detection to safeguard generators.
Q: Can firmware be updated on-site?
A: Yes, secure in-field updates are supported without downtime.
Q: What mounting options are available?
A: Supports panel and DIN rail mounting for flexible installation.
Q: Does it provide diagnostics?
A: Yes, monitors load distribution and system performance continuously.
Q: What is the operating voltage?
A: Operates on 12–24V DC power supply.
