Introduction

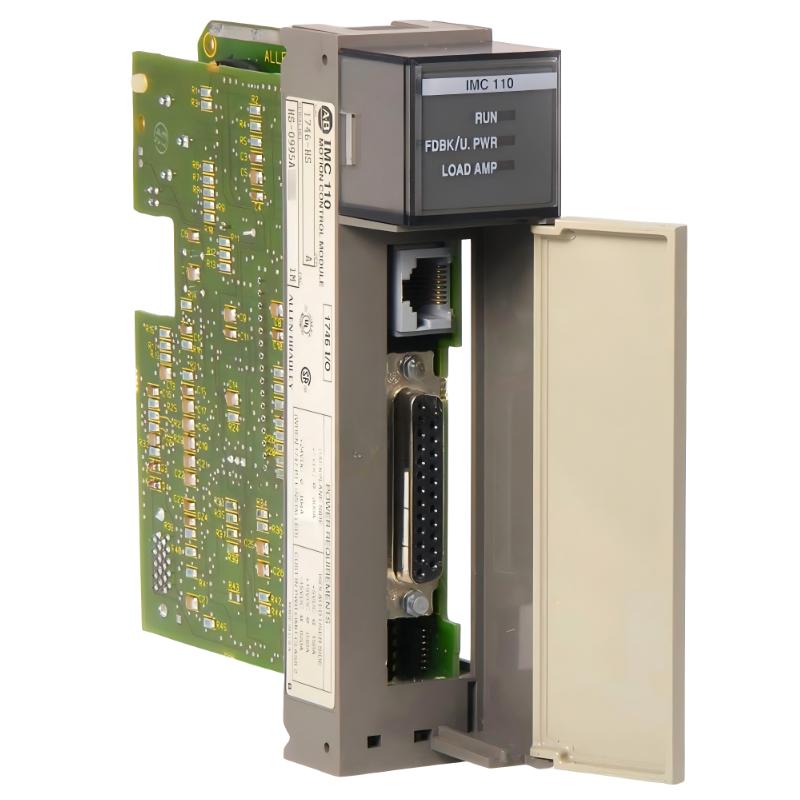

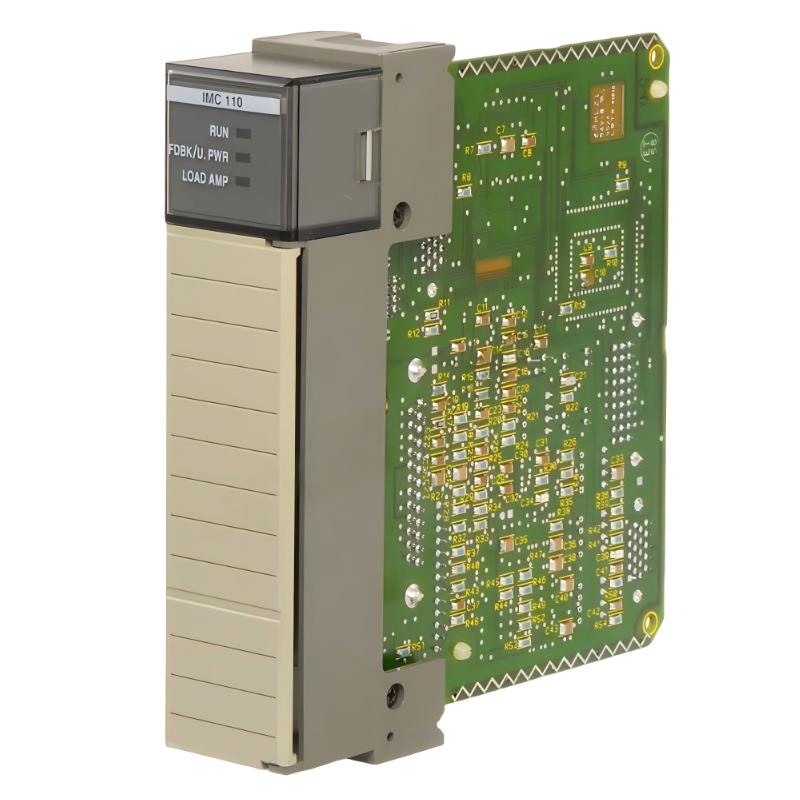

The Allen Bradley 1746-HS SLC 500 Motion Control Module delivers precise, reliable, and compact motion control for industrial automation systems. Its integration with the SLC 500 platform, high-speed processing, and industrial-grade design make it ideal for robotics, manufacturing, and motion-intensive applications.

Technical Specifications

Specification	Details
Module Type	Motion Control Module
Motor Types Supported	Stepper, Servo, Industrial Actuators
Control Functions	Positioning, Speed Regulation, Multi-axis Coordination
Communication	SLC 500 Backplane
Operating Voltage	5V DC
Operating Temperature	-20°C to 60°C
Protection Features	Vibration, Electrical Noise Resistant
Mounting Options	SLC 500 Chassis Slot
Dimensions (L x W x H)	144.5 mm x 34.6 mm x 130.18 mm
Weight	0.141 kg (0.31 lb)

Applications

The Allen Bradley 1746-HS SLC 500 Motion Control Module is designed to deliver precise motion control for industrial automation systems. It is ideal for controlling servos, stepper motors, and other motion devices in manufacturing, packaging, and robotic applications. Perfect for SLC 500-based control systems requiring compact and reliable motion management.

Advantages

High-Precision Motion Control: Provides accurate positioning and speed regulation for motors and actuators.
Fast Processing: Ensures real-time response for complex motion sequences.
Compact and Efficient Design: Minimal footprint allows installation in tight control panels.
Seamless Integration: Fully compatible with Allen Bradley SLC 500 series and related I/O modules.
Reliable Operation: Industrial-grade design for consistent performance in harsh environments.

Technical FAQs

Q: What types of motors can the 1746-HS control?
A: Supports stepper motors, servo motors, and other standard industrial actuators.
Q: Is it compatible with other SLC 500 modules?
A: Yes, fully integrates with SLC 500 I/O and communication modules.
Q: Can it handle multi-axis motion control?
A: Yes, capable of coordinating multiple motion axes within the system.
Q: What is the operating voltage for the module?
A: Operates on standard SLC 500 backplane voltage of 5V DC.
Q: Does it include diagnostic capabilities?
A: Yes, supports motion status monitoring and error reporting.
Q: Can it operate in harsh industrial environments?
A: Yes, designed for -20°C to 60°C and resistant to vibration and electrical noise.
Q: How is it mounted?
A: Directly plugs into the SLC 500 chassis for secure installation.
Q: Does it support firmware updates?
A: Yes, firmware can be updated through the SLC 500 programming software.
Q: Can it manage high-speed motion sequences?
A: Yes, optimized for fast and precise control of high-speed operations.
Q: Is it maintenance-free?
A: Yes, designed for long-term operation with minimal maintenance.
