Introduction

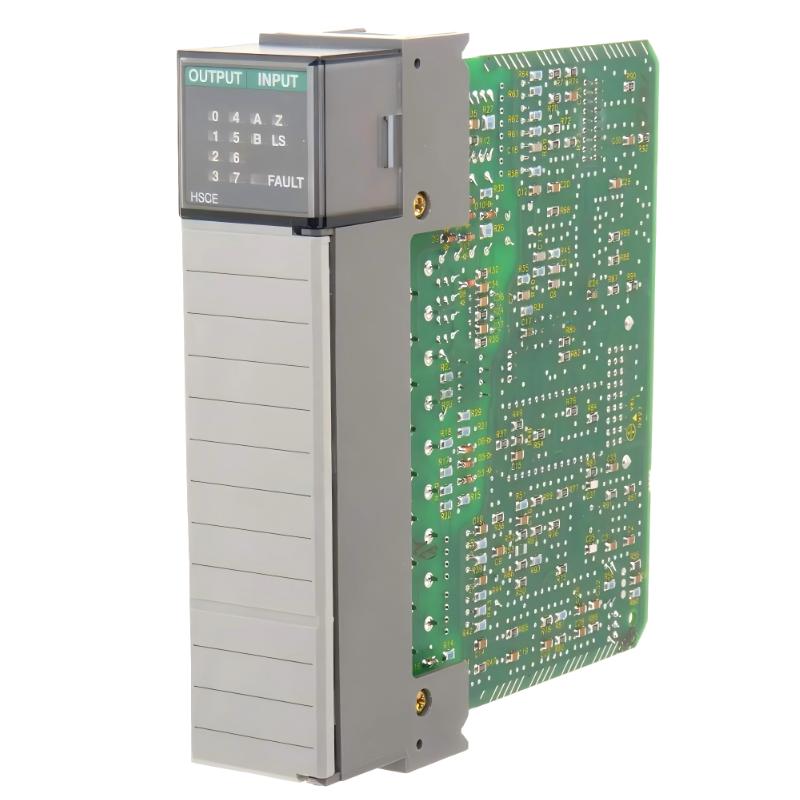

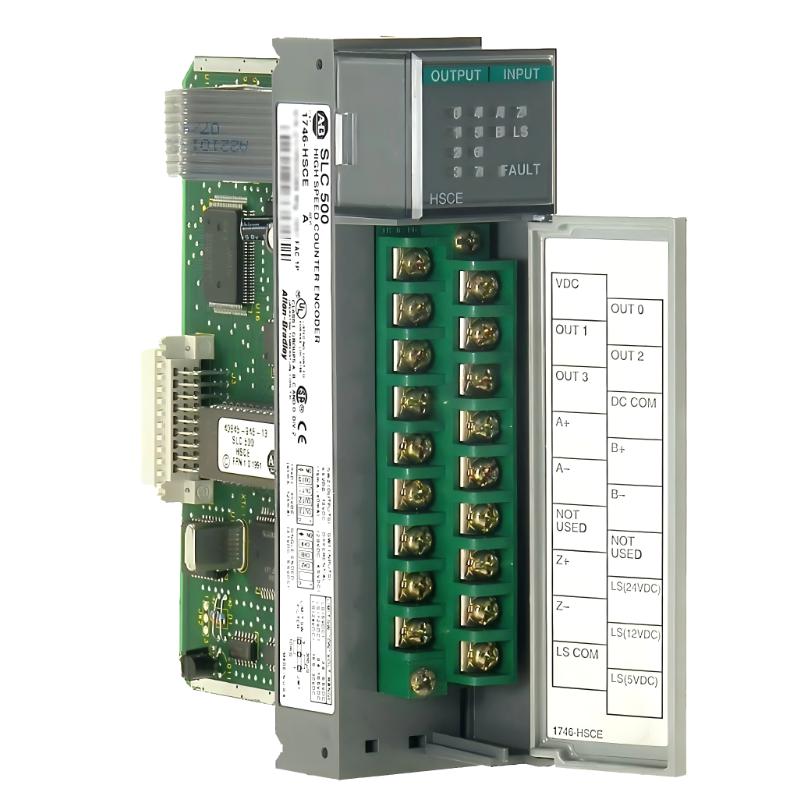

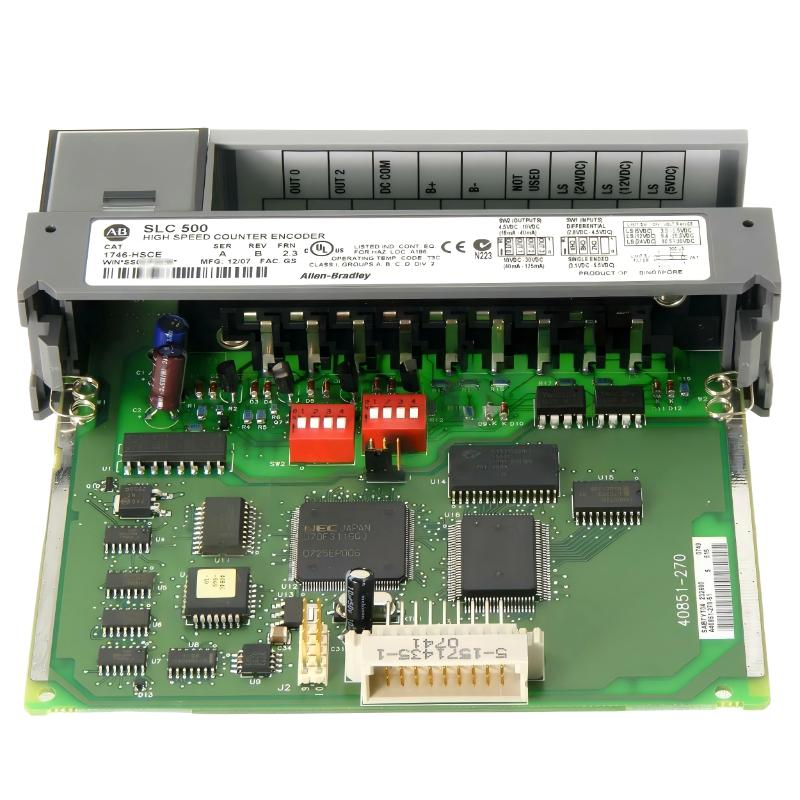

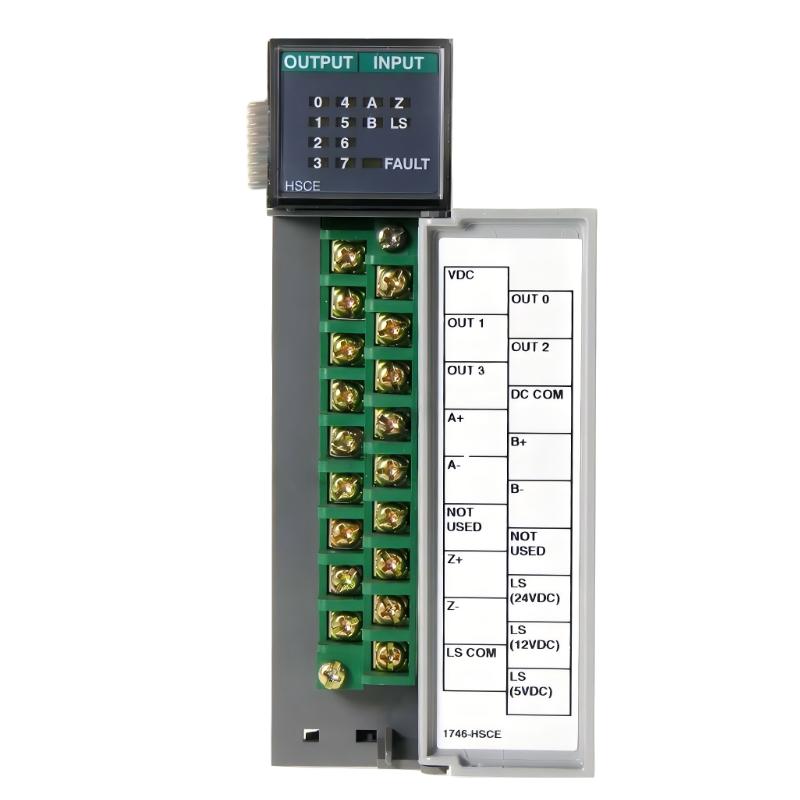

The Allen Bradley 1746-HSCE SLC 500 High-Speed Counter Module delivers precise, reliable, and fast counting of digital signals for industrial automation systems. Its compact design, encoder compatibility, and seamless SLC 500 integration make it ideal for applications requiring accurate pulse monitoring, frequency measurement, and high-speed counting in manufacturing and robotic processes.

Technical Specifications

Specification	Details
Module Type	High-Speed Counter Module
Input Types	TTL, HTL, Incremental Encoder
Max Counting Speed	Up to 100 kHz
Control Functions	Pulse Counting, Frequency Measurement, Encoder Feedback
Communication	SLC 500 Backplane
Operating Voltage	5V DC
Operating Temperature	-20°C to 60°C
Protection Features	Vibration, Electrical Noise Resistant
Mounting Options	SLC 500 Chassis Slot
Dimensions (L x W x H)	144.5 mm x 34.6 mm x 130.18 mm
Weight	0.25 kg (0.55 lb)

Applications

The Allen Bradley 1746-HSCE SLC 500 High-Speed Counter Module is designed to provide precise counting and monitoring of high-speed digital signals in industrial automation systems. It is ideal for applications requiring accurate pulse counting, frequency measurement, and encoder signal processing, including packaging, material handling, robotics, and conveyor systems.

Advantages

Accurate High-Speed Counting: Supports rapid pulses for precise monitoring and control of processes.
Versatile Signal Input: Accepts TTL, HTL, and standard encoder signals for diverse applications.
Seamless Integration: Fully compatible with SLC 500 chassis and related I/O modules.
Compact and Efficient Design: Minimal footprint allows installation in tight panel spaces.
Reliable Operation: Industrial-grade construction ensures consistent performance in harsh environments.

Technical FAQs

Q: What type of signals can the 1746-HSCE process?
A: Supports TTL, HTL, and standard incremental encoder signals.
Q: What is the maximum counting speed?
A: Can handle high-speed pulses up to 100 kHz depending on signal type.
Q: Is it compatible with other SLC 500 modules?
A: Yes, integrates seamlessly with SLC 500 input/output and motion modules.
Q: Can it operate in harsh industrial environments?
A: Yes, designed to withstand temperatures from -20°C to 60°C and resist vibration and electrical noise.
Q: Does it provide diagnostic capabilities?
A: Yes, includes status monitoring and fault detection for reliable operation.
Q: How is it mounted?
A: Directly plugs into the SLC 500 chassis slot for secure installation.
Q: Can multiple modules be used together?
A: Yes, supports multi-module setups for distributed high-speed counting applications.
Q: Does it support encoder inputs?
A: Yes, fully compatible with incremental encoders for precise motion feedback.
Q: What is the operating voltage for the module?
A: Operates on the SLC 500 backplane standard voltage (5V DC).
Q: Is maintenance required for the module?
A: No, it is designed for long-term operation with minimal maintenance.
