Introduction

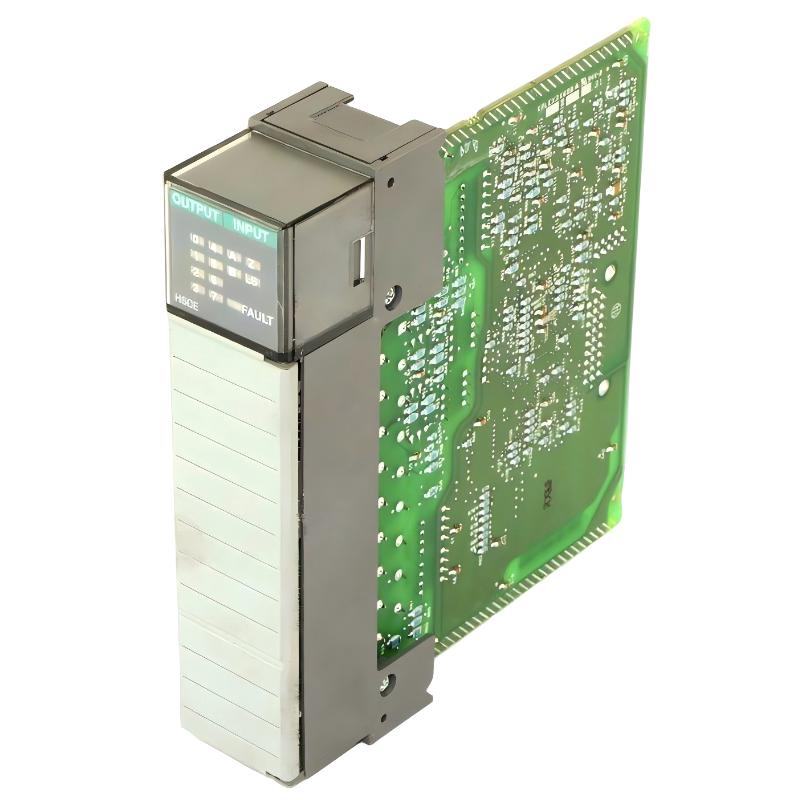

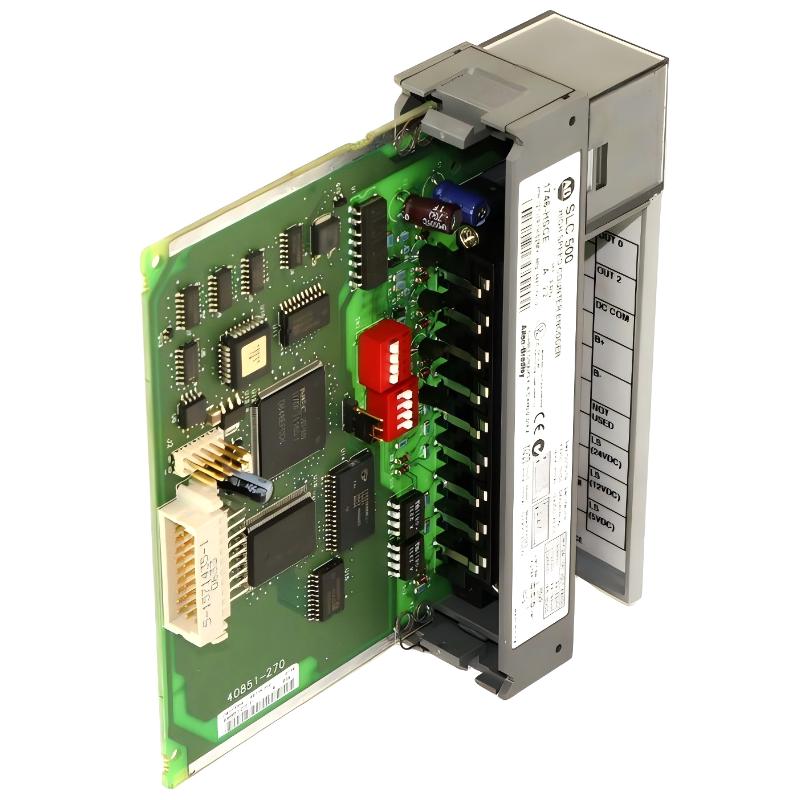

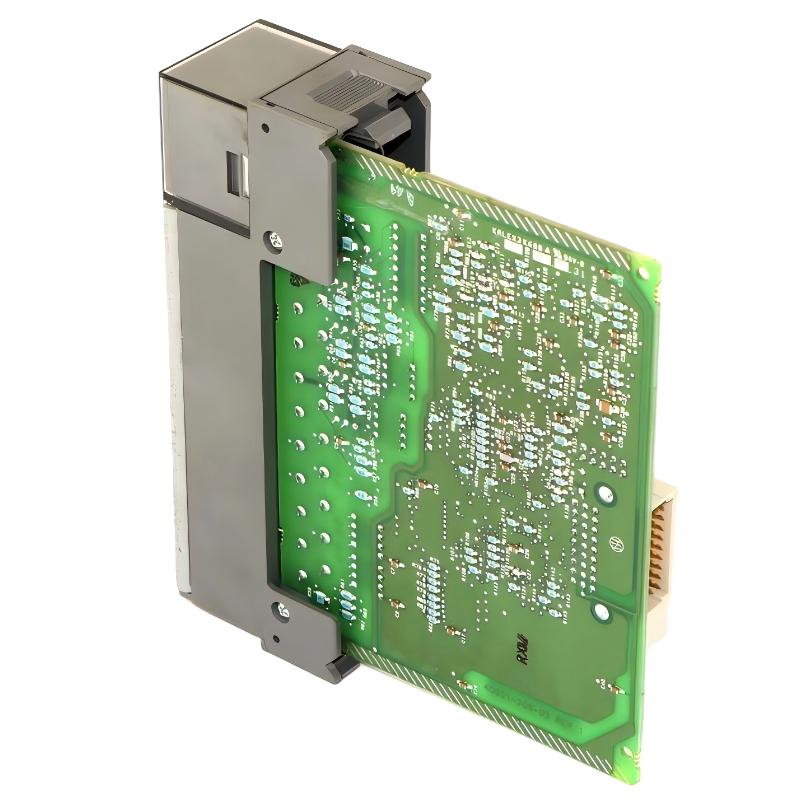

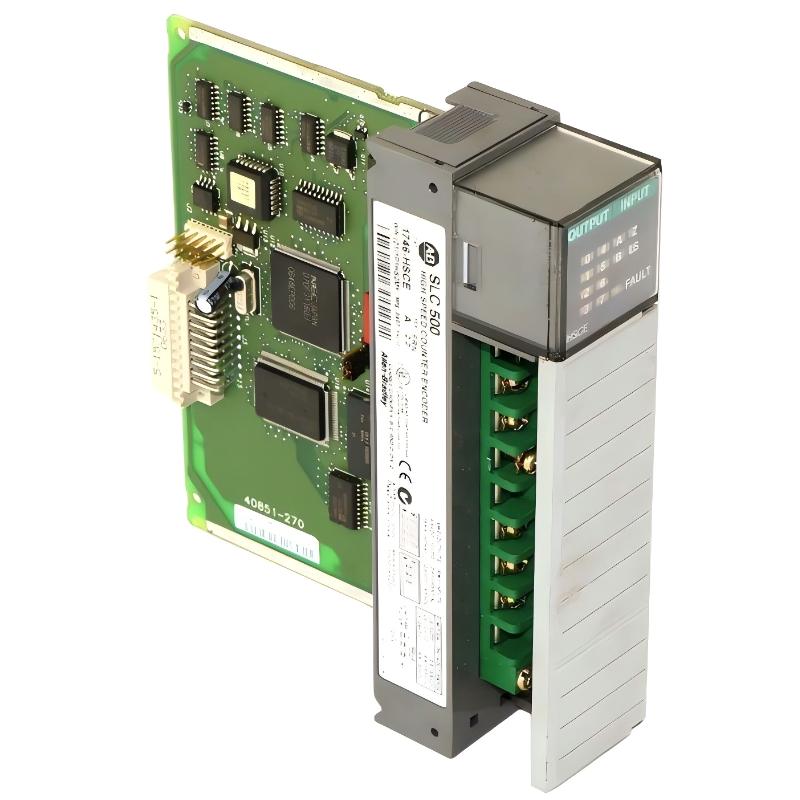

The Allen Bradley 1746-HSCE/A SLC 500 High-Speed Counter Module delivers precise, fast, and reliable pulse counting for industrial automation systems. Its compact footprint, high-speed capability, and seamless integration with the SLC 500 platform make it an essential component for applications requiring accurate encoder feedback, motion monitoring, and high-frequency counting in industrial and robotic processes.

Technical Specifications

Specification	Details
Module Type	High-Speed Counter Module
Input Types	TTL, HTL, Incremental Encoder
Max Counting Speed	Up to 100 kHz
Control Functions	Pulse Counting, Frequency Measurement, Encoder Feedback
Communication	SLC 500 Backplane
Operating Voltage	5V DC
Operating Temperature	-20°C to 60°C
Protection Features	Vibration, Electrical Noise Resistant
Mounting Options	SLC 500 Chassis Slot
Dimensions (L x W x H)	144.5 mm x 34.6 mm x 130.18 mm
Weight	0.25 kg (0.55 lb)

Applications

The Allen Bradley 1746-HSCE/A SLC 500 High-Speed Counter Module is engineered for precise high-speed pulse counting and frequency measurement in industrial automation systems. It is ideal for applications such as encoder feedback, material handling, packaging machinery, and robotic motion monitoring, where fast and accurate counting is critical for performance and process control.

Advantages

High-Speed Accuracy: Capable of accurately counting rapid pulses up to 100 kHz.
Versatile Signal Compatibility: Supports TTL, HTL, and standard incremental encoder inputs.
Compact and Space-Efficient: Designed to fit into the SLC 500 chassis without occupying excess panel space.
Reliable Industrial Operation: Rugged construction ensures stable performance in harsh conditions including vibration and electrical noise.
Seamless Integration: Works directly with SLC 500 input/output modules and motion control systems for precise automation.

Technical FAQs

Q: What signals are supported by the 1746-HSCE/A?
A: Accepts TTL, HTL, and standard incremental encoder signals.
Q: What is the maximum counting speed?
A: Up to 100 kHz, depending on input signal type.
Q: Is it compatible with other SLC 500 modules?
A: Yes, integrates seamlessly with SLC 500 I/O and motion control modules.
Q: Can it operate in harsh industrial environments?
A: Yes, designed to withstand temperatures from -20°C to 60°C and resist vibration and electrical noise.
Q: Does it support encoder feedback?
A: Yes, fully compatible with incremental encoders for precise motion and position monitoring.
Q: How is it mounted?
A: Direct installation into the SLC 500 chassis slot ensures secure and reliable placement.
Q: Can multiple modules be used together?
A: Yes, supports multi-module configurations for distributed high-speed counting applications.
Q: Does it provide diagnostic features?
A: Yes, includes status monitoring and fault detection for process reliability.
Q: What is the operating voltage?
A: Operates on the standard 5V DC provided by the SLC 500 backplane.
Q: Is it maintenance-free?
A: Yes, designed for long-term, reliable operation with minimal maintenance.
