Introduction

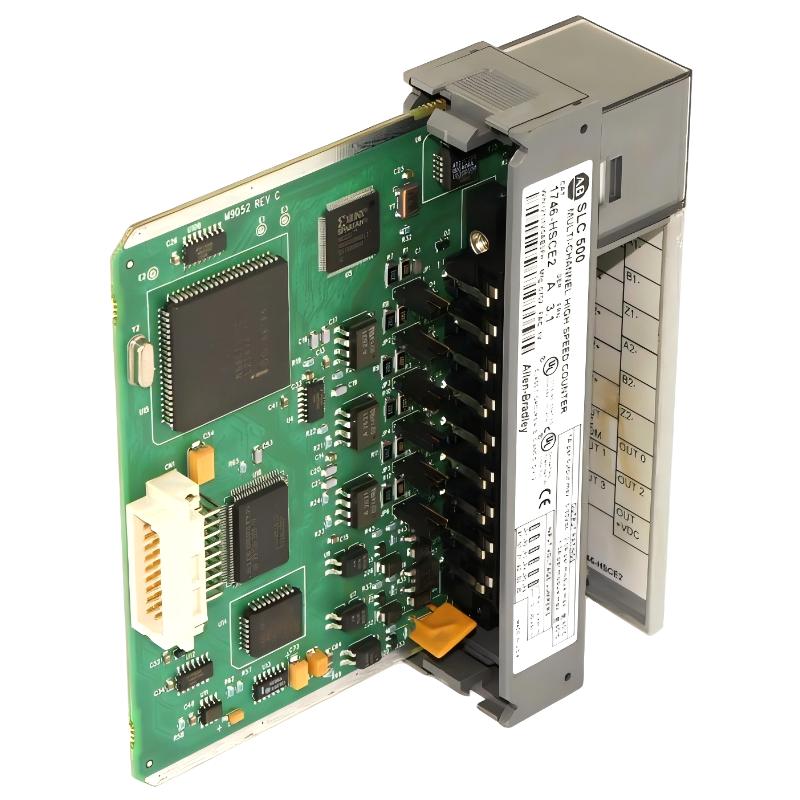

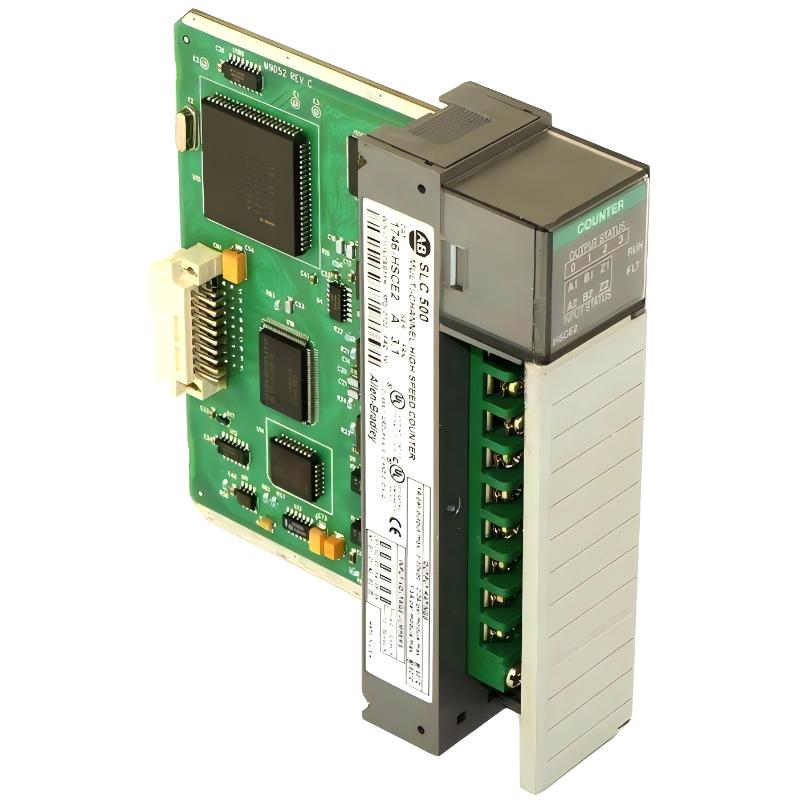

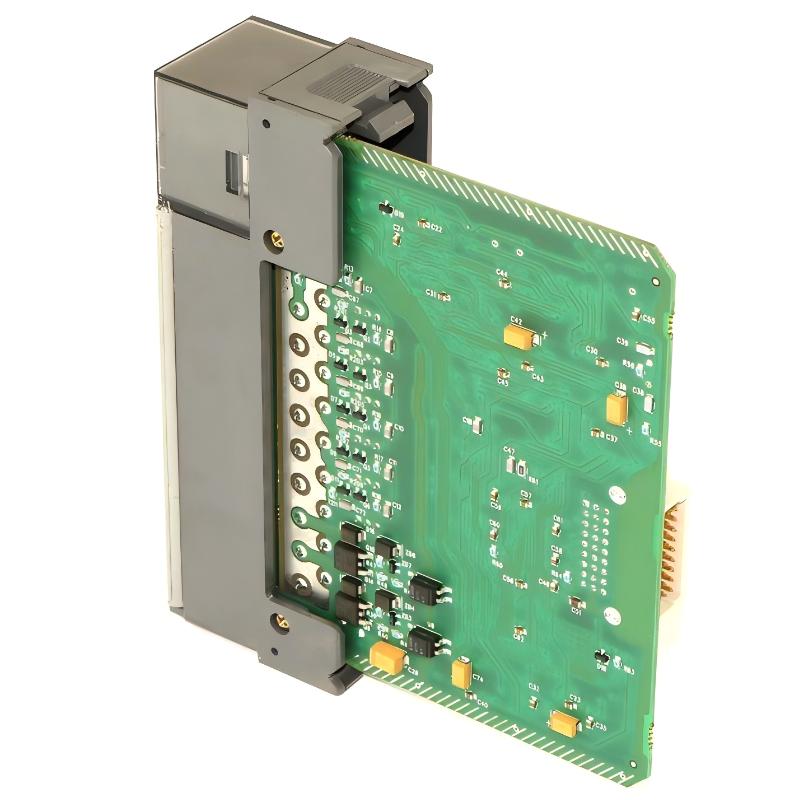

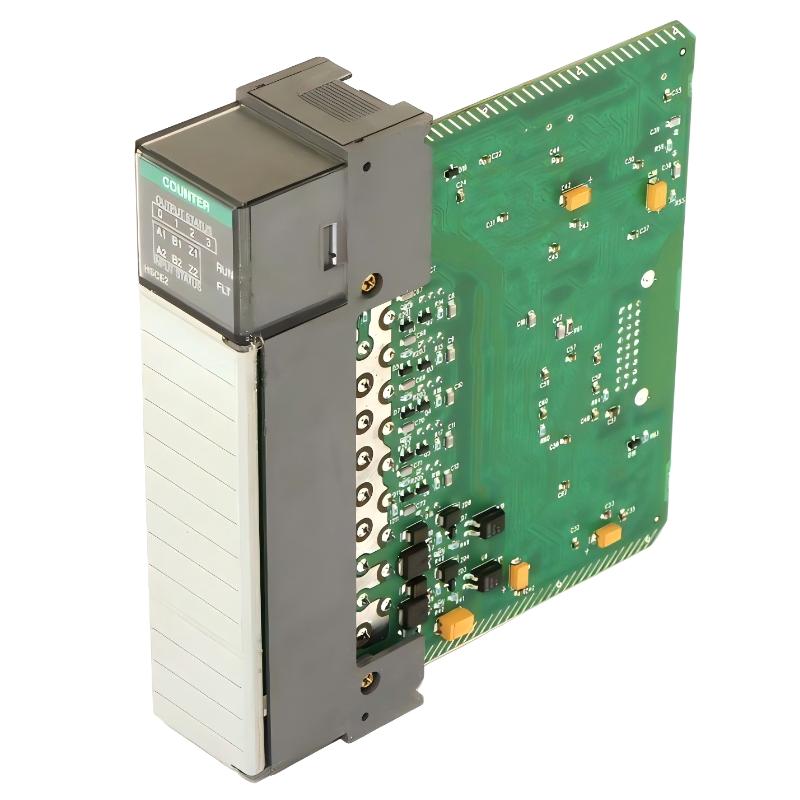

The Allen Bradley 1746-HSCE2/A SLC 500 Multi-Channel High-Speed Counter Module delivers precise, reliable, and simultaneous counting for multiple high-speed digital signals. Its compact design, multi-channel capability, and seamless integration with the SLC 500 platform make it essential for automation applications requiring accurate encoder feedback, synchronized high-speed counting, and advanced process control in industrial, robotic, and manufacturing environments.

Technical Specifications

Specification	Details
Module Type	Multi-Channel High-Speed Counter Module
Input Types	TTL, HTL, Incremental Encoder
Max Counting Speed	Up to 100 kHz per channel
Channels	Multiple independent high-speed counters
Control Functions	Pulse Counting, Frequency Measurement, Encoder Feedback
Communication	SLC 500 Backplane
Operating Voltage	5V DC
Operating Temperature	-20°C to 60°C
Protection Features	Vibration, Electrical Noise Resistant
Mounting Options	SLC 500 Chassis Slot
Dimensions (L x W x H)	144.5 mm x 34.6 mm x 130.18 mm
Weight	0.222 kg (0.49 lb)

Applications

The Allen Bradley 1746-HSCE2/A SLC 500 Multi-Channel High-Speed Counter Module is designed for industrial automation systems that require simultaneous high-speed counting across multiple channels. It is ideal for encoder feedback, material handling, conveyor monitoring, robotic control, and packaging applications where precise pulse counting is essential for process accuracy and efficiency.

Advantages

Multi-Channel Counting: Supports multiple independent high-speed counters for complex automation tasks.
High-Speed Precision: Handles pulses up to 100 kHz per channel for accurate process monitoring.
Versatile Input Signals: Compatible with TTL, HTL, and incremental encoder signals.
Compact and Space-Efficient: Direct installation into the SLC 500 chassis with minimal panel footprint.
Industrial Reliability: Rugged design ensures consistent operation in harsh conditions with vibration and electrical noise.
Seamless Integration: Fully compatible with SLC 500 I/O modules and motion control systems for advanced automation.

Technical FAQs

Q: How many channels are supported by the 1746-HSCE2/A?
A: Multiple independent high-speed counters are supported for simultaneous signal monitoring.
Q: What is the maximum counting speed per channel?
A: Up to 100 kHz depending on the input signal type.
Q: Which input signals are compatible?
A: TTL, HTL, and incremental encoder signals.
Q: Is it compatible with other SLC 500 modules?
A: Yes, integrates seamlessly with SLC 500 input/output and motion modules.
Q: Can it operate in harsh industrial environments?
A: Yes, designed for temperatures from -20°C to 60°C and resistant to vibration and electrical noise.
Q: Can multiple modules be networked together?
A: Yes, supports multi-module configurations for distributed high-speed counting applications.
Q: Does it support encoder feedback?
A: Yes, fully compatible with incremental encoders for precise motion and position monitoring.
Q: How is it mounted?
A: Direct installation into the SLC 500 chassis slot ensures secure and reliable placement.
Q: What is the operating voltage?
A: Operates on the standard 5V DC supplied by the SLC 500 backplane.
Q: Is maintenance required for the module?
A: No, it is designed for long-term operation with minimal maintenance.
