Introduction

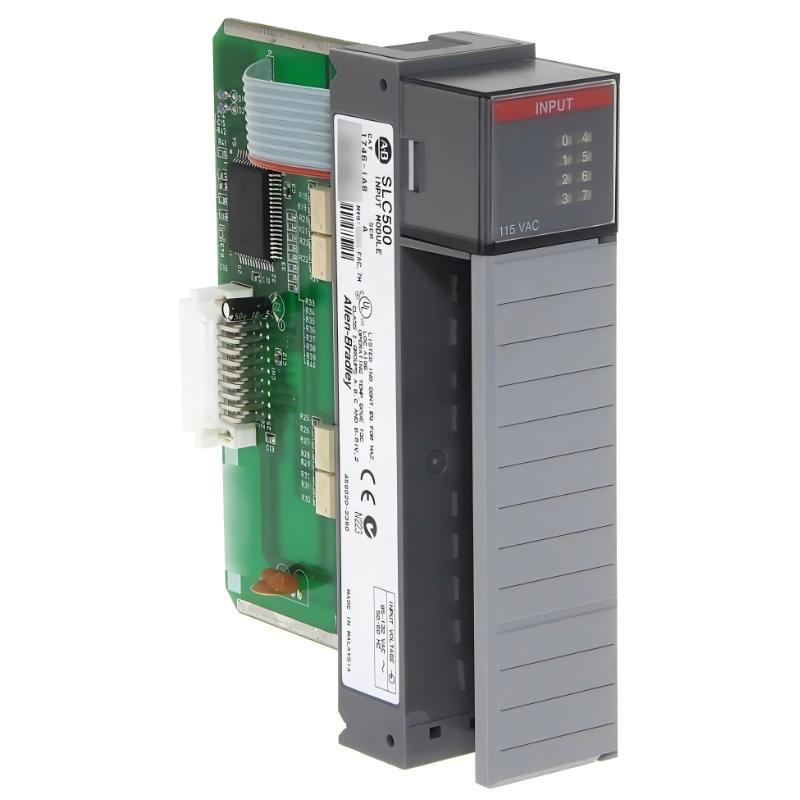

The Allen Bradley 1746-IA8 SLC 500 AC Digital Input Module provides reliable, accurate AC input monitoring for industrial automation systems. Its compact design, high noise immunity, and seamless SLC 500 integration make it an ideal solution for manufacturing, process control, and packaging applications requiring consistent AC signal detection and processing.

Technical Specifications

Specification	Details
Module Type	AC Digital Input Module
Input Channels	8 AC Digital Inputs
Input Types	AC Switches, Sensors, Push Buttons
Communication	SLC 500 Backplane
Operating Voltage	Standard AC Input Compatible with SLC 500
Operating Temperature	-20°C to 60°C
Protection Features	Vibration, Electrical Noise Resistant
Mounting Options	SLC 500 Chassis Slot
Dimensions (L x W x H)	144.5 mm x 34.6 mm x 130.18 mm
Weight	0.204 kg (0.45 lb)

Applications

The Allen Bradley 1746-IA8 SLC 500 AC Digital Input Module is engineered for industrial automation systems that require accurate AC signal monitoring. It is ideal for detecting the status of push buttons, switches, and other AC-powered field devices in manufacturing, packaging, and process control applications. This module ensures reliable input processing for SLC 500-based control systems.

Advantages

Reliable AC Signal Detection: Provides precise and consistent monitoring of AC input devices.
High Noise Immunity: Designed to resist electrical noise in industrial environments.
Compact and Space-Saving: Fits neatly into the SLC 500 chassis, optimizing panel space.
Seamless Integration: Works directly with SLC 500 input/output modules for scalable automation.
Industrial-Grade Durability: Maintains reliable operation under vibration, temperature fluctuations, and electrical interference.

Technical FAQs

Q: What type of inputs does the 1746-IA8 support?
A: AC digital inputs from standard field devices, switches, and sensors.
Q: How many input channels are available?
A: Supports 8 discrete AC input channels.
Q: Is it compatible with other SLC 500 modules?
A: Yes, fully integrates with SLC 500 input/output and control modules.
Q: What is the operating voltage range?
A: Designed to operate with standard AC input voltages compatible with SLC 500 systems.
Q: Can it withstand harsh industrial conditions?
A: Yes, rated for -20°C to 60°C and resistant to vibration and electrical noise.
Q: Does it provide diagnostic capabilities?
A: Yes, supports channel status monitoring and fault detection.
Q: How is the module mounted?
A: Installed directly into the SLC 500 chassis slot.
Q: Can multiple modules be used together?
A: Yes, supports multi-module configurations for expanded AC input monitoring.
Q: Is firmware or software required for operation?
A: No additional firmware is needed; it works seamlessly with SLC 500 programming software.
Q: Is the module maintenance-free?
A: Yes, designed for long-term, reliable operation with minimal maintenance.
