Introduction

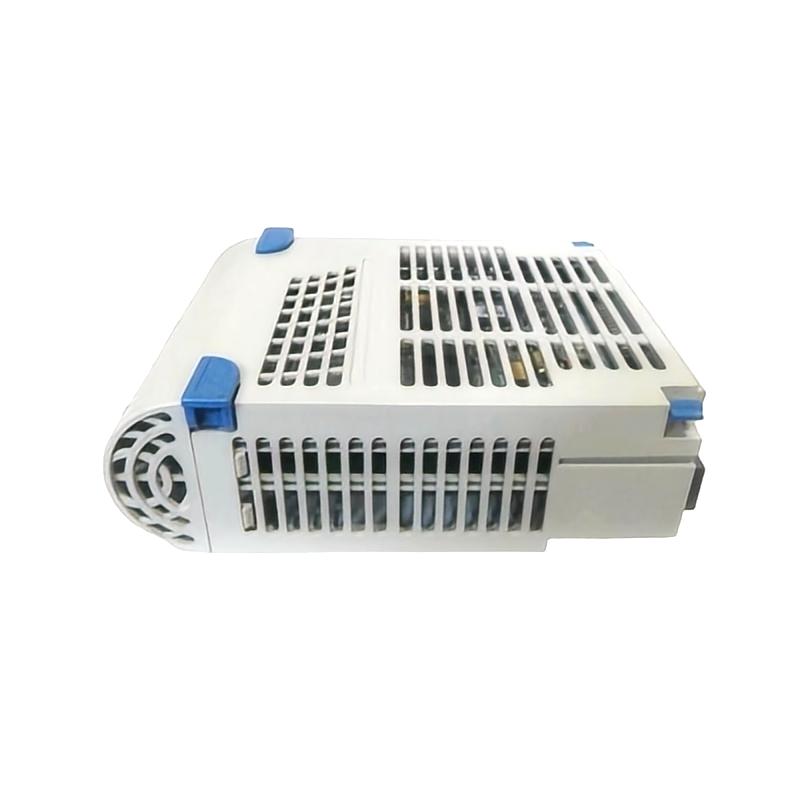

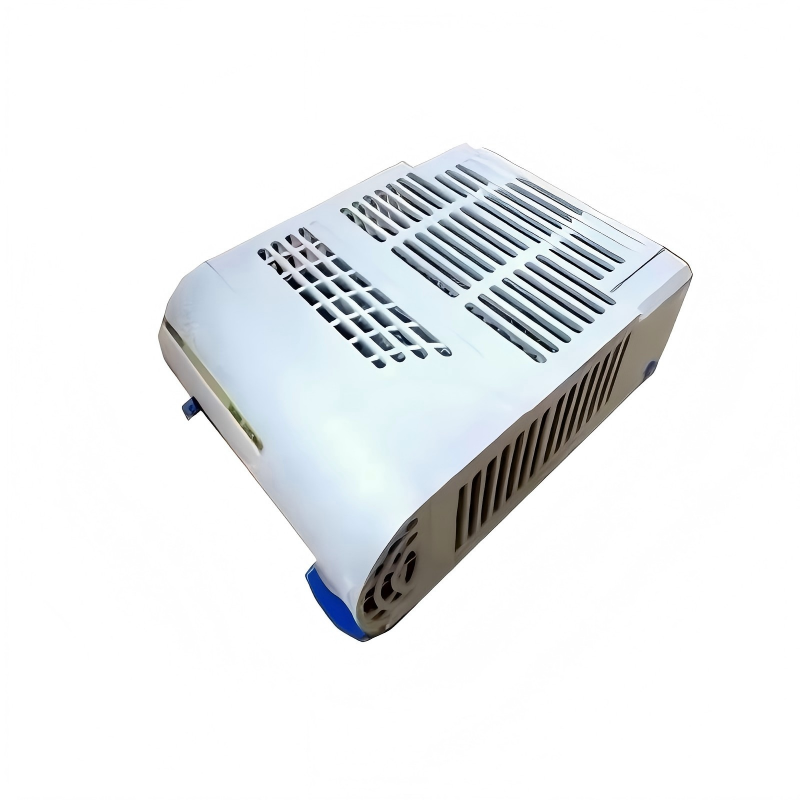

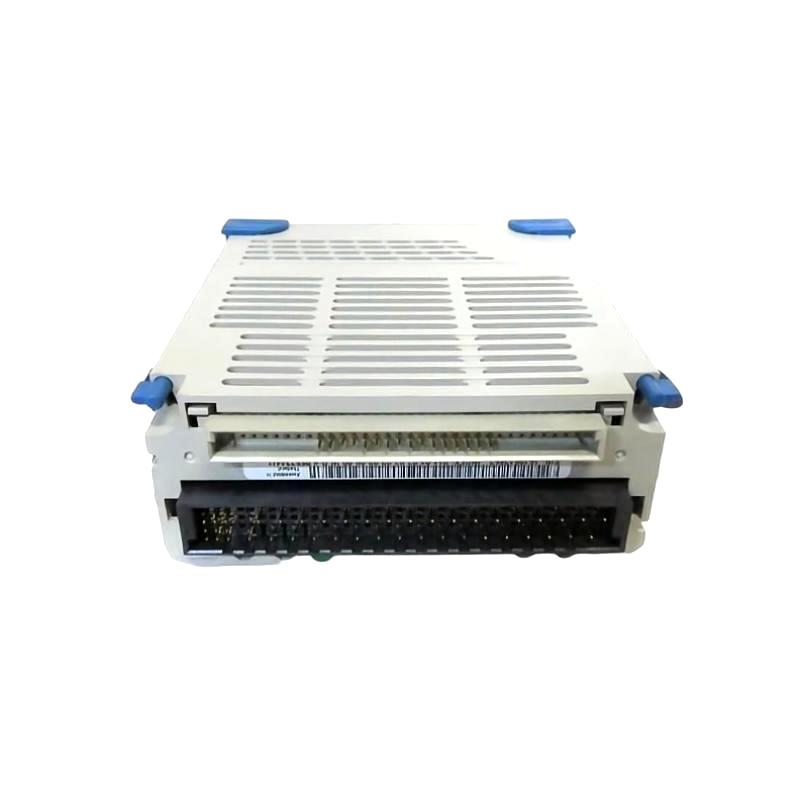

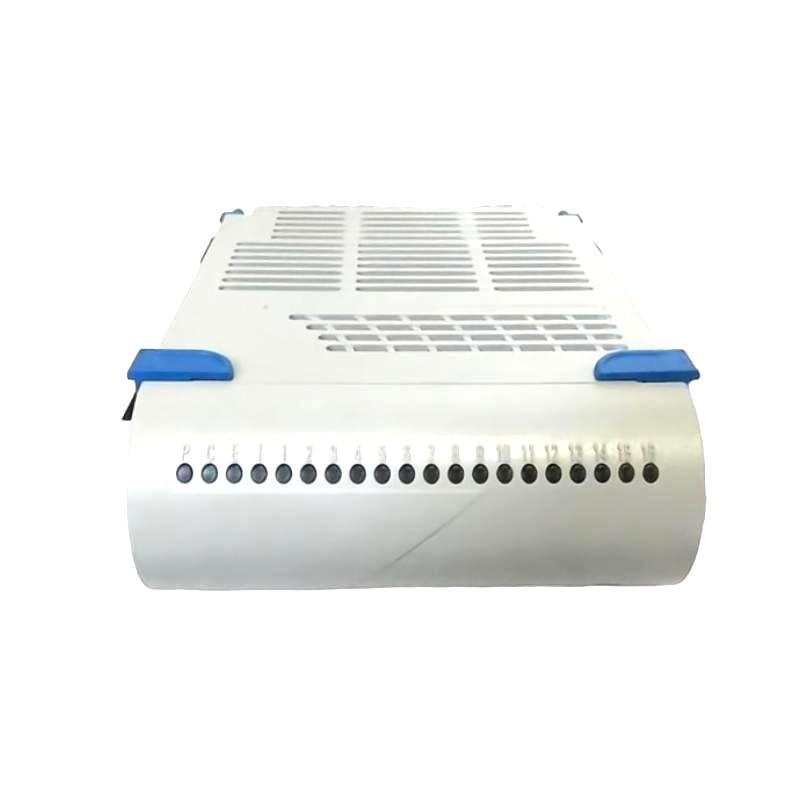

The Ovation 1C31025G02 Digital Output Module combines precision, reliability, and compact design for advanced industrial automation. It allows engineers to control multiple digital outputs efficiently, reducing wiring complexity and enhancing system responsiveness. Ideal for process control, energy management, and industrial automation, this module ensures high performance while minimizing maintenance requirements.

Technical Specifications

Parameter	Specification
Module Type	Digital Output Module
Dimensions (L×W×H)	41 × 159 × 108 mm
Weight	0.6 kg / 1.32 lb
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Output Type	Digital (Relay/Transistor Compatible)
Max Switching Frequency	1 kHz
Protection Features	Overcurrent, Short Circuit, Thermal
Mounting	DIN Rail / Panel Mount
Compatibility	Ovation System Modules

Applications

The Ovation 1C31025G02 Digital Output Module is designed for critical control applications in industrial automation, power plants, and process control systems. It excels in managing high-speed digital signals, providing reliable control outputs for valves, motors, and relays. Perfect for continuous operation environments, it ensures system stability and minimizes downtime.

Advantages

High Reliability: Industrial-grade design guarantees consistent performance in demanding environments.
Precision Control: Fast and accurate digital outputs enhance system responsiveness.
Seamless Integration: Compatible with Ovation systems and other automation platforms.
Robust Safety Features: Built-in protections prevent overloads and signal errors.
Compact Form Factor: 41 × 159 × 108 mm design allows flexible installation in constrained control panels.

Technical FAQs

What types of signals can the module output?
It outputs standard digital signals suitable for relay, transistor, and PLC interfaces.
Is the module hot-swappable?
Yes, it can be replaced without shutting down the entire system.
How does it handle signal interference?
The module is equipped with noise suppression circuitry for clean signal transmission.
What is the maximum switching frequency?
Up to 1 kHz, depending on load and application configuration.
Can it be used in redundant control setups?
Yes, fully compatible with Ovation redundant architectures.
What protections are included against short circuits?
Built-in overcurrent and thermal protection ensures safe operation.
Does it support remote diagnostics?
Yes, system monitoring software can detect faults and operational status.
What is the expected lifespan of the module?
Designed for 10+ years under normal operating conditions.
Are firmware updates required?
Firmware updates are optional and can be applied to enhance functionality.
Is it suitable for harsh industrial environments?
Yes, it operates reliably under standard industrial temperature and humidity ranges.
