Introduction

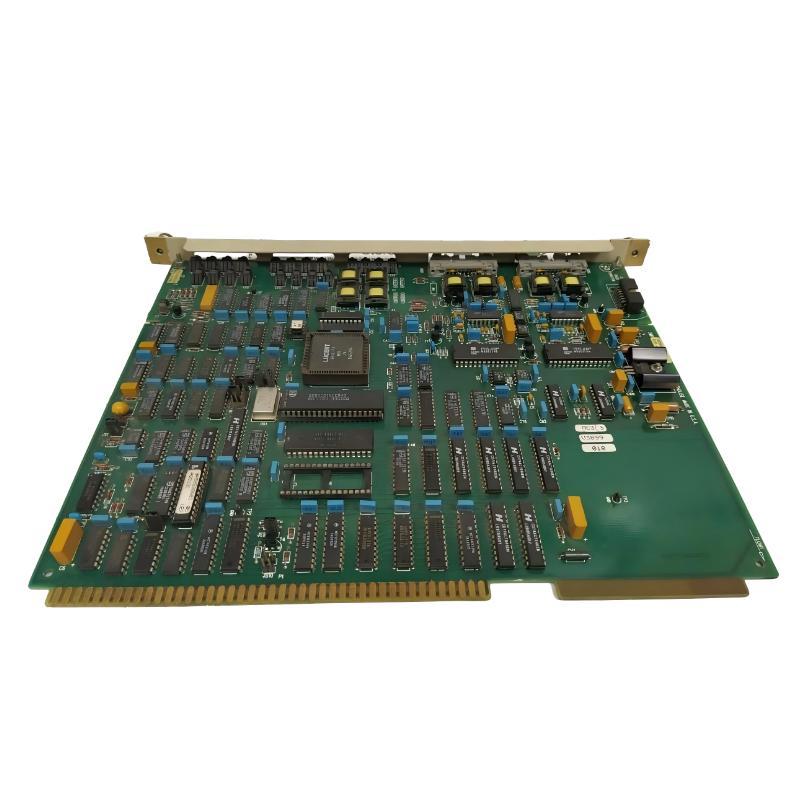

The Ovation 1C31025G06 MRC Board provides high-precision relay control for advanced industrial automation and process management. Combining compact design, robust protection, and seamless integration, this module simplifies control architectures while improving system reliability. Its efficient design reduces panel space requirements, making it an ideal solution for engineers managing complex control networks.

Technical Specifications

Parameter	Specification
Module Type	MRC Board
Dimensions (L×W×H)	41 × 159 × 108 mm
Weight	0.6 kg / 1.32 lb
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 70°C
Output Type	Relay Outputs
Protection Features	Overcurrent, Short Circuit, Thermal
Mounting	DIN Rail / Panel Mount
Compatibility	Ovation System Modules

Applications

The Ovation 1C31025G06 MRC (Modular Relay Control) Board is designed for advanced industrial automation and process control systems. It provides precise relay management and signal routing for complex control architectures, ensuring reliable operation of valves, actuators, and system interlocks. Widely used in power plants, chemical processing, and critical infrastructure, the MRC Board guarantees robust performance under demanding conditions.

Advantages

High Reliability: Industrial-grade components deliver long-term stable performance.
Advanced Relay Management: Enables precise control of multiple outputs simultaneously.
Seamless Integration: Fully compatible with Ovation system architectures for plug-and-play installation.
Built-In Protection: Shields against overcurrent, short circuits, and signal faults.
Compact Form Factor: 41 × 159 × 108 mm design fits efficiently into control panels and racks.

Technical FAQs

What functions does the MRC Board provide?
It manages relay outputs and signal routing for process control applications.
Can the board handle high switching loads?
Yes, it is designed for industrial-grade relay operation with high load tolerance.
Is the board hot-swappable?
Yes, replacement can be performed without shutting down the system.
What protections are included?
Overcurrent, short-circuit, and thermal protections are built-in for safe operation.
Can it be used in redundant control systems?
Fully compatible with Ovation redundant and failover architectures.
Does it support remote diagnostics?
Yes, system monitoring software can detect faults and operational status.
What is the expected operational lifespan?
Designed for 10+ years of reliable operation under normal industrial conditions.
Can it interface with both digital and analog signals?
Primarily designed for relay outputs, it can interact with system digital I/O as part of integrated control.
Is firmware required for operation?
The board operates without firmware; optional updates may enhance system features.
Is it suitable for harsh industrial environments?
Yes, designed to operate reliably in standard industrial temperature and humidity ranges.
