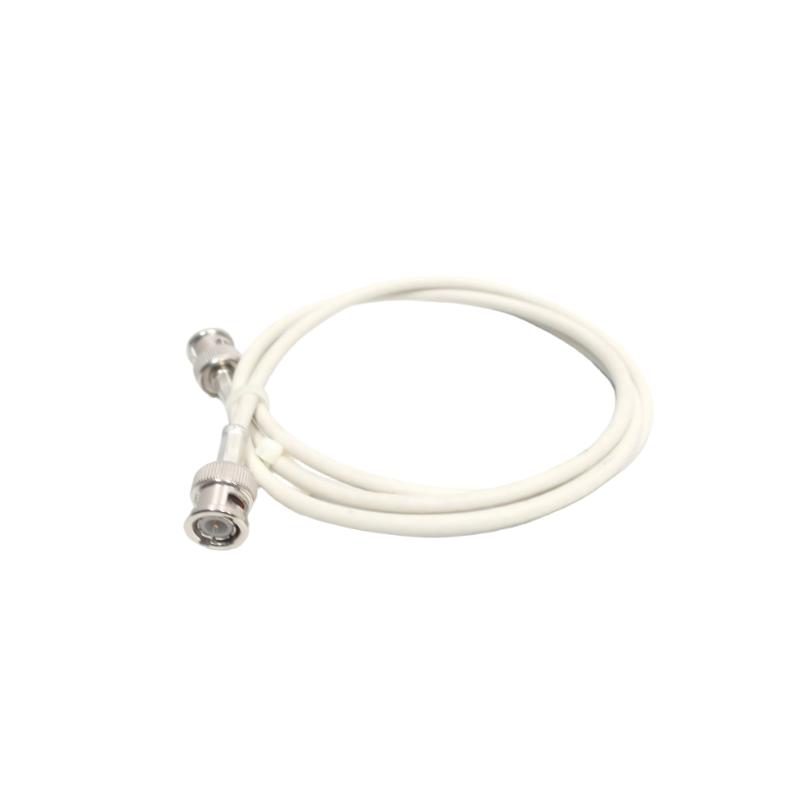

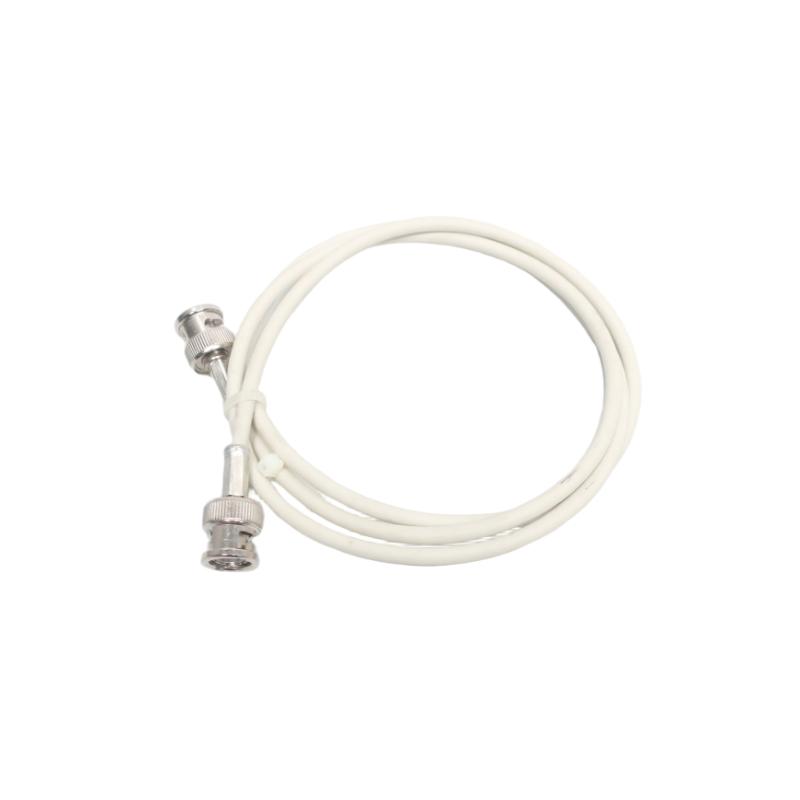

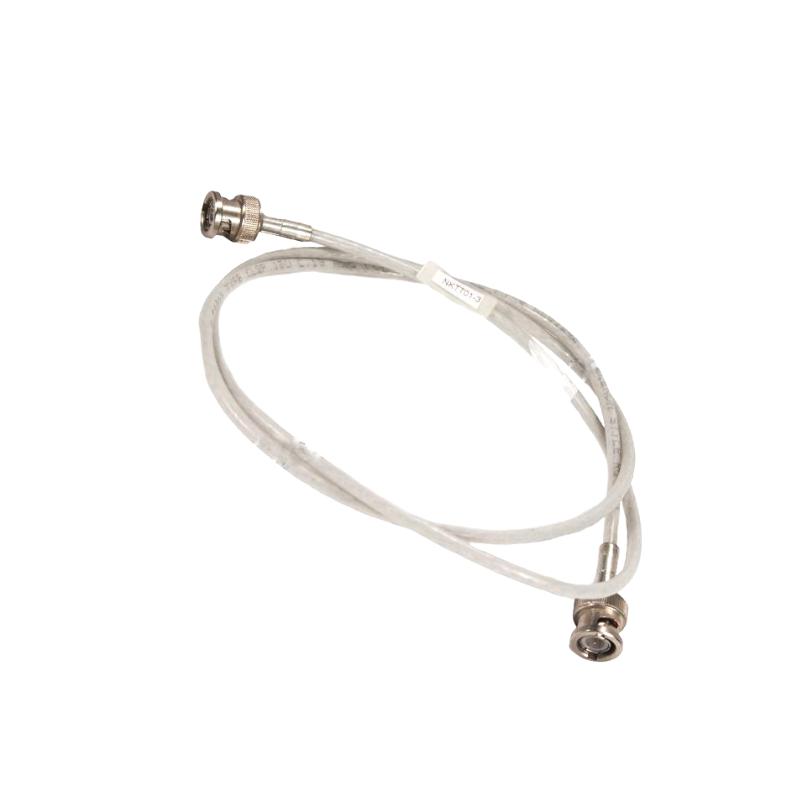

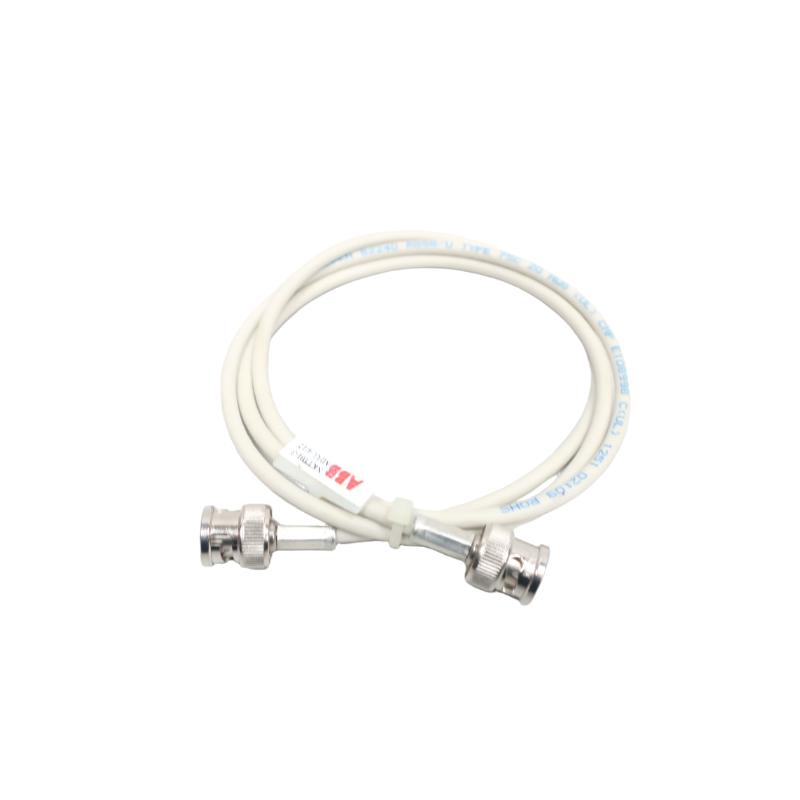

The ABB Bailey NKTT01 Infi-Net Termination Cable is a specialized industrial communication cable developed for the ABB Bailey INFI 90 / Net 90 Distributed Control System (DCS) platform. It is designed to establish reliable direct connections between NTCL01 communication termination units within ABB Infi-Net architectures.
In distributed automation environments, stable network termination and communication continuity are essential for maintaining accurate system-wide data exchange. The NKTT01 provides secure and interference-resistant connectivity for Infi-Net communication loops, helping ensure dependable network performance in mission-critical industrial applications.
Its compact industrial design and robust PVC insulation make it well suited for continuous operation in power plants, petrochemical facilities, and other demanding process automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Infi-Net Termination Cable |
| System Compatibility | ABB Bailey INFI 90 / Net 90 |
| Function | NTCL01 termination unit interconnection |
| Cable Type | PVC-insulated industrial communication cable |
| Signal Transmission | Infi-Net communication signals |
| Connection Role | NTCL01 to NTCL01 direct connection |
| Connector Type | Coaxial connectors on both ends |
| Cable Construction | Industrial-grade insulated cable |
| Installation Environment | Industrial control cabinet |
| Operating Duty | Continuous industrial operation |
ABB technical documentation confirms the NKTT01 is used to connect two NTCL01 termination units within the same cabinet and is available in 3 ft configurations.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 127 mm × 25 mm × 127 mm |
| Weight | ~0.1–0.3 kg |
The compact cable design enables efficient installation in high-density communication cabinets while maintaining reliable signal integrity.
Recommended Related Models
- ABB Bailey NTCL01 Communication Termination Unit
- ABB Bailey NKCL01 Coaxial Adapter Cable
- ABB Bailey NKTL01 Infi-Net Intercabinet Cable
- ABB Bailey NICS01 Communication Slave Module
- ABB Bailey NIMP01 Multi-Function Processor Module
These components are commonly integrated with the NKTT01 to create stable ABB Bailey Infi-Net communication infrastructures.
