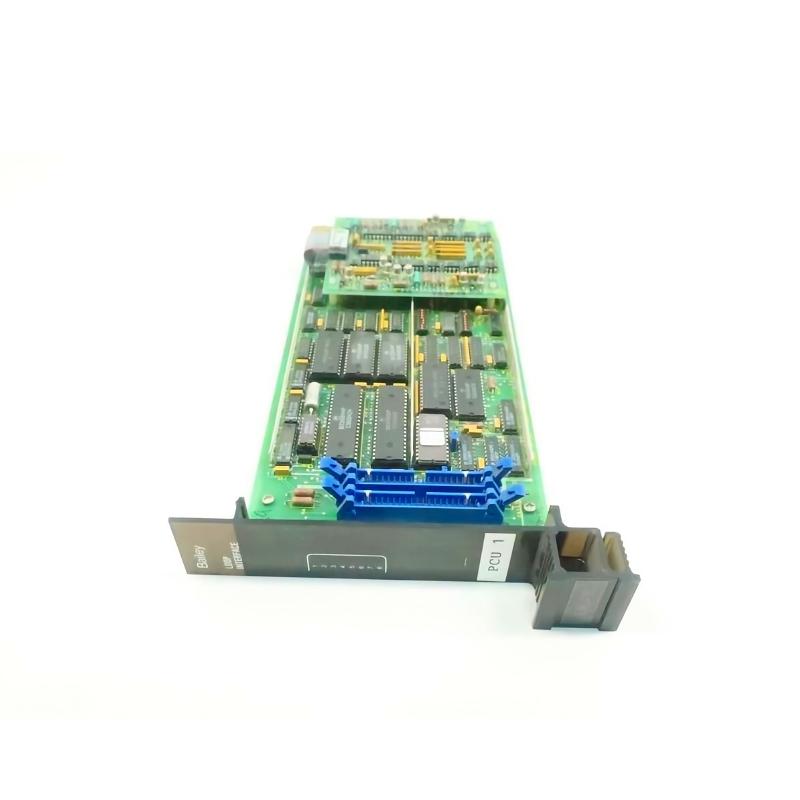

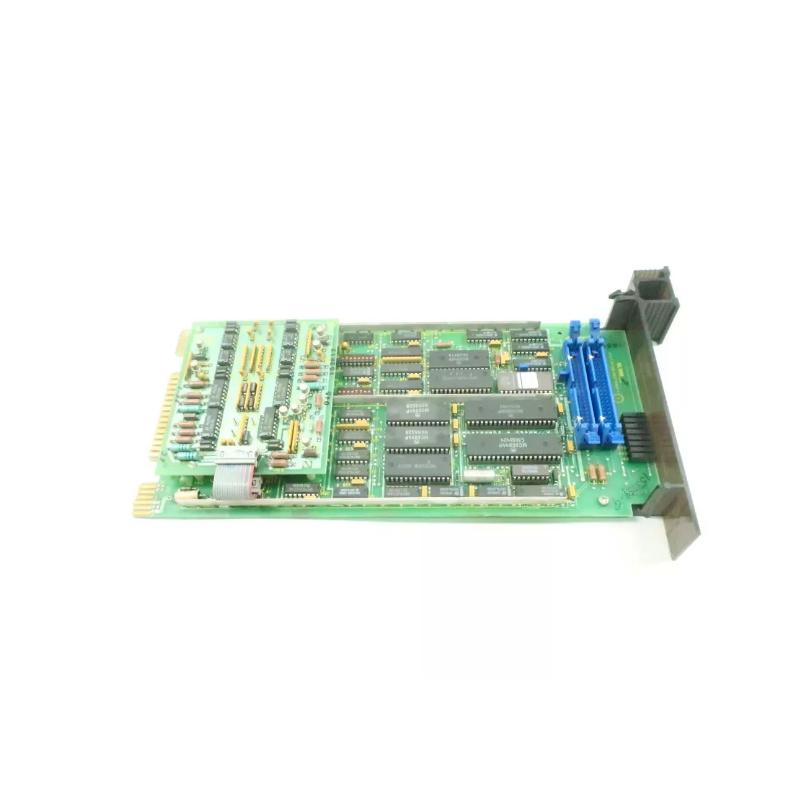

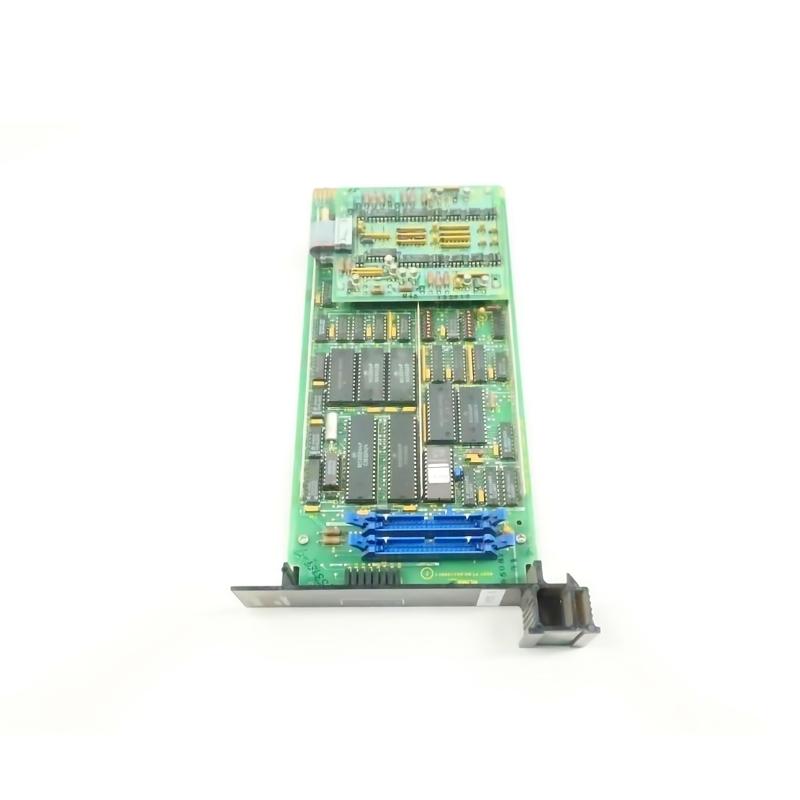

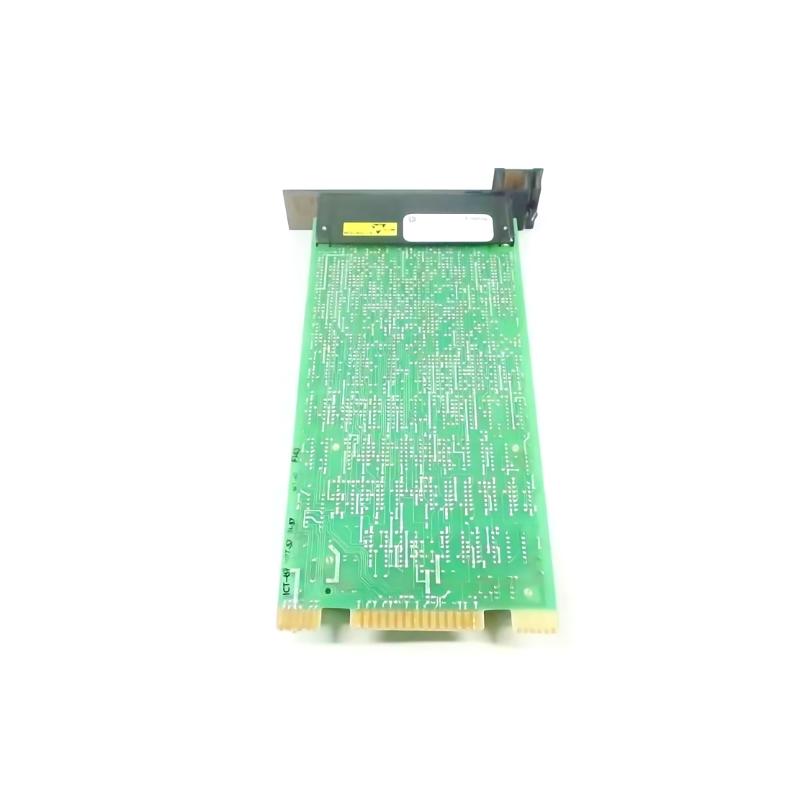

The ABB Bailey NLIM02 Loop Interface Module is a highly dependable communication and control interface component developed for the ABB Bailey INFI 90 Distributed Control System (DCS) platform. Designed to facilitate stable loop communication between process control modules and field devices, the NLIM02 plays a key role in maintaining precise industrial automation performance.
Engineered for demanding industrial environments, this module delivers consistent signal processing, fast communication response, and reliable loop interface functionality for continuous process applications. Its rugged construction and long operational lifespan make it a trusted solution for legacy ABB Bailey systems still operating in critical industries worldwide.
The NLIM02 is widely recognized for its stable integration capabilities and efficient support of distributed process control architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Loop Interface Module |
| Manufacturer | ABB Bailey |
| System Compatibility | ABB Bailey INFI 90 DCS |
| Main Function | Process loop communication interface |
| Communication Type | Distributed loop interface communication |
| Signal Processing | Industrial analog/digital signal handling |
| Mounting Method | Rack-mounted installation |
| Operating Environment | Industrial automation systems |
| Cooling Method | Natural convection |
| Operating Duty | Continuous industrial operation |
The NLIM02 module is designed to support reliable communication between process loops and ABB Bailey distributed control architectures.
Physical Dimensions & Weight
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 355 mm × 35 mm × 310 mm |
| Weight | ~1.6–2.0 kg |
Its compact rack-mounted structure allows efficient installation within high-density industrial control cabinets while maintaining excellent operational stability.
Recommended Related Models
- ABB Bailey NICS01 Communication Slave Module
- ABB Bailey NIMP01 Multi-Function Processor Module
- ABB Bailey NKLS01 Logic System Cable
- ABB Bailey NTAI05 Analog Input Termination Unit
- ABB Bailey IMASI23 Analog Input Module
These products are frequently integrated with the NLIM02 to create scalable and highly reliable process automation systems.
