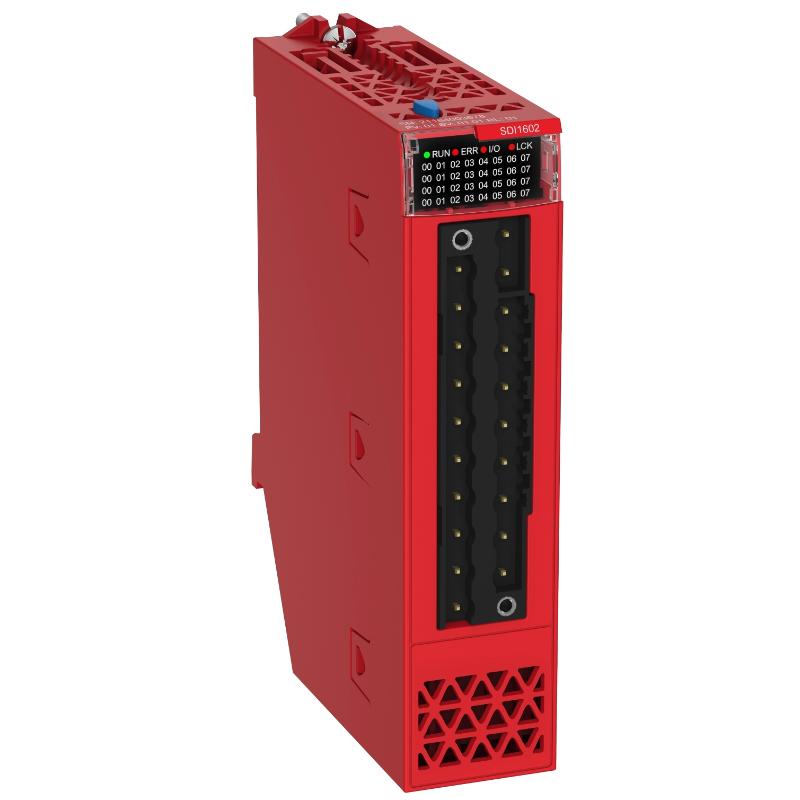

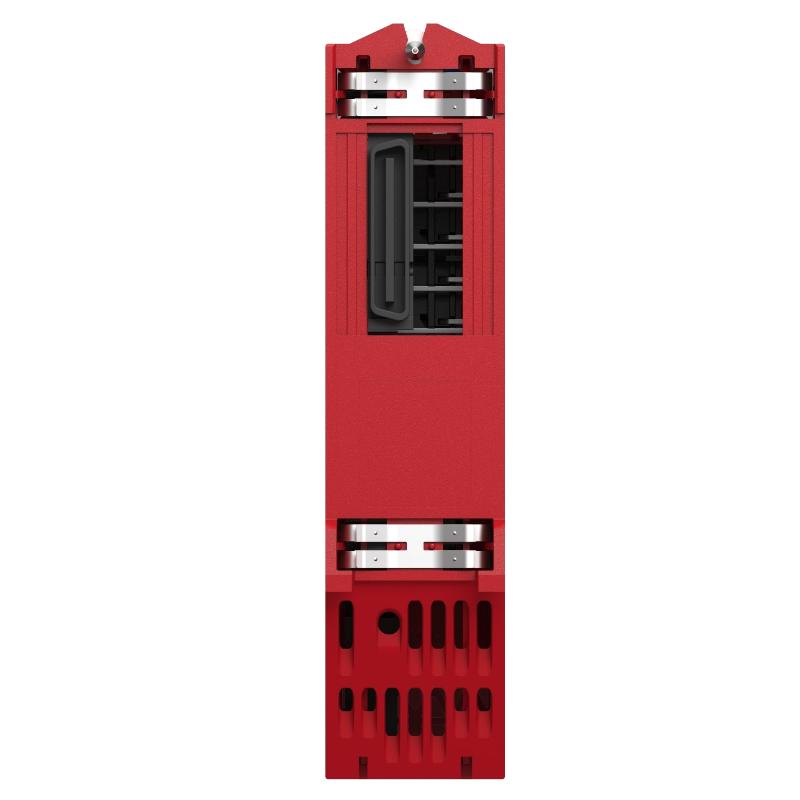

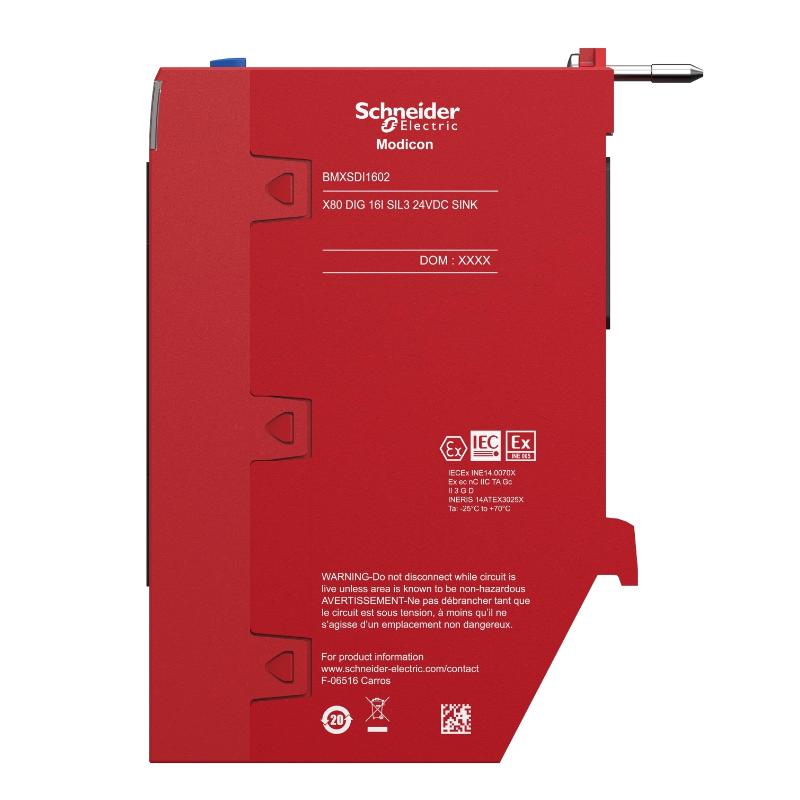

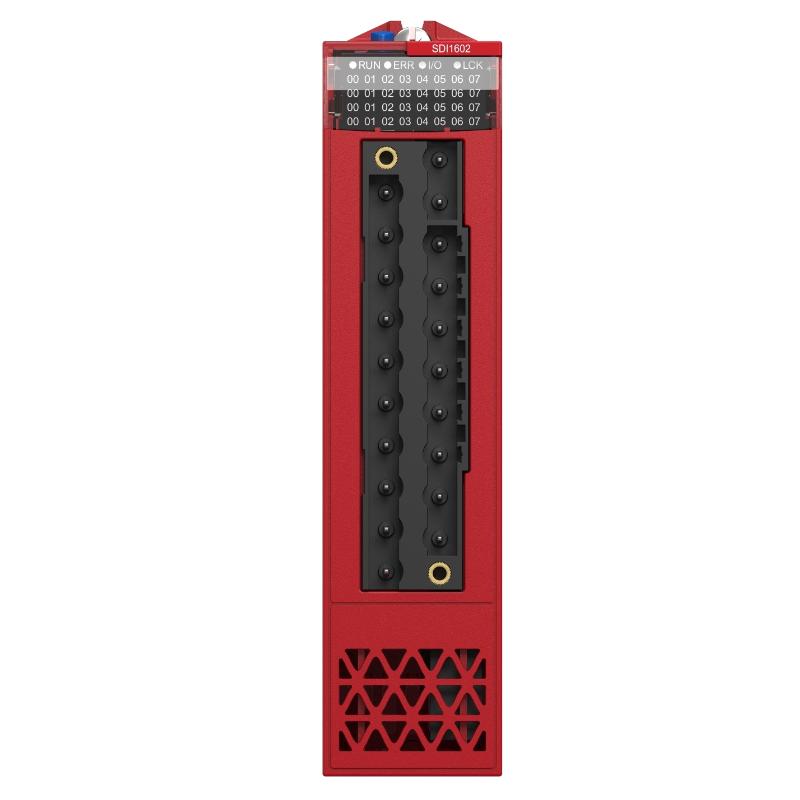

Schneider BMXSDI1602 Discrete Input Module

Applications

• Used in Modicon X80 PLC systems for acquiring 24V DC digital signals from field devices in industrial automation

• Applied in manufacturing lines for monitoring sensors, limit switches, and machine status signals in real time

• Integrated into process control systems to collect distributed discrete inputs for centralized PLC processing

• Used in safety-related automation architectures where reliable signal detection is required for operational control

• Deployed in industrial control cabinets for stable and high-density digital input acquisition

Key Advantages

• 16-channel input design enables efficient high-density signal acquisition in compact PLC systems

• Fast response time (around 6 ms) ensures real-time detection of field device status

• Built-in diagnostics and LED indicators improve maintenance efficiency and fault identification

• Robust industrial design supports stable operation in harsh automation environments

• Seamless compatibility with Modicon X80 platform ensures easy system integration

Technical FAQs

Q1: What is the main function of this module?
It acquires and processes 24V DC discrete input signals for PLC systems.

Q2: How many input channels does it support?
It supports 16 discrete input channels.

Q3: What voltage does it use?
It operates with 24V DC input signals.

Q4: Is it isolated?
It is a non-isolated input module.

Q5: What system is it designed for?
It is designed for Schneider Modicon X80 automation platforms.

Q6: What is its typical response time?
Approximately 6 ms for signal detection.

Q7: Can it be used with sensors?
Yes, it supports 2-wire and 3-wire proximity sensors.

Q8: Does it have diagnostics?
Yes, it includes LED indicators for channel and module status.

Q9: Is it suitable for industrial environments?
Yes, it is built for industrial automation systems.

Q10: Can it operate continuously?
Yes, it is designed for 24/7 industrial use.
