Introduction

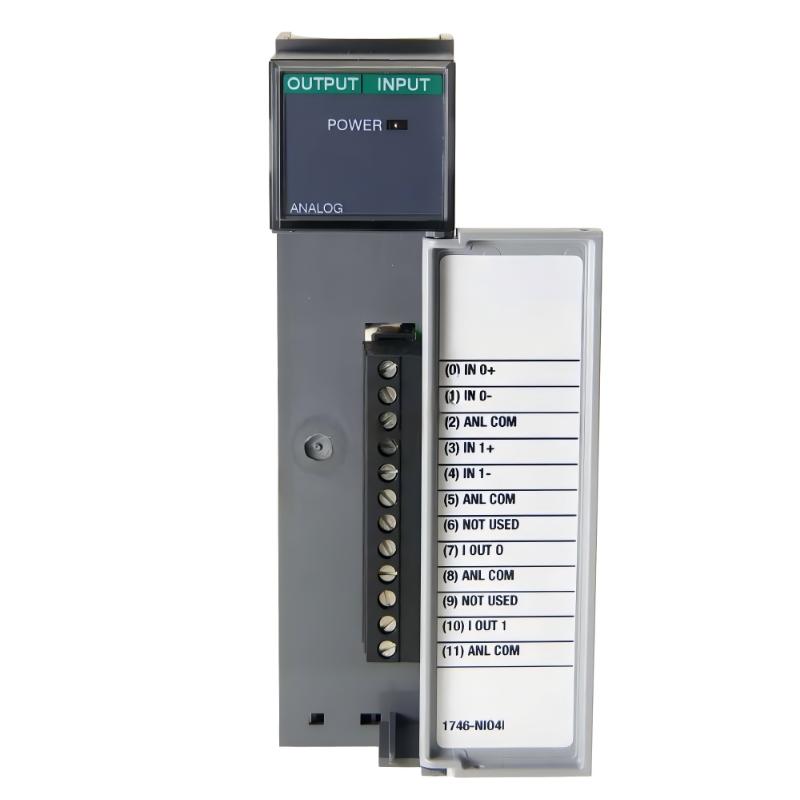

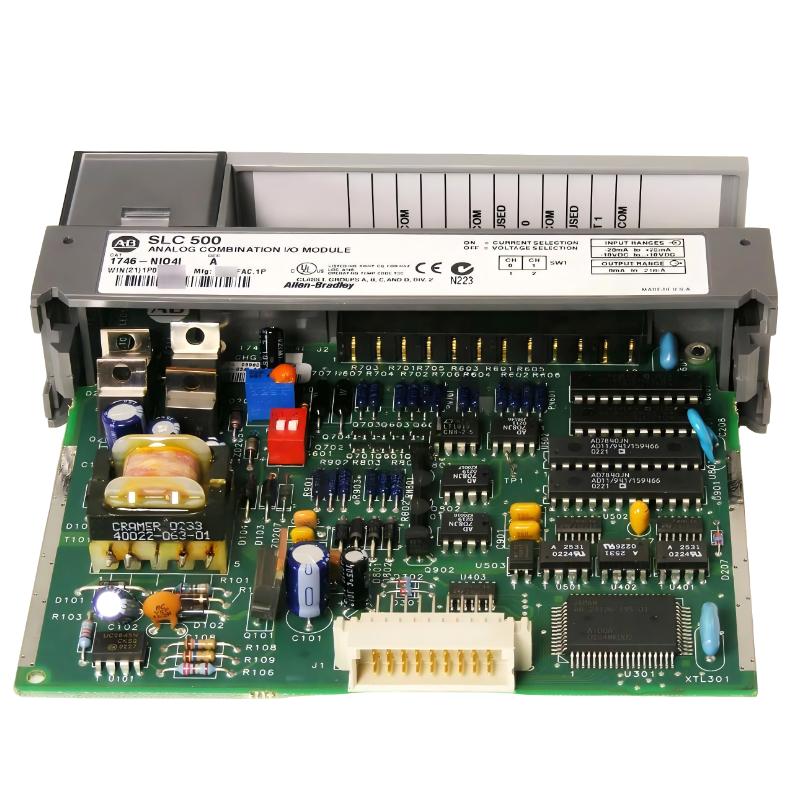

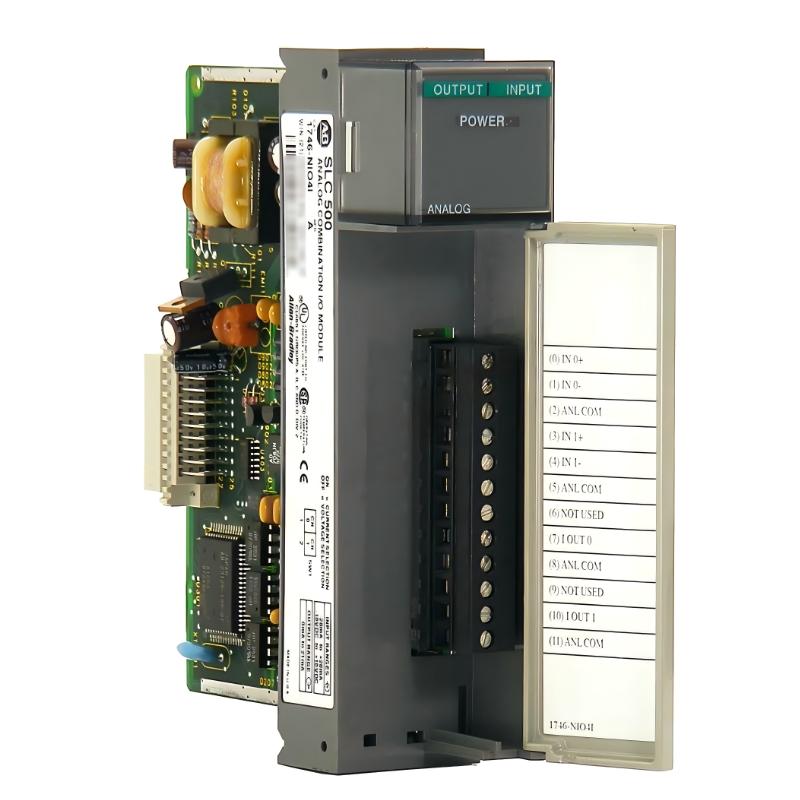

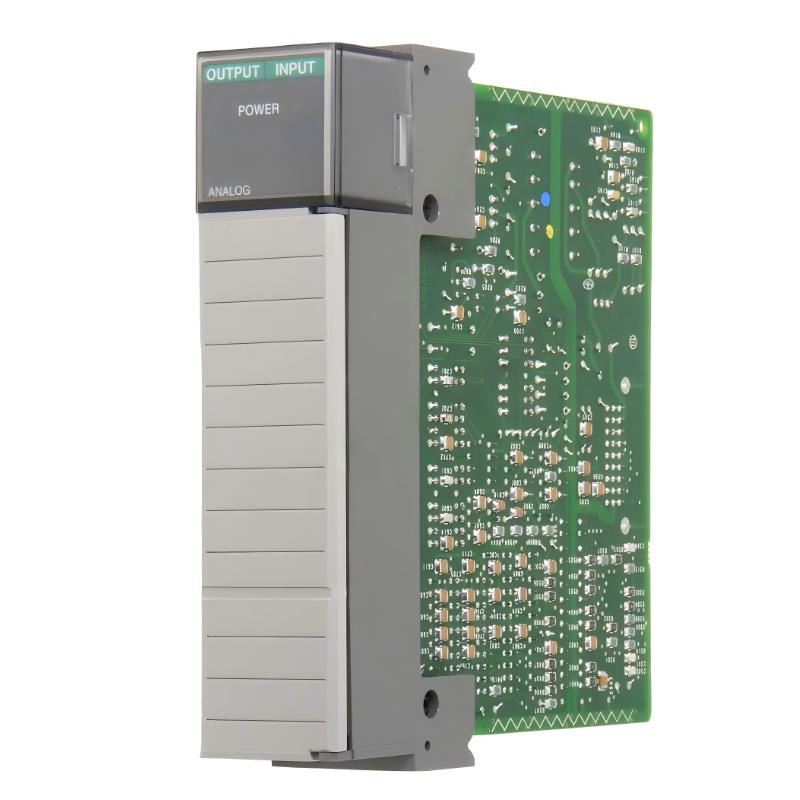

The Allen Bradley 1746-NIO4I Combined Analog I/O Module is a versatile solution for SLC 500 systems, providing both analog input and output functionality in a single, compact module. It allows industrial systems to accurately monitor and control process parameters such as temperature, pressure, and flow. Built for durability in industrial environments, the 1746-NIO4I ensures reliable signal processing while reducing the number of modules required, saving space and simplifying system design.

Technical Specifications

Parameter	Specification
Module Type	Combined Analog I/O Module
Model Number	1746-NIO4I
Dimensions (L×W×H)	144.5 × 34.6 × 130.18 mm
Weight	0.45 kg / 0.99 lb
Functionality	Analog input and output for SLC 500 systems
Channels	Multiple input and output channels
Signal Types	Voltage and current
Mounting	Allen Bradley SLC 500 Rack
Operating Temperature	0°C to 55 °C
Storage Temperature	-20°C to 70 °C
Compatibility	Allen Bradley SLC 500 Controller & I/O modules

Applications

The Allen Bradley 1746-NIO4I Combined Analog I/O Module is designed to integrate both analog input and output capabilities in a single module for SLC 500 systems. It is widely used in industrial automation, process control, and utility management to streamline system design and improve signal handling efficiency. This module is ideal for applications requiring compact I/O solutions with precise analog signal measurement and control.

Advantages

Dual-Functionality: Combines analog input and output in one compact module, reducing cabinet space.
Reliable Signal Processing: Accurately handles analog process data for control and monitoring.
Industrial-Grade Design: 144.5 × 34.6 × 130.18 mm and 0.45 kg / 0.99 lb, durable and compact for SLC 500 racks.
Seamless SLC 500 Integration: Fully compatible with Allen Bradley SLC 500 controllers.
Simplified Maintenance: Modular design allows easy installation, replacement, and testing.

Technical FAQs

What is the main function of the 1746-NIO4I?
To provide both analog input and output capabilities for SLC 500 systems.
Can it handle multiple analog signals simultaneously?
Yes, it supports several analog input and output channels.
Is it suitable for industrial environments?
Yes, it is designed for vibration, temperature fluctuations, and electrical noise.
Does it require configuration?
Minimal setup is required within the SLC 500 controller configuration software.
Can it replace separate input and output modules?
Yes, it combines analog input and output functions into a single module.
Does it support diagnostics?
Yes, it provides status monitoring and error detection for all channels.
Can it improve control accuracy?
Absolutely, by providing precise analog measurements and outputs.
Is maintenance complicated?
No, the compact, modular design allows quick replacement and testing.
Can it be mounted in standard SLC 500 racks?
Yes, it is designed to fit standard SLC 500 racks.
What signal types are supported?
Voltage and current analog signals for both input and output channels.
