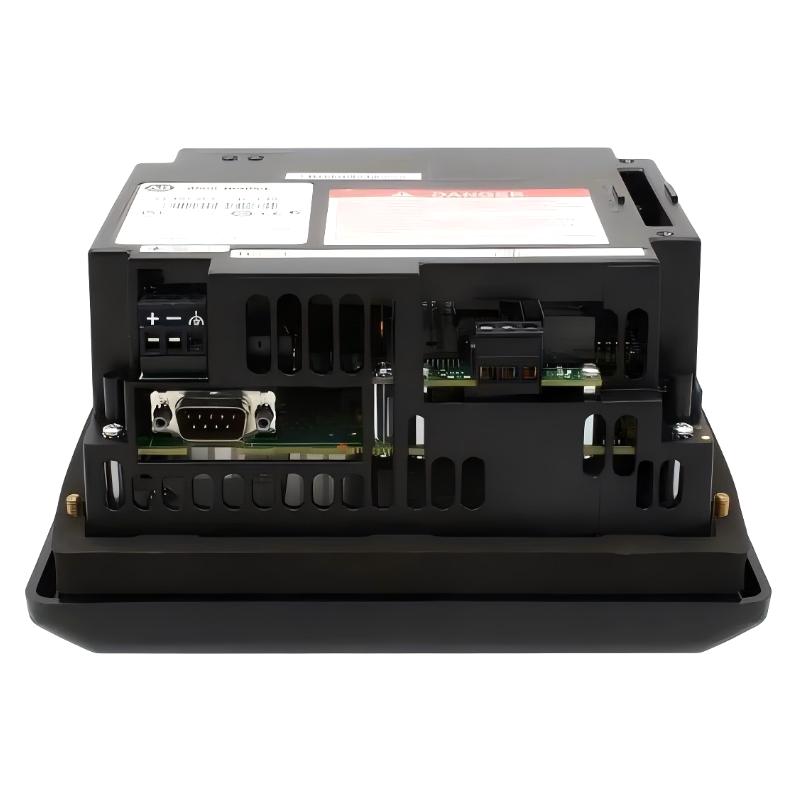

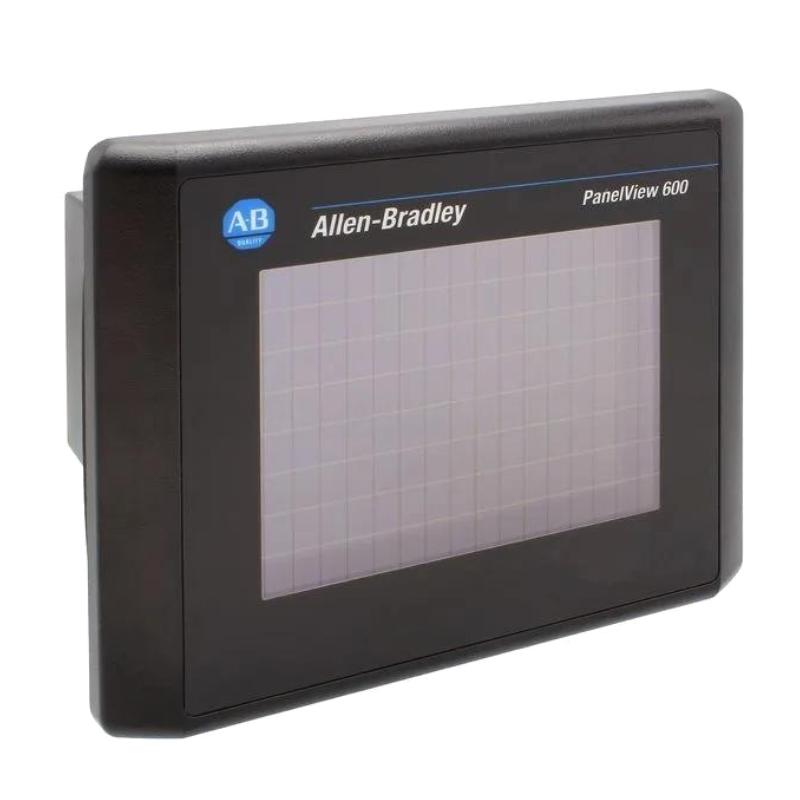

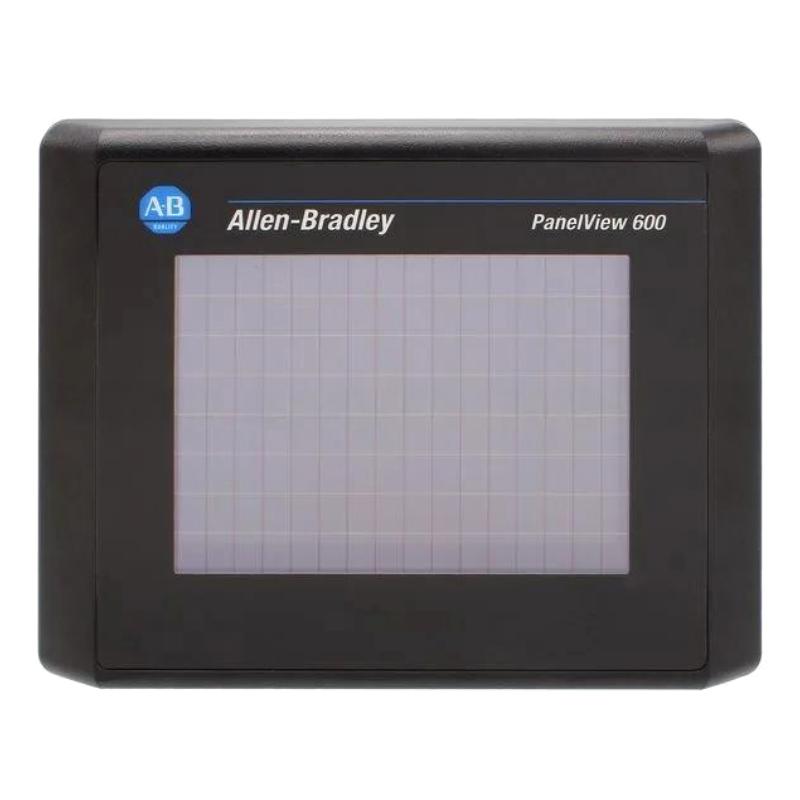

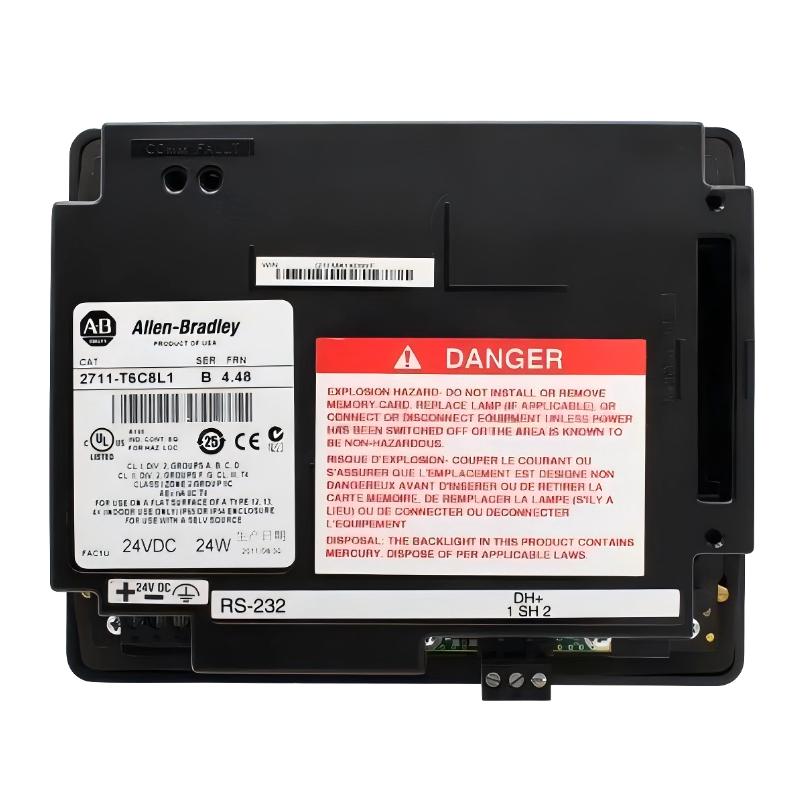

Allen Bradley 2711-T6C8L1 PanelView 600 Operator Interface
Allen Bradley 2711-T6C8L1 PanelView 600 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711-T6C8L1 Product Origin:USA Product Dimensions:185 x 96 x 152 mm Product Weight:1.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 2711-T6C8L1 PanelView 600 Operator Interface is a compact industrial HMI designed for machine-level control and process visualization. It provides operators with real-time access to PLC data, enabling efficient monitoring and control of automated systems.
This model is part of the PanelView Standard series and is widely used in established industrial environments where compatibility with legacy Allen-Bradley PLC networks is required. Its compact size, reliable touchscreen interface, and proven communication methods make it suitable for long-term use in industrial automation systems.
Technical Specifications
Parameter
Description
Model
Allen-Bradley 2711-T6C8L1
Product Type
Operator Interface (HMI)
Series
PanelView 600 Standard
Display Size
6-inch color touchscreen
Resolution
320 × 240
Input Type
Resistive touchscreen
Communication Ports
DH+, RS-232
Programming Software
PanelBuilder32
Power Supply
18–32 V DC
Application Memory
Application dependent
Mounting Type
Panel mount
Operating Environment
Industrial automation systems
Dimensions
185 × 96 × 152 mm
Weight
1 kg
Recommended Related Models
Model
Product Name
Allen-Bradley 2711-T6C10L1
PanelView 600 Larger Display Variant
Allen-Bradley 2711P-T6C20D8
PanelView Plus 600 HMI Upgrade
Allen-Bradley 2711P-T7C4A8
PanelView Plus 700 Terminal
Allen-Bradley 1769-L30ERMS
Compact GuardLogix Controller
Popular Related Models
Model
Product Name
Allen-Bradley 2711P-T10C4D8
PanelView Plus 1000 HMI
Allen-Bradley 2711P-T12C4A8
PanelView Plus 1250 HMI
Allen-Bradley 1756-L73
ControlLogix Processor Module
Allen-Bradley 1734-IE4C
POINT I/O Analog Input Module
Applications
• Industrial machine control and visualization
Used as an operator interface to display real-time machine status, alarms, and process variables in production equipment such as conveyors, packaging machines, and assembly systems.
• PLC-based control system operation
Provides a user-friendly interface for interaction with PLC systems, enabling start/stop control, parameter adjustments, and fault acknowledgment.
• Manufacturing line monitoring stations
Displays production data, cycle status, and operational messages to support efficient plant floor supervision.
• Legacy automation system integration
Commonly deployed in existing installations using older Allen-Bradley PLC networks where system continuity is required.
• Process and utility system monitoring
Supports visualization of industrial processes such as water treatment, pumping systems, and auxiliary plant operations.
• Operator control panels in compact machines
Ideal for small control panels where space-saving HMI solutions are required.
Key Advantages
• 6-inch color touchscreen display
Provides clear process visualization with intuitive operator interaction.
• Proven PanelView Standard platform
Widely used and field-tested in industrial automation environments for long-term stability.
• DH+ and RS-232 communication support
Ensures compatibility with legacy Allen-Bradley PLC systems.
• Compact panel-mount design
Easy integration into machine control cabinets and operator panels.
• Reliable industrial operation
Designed for continuous use in demanding industrial environments.
• Simple configuration workflow
Application development supported through PanelBuilder32 software.
Technical FAQs
Q1: What is the main function of this device?
A: It is an HMI used to monitor and control PLC-based industrial systems.
Q2: What PLC systems does it support?
A: It supports PLC-5, SLC 500, and compatible Allen-Bradley controllers.
Q3: What communication protocols are available?
A: It supports DH+ and RS-232 serial communication.
Q4: Is it touchscreen-based?
A: Yes, it uses a 6-inch resistive touchscreen interface.
Q5: What software is used for programming?
A: PanelBuilder32 is used for application development.
Q6: Does it support Ethernet communication?
A: No, it is designed for legacy serial and DH+ networks.
Q7: Is it still widely used today?
A: It is mainly used in existing legacy industrial installations.
Q8: Can it display alarms and process data?
A: Yes, it supports real-time alarm and process visualization.
Q9: Is it suitable for modern automation systems?
A: It is primarily used in older or maintained legacy systems.
Q10: What type of environments is it designed for?
A: Industrial environments with continuous operation requirements.
