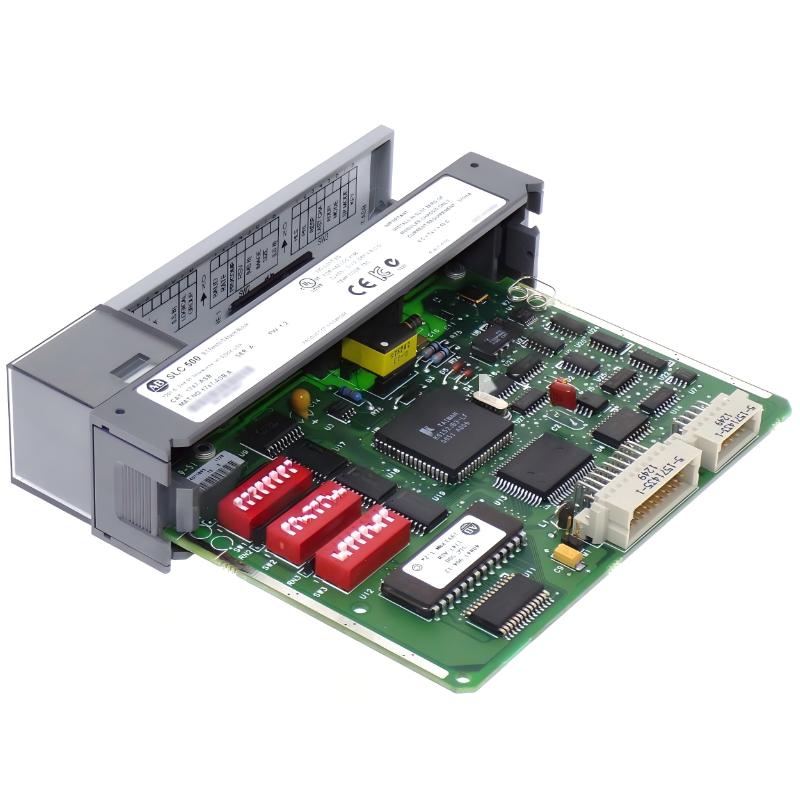

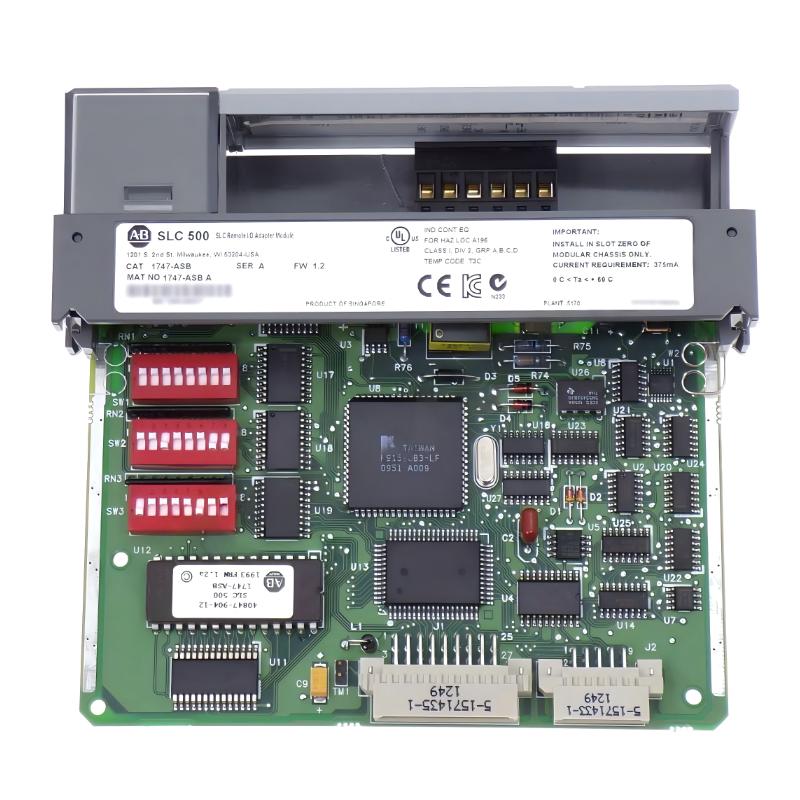

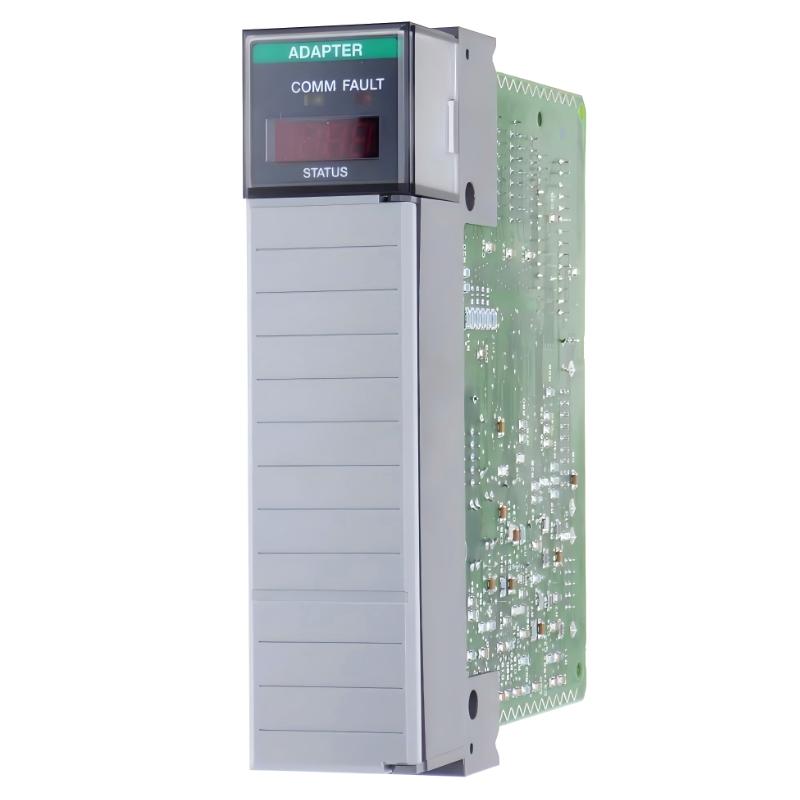

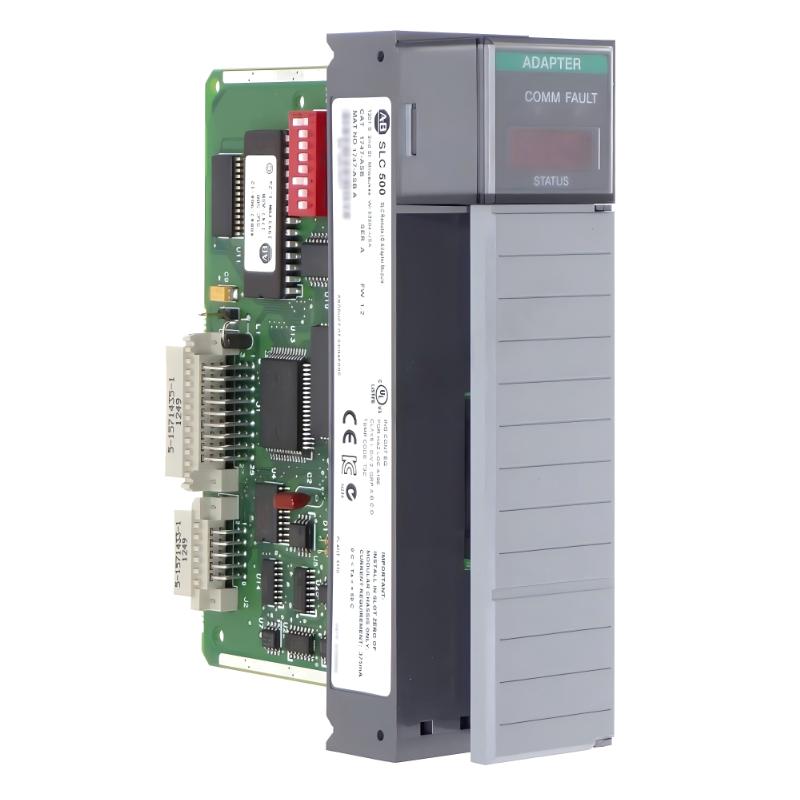

Allen Bradley 1747-ASB SLC 500 Remote I/O Adapter Module

Applications

• Connects remote I/O devices to the main SLC 500 PLC for distributed control.

• Facilitates communication between central processors and remote input/output modules.

• Integration in manufacturing, process automation, and industrial control systems.

• Enables flexible system expansion without relocating the central PLC.

• Supports remote monitoring and control in large-scale industrial operations.

Key Advantages

• Provides seamless communication between SLC 500 processors and remote I/O modules.

• Compact design fits standard SLC 500 chassis, saving panel space.

• Supports reliable and high-speed data transfer over standard communication networks.

• Simplifies installation and reduces wiring complexity in distributed systems.

• Rugged construction ensures consistent operation in industrial environments.

Technical FAQs

1. What is the primary function of the 1747-ASB module?
It serves as a Remote I/O Adapter, linking SLC 500 processors to distributed I/O modules.

2. Is it compatible with all SLC 500 PLCs?
Yes, it integrates seamlessly with the SLC 500 series processors and chassis.

3. How is the module mounted?
It is designed to fit standard SLC 500 chassis for secure and simple installation.

4. Can it support multiple remote I/O racks?
Yes, it allows multiple remote racks to be connected for expanded system control.

5. Does it support high-speed communication?
Yes, it provides fast and reliable data transfer between central and remote I/O.

6. Can it operate in harsh industrial environments?
Yes, it is built to withstand vibration, dust, and electromagnetic interference.

7. Are diagnostics available?
Yes, built-in LEDs indicate module status and communication health.

8. Is additional configuration required before operation?
Minimal configuration is needed; the module is plug-and-play within the SLC 500 system.

9. Does it reduce wiring complexity?
Yes, it centralizes remote I/O communication, minimizing long wiring runs.

10. What is the operating temperature range?
The module operates reliably between 0°C and 60°C.
