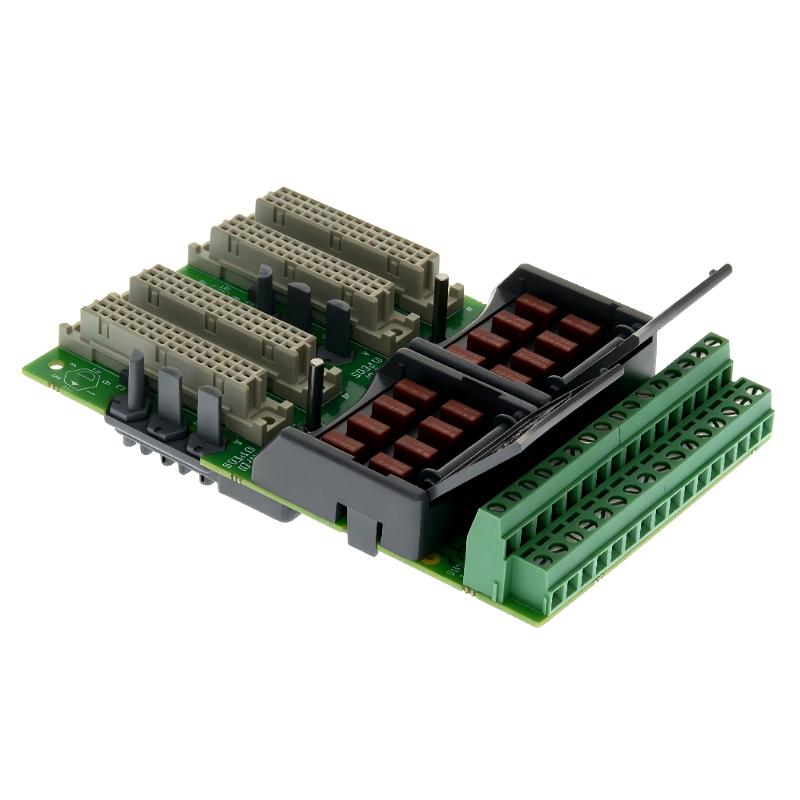

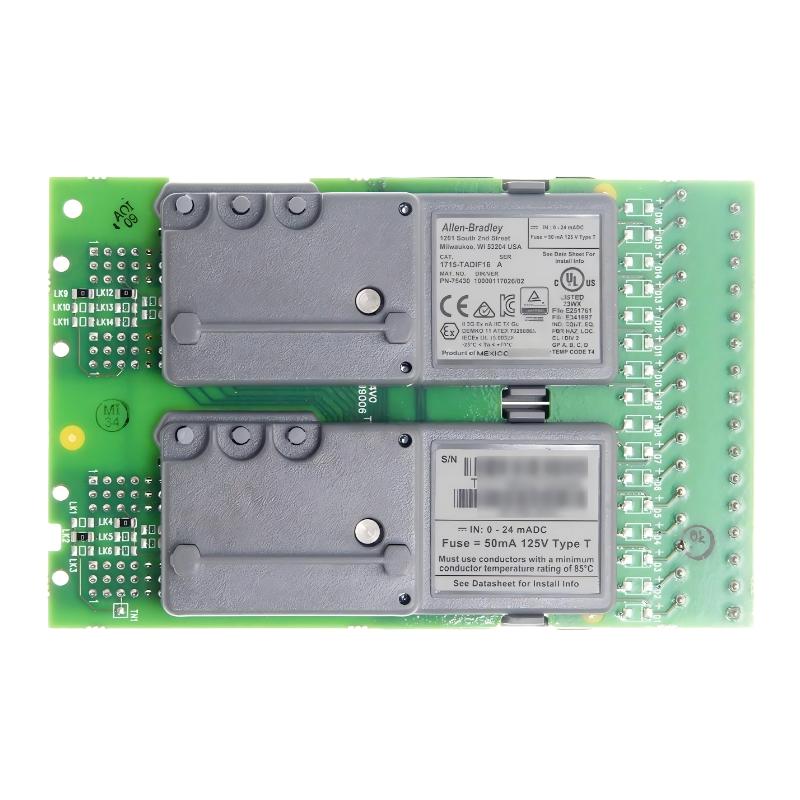

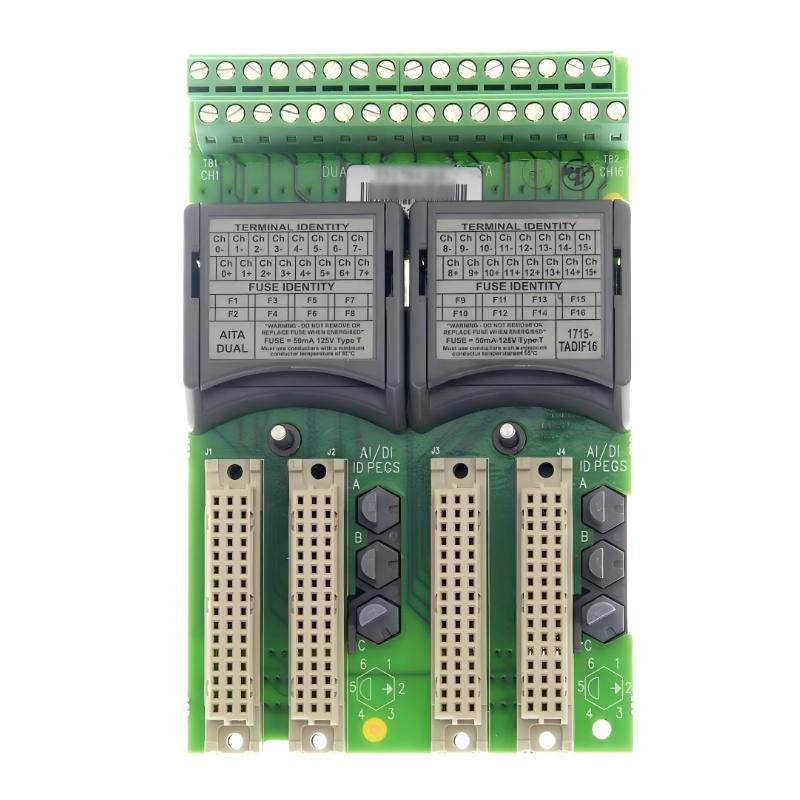

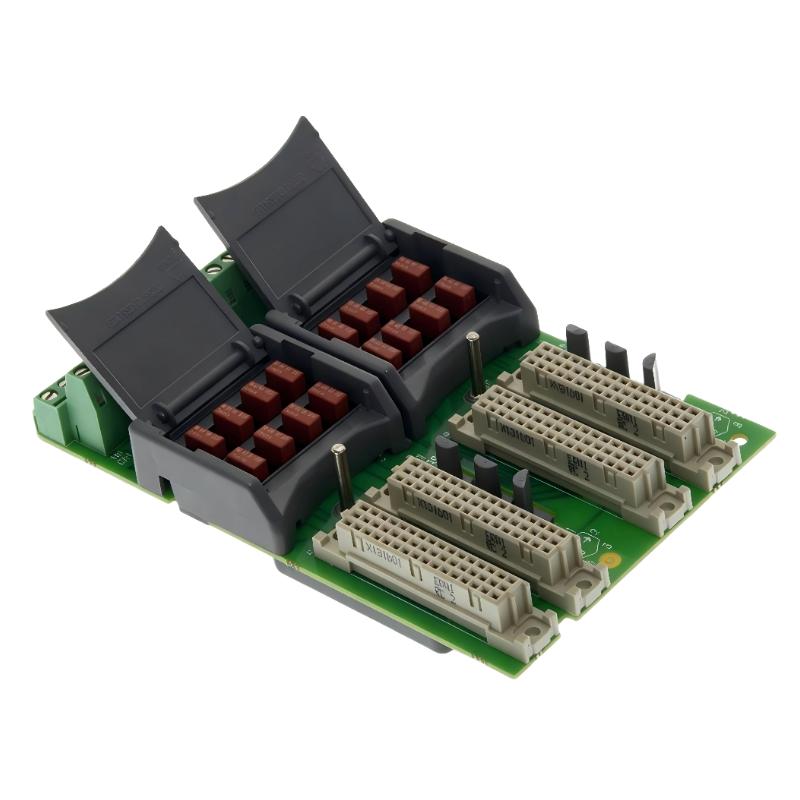

Allen Bradley 1715-TADIF16 Redundant I/O Termination Components

Applications

• Redundant analog input signal termination for 1715-IF16 I/O modules in high-reliability control systems

• Process automation systems requiring duplex I/O wiring for fault-tolerant architectures

• Oil & gas and petrochemical plants using redundant ControlLogix-based safety and control systems

• Power generation facilities requiring high-availability analog signal acquisition

• Critical manufacturing lines where downtime protection and signal redundancy are required

• Distributed control systems integrating redundant field wiring into centralized PLC architectures

• Industrial instrumentation systems requiring structured and shielded analog signal termination

• Retrofit upgrades for legacy redundant I/O infrastructure in industrial plants

Key Advantages

• Designed specifically for redundant (duplex) analog input signal termination in FLEX/1715 systems

• 16-point high-density termination structure reduces panel wiring complexity

• Improves system reliability by supporting dual-channel redundant signal paths

• DIN-rail mounted compact design simplifies cabinet installation and layout

• Supports structured wiring separation between field devices and I/O modules

• Enhances maintenance efficiency by enabling quick module replacement without rewiring

• Industrial-grade construction ensures stable operation in harsh environments

• Compatible with 1715-IF16 analog input modules for seamless system integration

Technical FAQs

Q1: What is the main function of this module?
It provides redundant termination for 1715 analog input I/O systems.

Q2: Is this an active electronic module?
No, it is a passive termination assembly used for wiring and signal distribution.

Q3: What type of systems does it support?
It is designed for Allen-Bradley 1715 redundant I/O architectures.

Q4: How many channels does it support?
It supports 16-point analog input termination.

Q5: Is it used for safety systems?
It is commonly used in high-availability and redundancy-focused industrial systems.

Q6: Does it require configuration in PLC software?
No, it is a hardware termination component only.

Q7: Can it be replaced without rewiring field devices?
Yes, it is designed for fast replacement in redundant configurations.

Q8: Is it suitable for harsh industrial environments?
Yes, it is designed for industrial control cabinet conditions.

Q9: What improves system reliability when using it?
Redundant signal paths reduce single-point failure risk.

Q10: Does it work alone?
No, it must be used with compatible 1715 I/O modules such as 1715-IF16.
